Parallel Light Stereo Microscope - ISM-ZS200

Save 25%

Model no: ISM-ZS200
Price:
Rs. 406,989 Rs. 542,649

Tax included Shipping calculated at checkout

Description

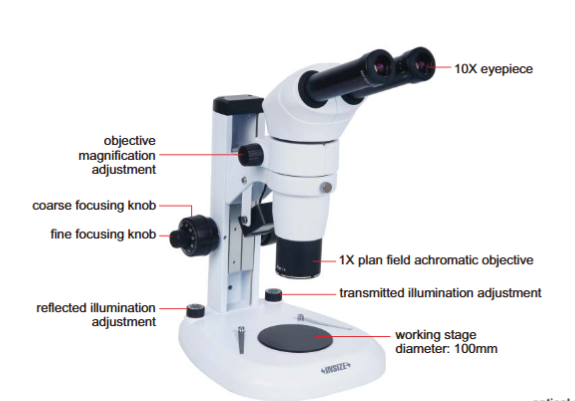

Features:-

  • Infinity parallel optical system and 20° inclined optical tube reduce fatigue
  • Coaxial illumination is optional for deep holes which cannot be observed by ring light
  • Aperture diaphragm is optional for large depth of field and high quality image

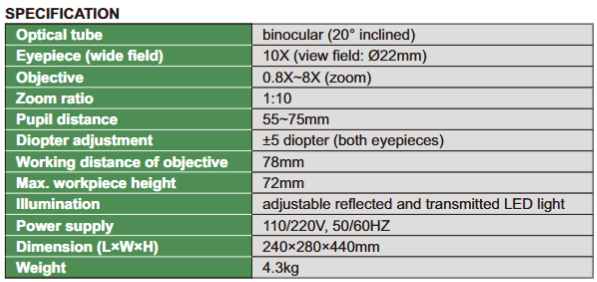

Specification Details
Optical tube binocular (20° inclined)
Eyepiece (wide field) 10X (view field: Ø22mm)
Objective 0.8X~8X (zoom)
Zoom ratio 1:10
Pupil distance 55~75mm
Diopter adjustment ±5 diopter (both eyepieces)
Working distance of objective 78mm
Max. workpiece height 72mm
Illumination adjustable reflected and transmitted LED light
Power supply 110/220V, 50/60HZ
Dimension (L×W×H) 240×280×440mm
Net weight 4.3kg

Standard Delivery:

  • Main unit - 1 pc
  • WF10X eyepiece - 2 pcs
  • Ø100mm glass plate - 1 pc
  • Ø100mm white/black plate - 1 pc
  • Anti-dust cover - 1 pc

Optional Accessory:

Item Description Code
Objective 0.5X achromatic objective (focus distance: 186mm)* ISM-ZS200-OB05X
2X plan achromatic objective (focus distance: 32.5mm) ISM-ZS200-OB2X
0.5X plan apochromatic objective (focus distance: 126mm)* ISM-ZS200-APO05X
Eyepiece WF15X (view field: Ø16mm) ISM-ZS200-EP15X
WF20X (view field: Ø12mm) ISM-ZS200-EP20X
WF30X (view field: Ø20mm) ISM-ZS200-EP30X
Sleeve for objective - ISM-ZS200-ADAPTER

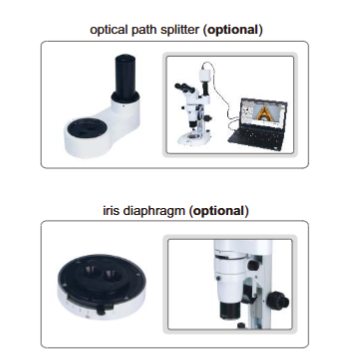

Iris diaphragm - ISM-ZS200-IRD
Optical path splitter - ISM-ZS200-OBS

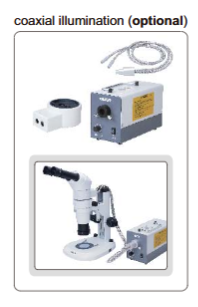

Coaxial illumination - ISM-ZS200-COAXIAL
Digital camera** - ISM-CM63
Camera adapter 0.75X - ISM-AD-0D75
Weld seam measurement software and camera** - ISM-MAS300

*0.5X auxiliary objective must be used with ISM-ZS200-ADAPTER.
**Digital camera or Weld seam measurement software and camera must be used with optical path splitter ISM-ZS200-OBS and camera adapter ISM-AD-0D75.
