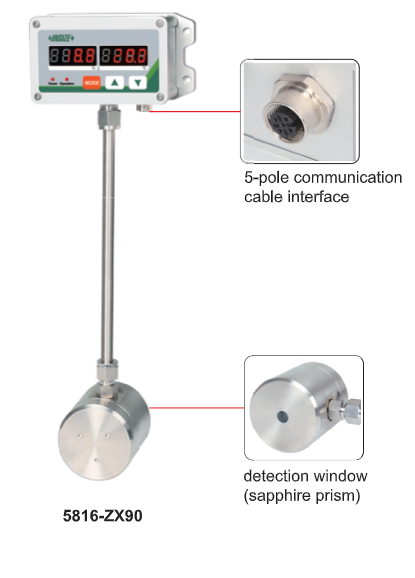

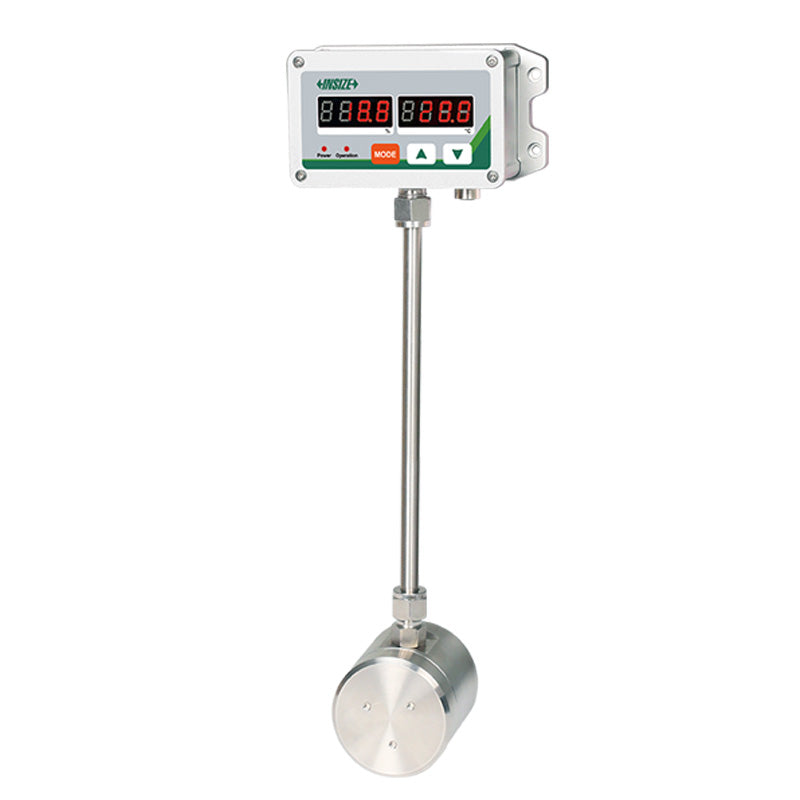

Online Refractometers - 5816

Save 25%

Model no.: 5816-ZX30
Price:
Rs. 221,659 Rs. 295,549

Tax included Shipping calculated at checkout

Description

Features:-

  • Based on the principle of light refraction and total reflection, measure the concentration of liquid in real time
  • Plug-in mounting is suitable for open objects such as tanks, troughs, and vessel walls
  • Directly immersed in liquid, fast detection, no need to remove liquid
  • Rods and probes are made of 316 stainless steel, sizes can be customized
  • Automatic temperature compensation
  • Probe protection level: IP67

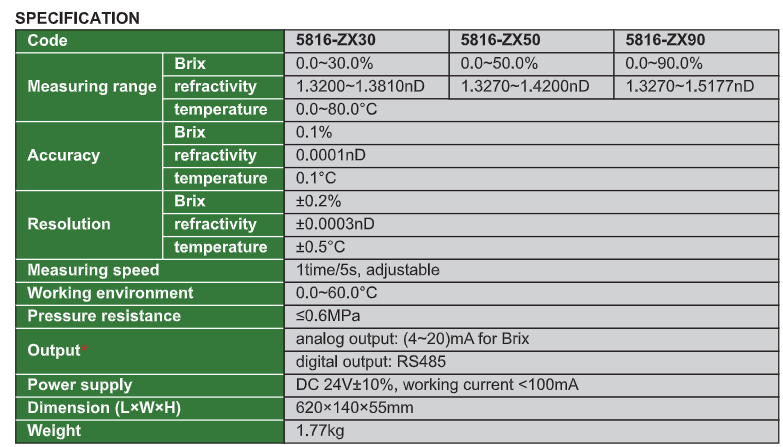

Specification:-

Code 5816-ZX30 5816-ZX50 5816-ZX90
Measuring range Brix 0.0~30.0% 0.0~50.0% 0.0~90.0%
refractivity 1.3200~1.3810nD 1.3270~1.4200nD 1.3270~1.5177nD
temperature 0.0~80.0°C
Accuracy Brix 0.1%
refractivity 0.0001nD
temperature 0.1°C
Resolution Brix ±0.2%
refractivity ±0.0003nD
temperature ±0.5°C
Measuring speed 1time/5s, adjustable
Working environment 0.0~60.0°C
Pressure resistance ≤0.6MPa
Output* analog output: (4~20)mA for Brix
digital output: RS485
Power supply DC 24V±10%, working current <100mA

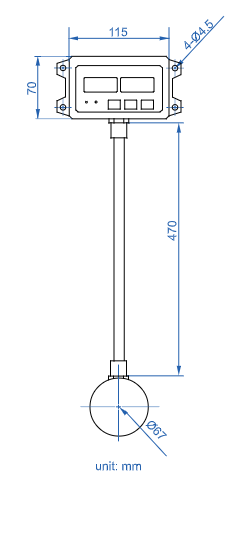

Dimension (L×W×H) 620×140×55mm
Weight 1.77kg

*Customizable output mode

Standard Delivery:-

Main unit 1pc

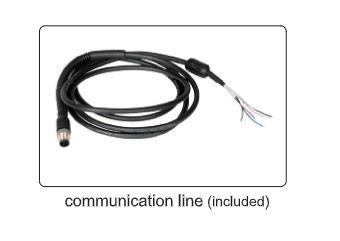

Communication line 1pc
