Motorized Digital Rockwell Hardness Tester(Dolphin Nose Type) - HDT-DM

Save 25%

Size: HDT-DM290
Price:
Rs. 2,233,500 Rs. 2,970,555

Tax included Shipping calculated at checkout

Description

Features:-

  • PRICES ON REQUEST
  • Full closed-loop precise control, real-time monitoring of test force, greatly increase the accuracy
  • Dolphin-nose structure indenter, more measuring space
  • Measurements on 30 Rockwell and Superficial Rockwell scales
  • Convertible to various hardness standards such as HB, HV, HLD, HK and tensile strength

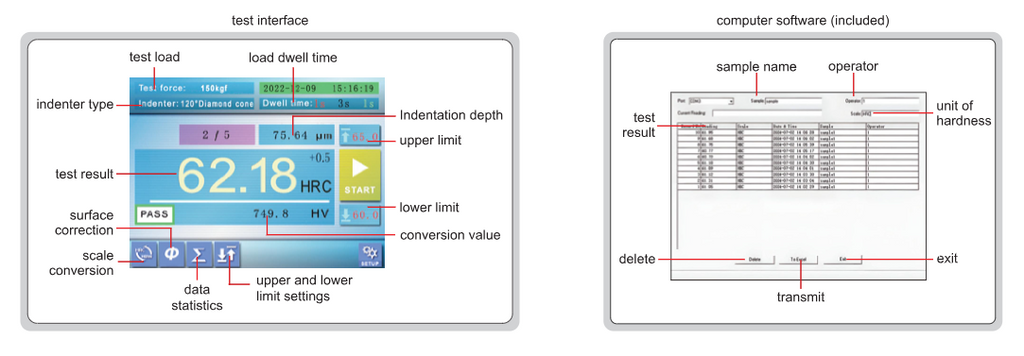

  • 250 sets of data are stored independently in the mainframe, which can be accessed at any time
  • Mean, variance, maximum and minimum statistics are available
  • USB communication port, can be connected to an external computer, measurement data Excel output
  • Correction function automatically corrects the measurement results of curved parts
  • Conforms to ASTM E-18, ISO 6508
  • Supplied with manufacturer inspection certificate.

Code HDT-DM290
Type Rockwell
Hardness scale with indenter included HRA HRB HRC
HRD HRF HRG
with optional indenter HRE HRH HRK HRL
HRM HRP HRR HRS HRV
Preliminary test force 98N/10kgf for Rockwell
Test force 588N (60kg)
980N (100kg)
1471N (150kg)
Stage elevation manual
Load control automatic (load/dwell/unload)
Load dwell time 2~250 seconds can be set
Resolution 0.01HR
Max workpiece height 290mm
Max testing width 220mm
Max bore depth 130mm
Min testing inner diameter 35mm
Power supply 220V 50/60Hz
Dimension 700×290×880mm
Weight 85kg
