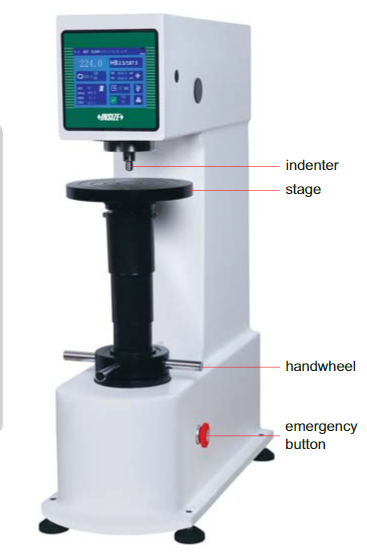

Motorized Digital Brinell Hardness Tester (Basic Type) - HDT-MBE320

Save 25%

Size: HDT-MBE320
Price:
Rs. 149,889 Rs. 199,353

Tax included Shipping calculated at checkout

Description

Features:-

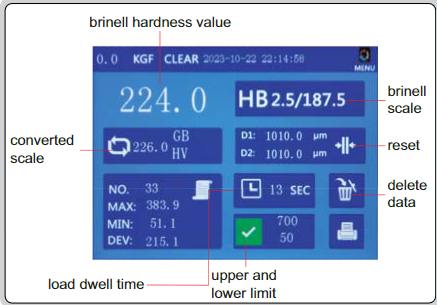

  • Touch screen color LCD display

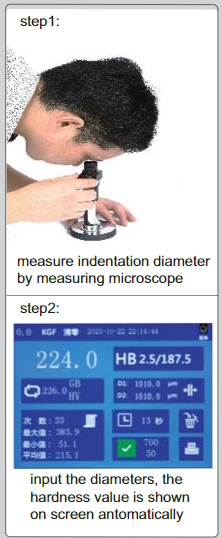

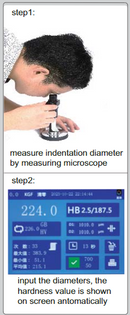

  • Measure indentation diameter by measuring microscope, then input the diameters, the hardness value is shown on screen automatically
  • Electric loading test force, without weights
  • Casting case, structurally stable and not deformed
  • Supplied with manufacturer inspection certificate traceable to DKD Germany.
  • According to ISO 6506

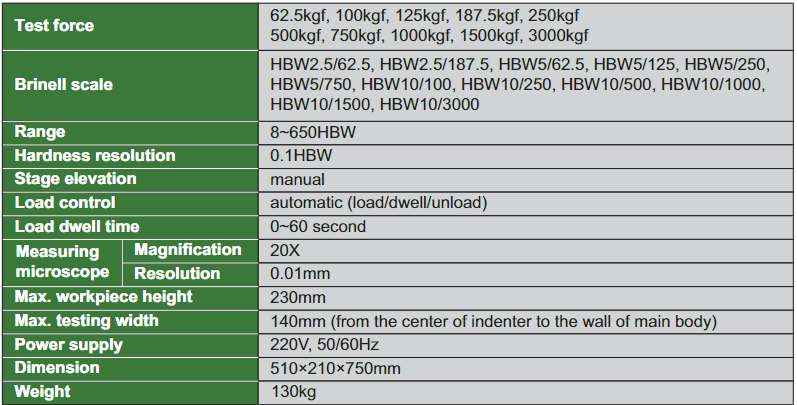

    Code HDT-MBe320
    Test 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
    Brine" scale HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250,HBW5/750, HBW10/100, HBW10/250, HBW/500, HBW1/1000 HBW10/1500, HBW10/3000
    Range 8-650HBW
    Hardness resolution 0.1HBW
    Stage elevation manual
    Load control automatic (load/dwell/unload)
    Load dwell time 0—60 second
    Measuring microscope  Magnification 20X
    Resolution 0.01 mm
    Max. workpiece height 230mm
    Max. testing width 140mm (from the center of indenter to the wall of main body)
    Power supply 220V, 50/60Hz
    Dimension 510x210x750mm
    Weight 130kg
