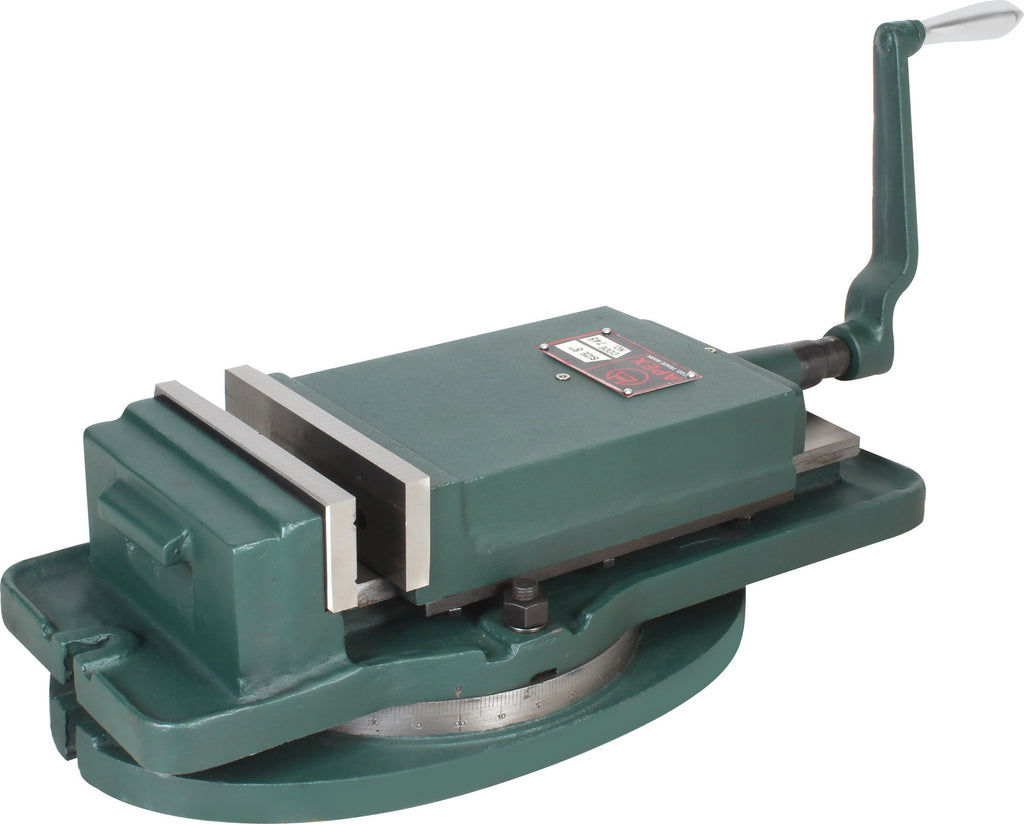

Milling Machine Vice Deluxe (Swivel Model) - Apex Code 745

Save 22%

Size: 4 Inches / 100mm
Price:
Rs. 14,349 Rs. 18,367

Tax included Shipping calculated at checkout

Description

Features :
  • Tilt Lock Machine Vice design is like with two vertical and horizontal rails connected to the base.
  • You can hold piece parts in the most immobile state possible.

Three Basics in precision Clamping
  1. That the movable jaw does not lift off the bed.
  2. That the body is rigid, and that a minimal amount of bending stresses is created in the clamping area.
  3. That deflection of the stationary jaw is minimized.
  • Totally enclosed toughened Screw.
  • The bed is guaranteed flat and parallel .0001 per inch.
Construction :
  • Graded Cast Iron dully stress the relieved body. Tool steel hardened & ground Jaws.
  • In addition to the rigid design characteristics, a large heavy nut is drawn up against the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses.
  • 4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position.




     SPECIFICATIONS
RANGE 4 Inches 6 Inches 8 Inches
Width of Jaws (In mm) 100 60 45
Opening of Jaws (In mm) 125 90 70
Depth of Jaws (In mm) 150 125 75
Length Overall (In mm) 325 520 575
Height Overall (In mm) 125 150 170
Width Overall (In mm) 170 245 300
Tenon slot size (In mm) 16 20 20
Weight In (Kgs) code 18 47 80
