Metallurgical Microscopes (Professional Type)-5108

Save 25%

Size: 5108-M3000 (Standard type)
Price:
Rs. 514,549 Rs. 684,350

Tax included Shipping calculated at checkout

Description

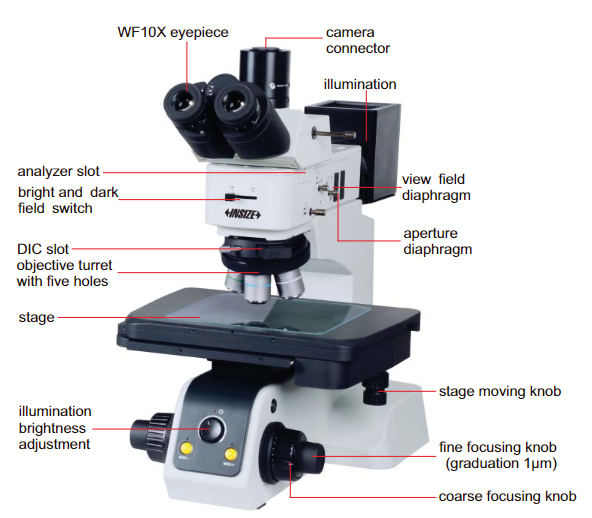

Features:-

  • Infinite chromatic aberration correction optical system
  • Three way observation tube with infinite hinge
  • Translucent and reflective frame, front low hand position coarse and fine coaxial focus adjustment mechanism with adjustment elastic device to prevent sliding and random upper limit device
  • Bright and dark field five-hole converter with DIC slot
  • Adopt digital dimming, with light intensity reset and setting function
  • With polarizer insert plate and 360° rotating analyzer insert slot

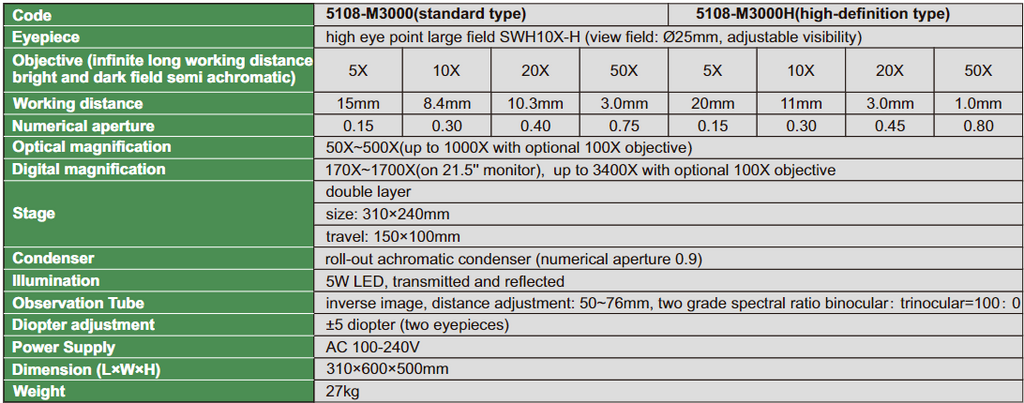

    Code  5108-M3000 5108-M3000H
    Eyepiece  High eye point large field
    Objective (Infinte long working distance bright and dark field semi achromatic) 5X 10X 20X 50X 5X 10X 20X 50X
    Working distance 15mm 8.4mm 10.3mm 3.0mm 20mm 11mm 3.0mm 1.0mm
    Numerical aperature 0.15 0.3 0.4 0.75 0.15 0.3 0.45 0.8
    Optical magnification 50X~500X (up to 1000X with optional 100X objective
    Digital magnification 170X-1700X (on 21.5" monitor) up to 3400X with optional 100X objective
    Stage Double layer
    Size: 310x240mm
    Condenser Roll out achromtic condenser (numerical aperature 0.9)
    Illumination 5W LED, transmitted and reflected
    Observation tube Inverse image, distance adjustment:50-76mm, Two grade spectral ratio binocular: trinocular=100:0
    Diopter aadjustment 5 diopter (two eyepieces)
    Power supply AC 100-240V
    Dimension (LxWxH) 310x600x500mm
    Weight 27Kg
