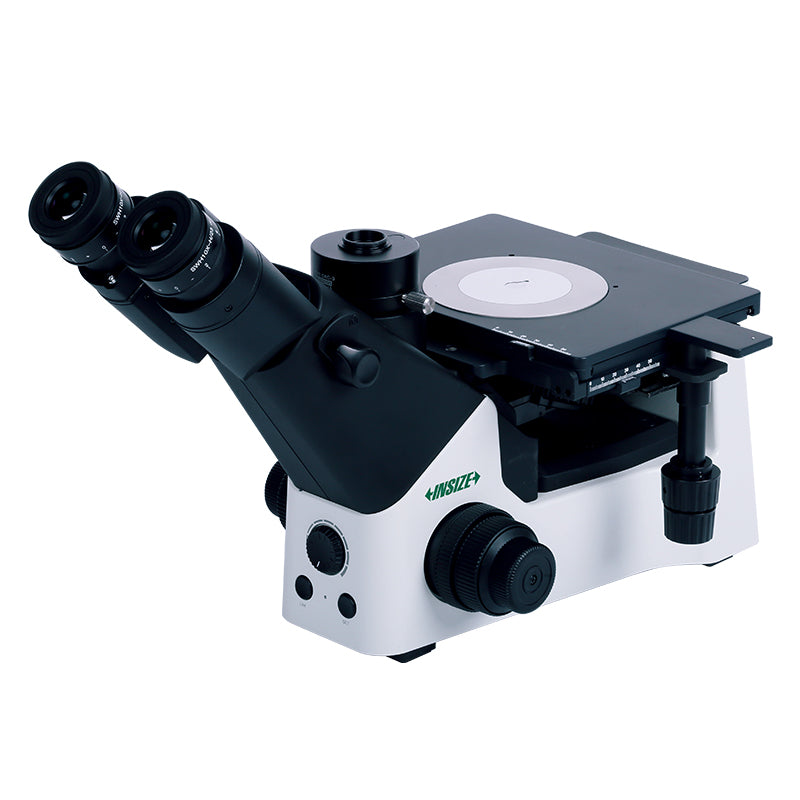

Metallurgical Microscope - 5114

Save 25%

Model no.: 5114-M550
Price:
Rs. 191,269 Rs. 255,029

Tax included Shipping calculated at checkout

Description

Features:-

  • Infinite chromatic aberration correction optical system
  • With brightness memory function
  • Objective turret with five holes

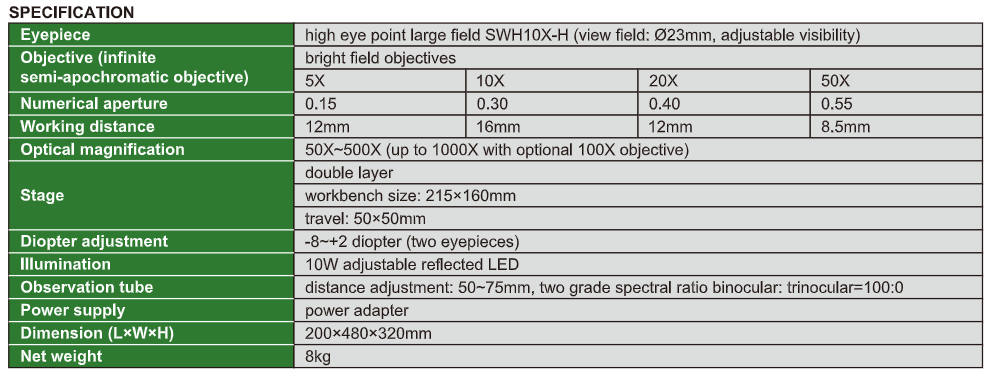

Eyepiece high eye point large field SWH10X-H (view field: Dia. 23mm, adjustable visibility)
Objective (infinite semi-apochromatic objective) bright field objectives
5X 10X 20X 50X
Numerical aperture 0.15 0.3 0.4 0.55
Working distance 12mm 16mm 12mm 8.5mm
Optical magnification 50X~500X (up to 1000X with optional 100X objective)
Stage double layer
workbench size: 215×160mm
travel: 50×50mm
Diopter adjustment -8~+2 diopter (two eyepieces)
Illumination 10W adjustable reflected LED
Observation tube distance adjustment: 50~75mm, two grade spectral ratio binocular: trinocular=100:0
Power supply power adapter
Dimension (L×W×H) 200×480×320mm
Net weight 8kg

Standard Delivery:-

Main unit 1pc
Anti-dust cover 1pc
0.5X camera adapter 1pc

Optional Accessory:-

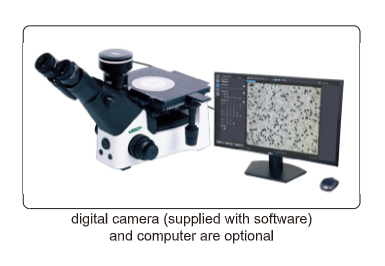

Camera and software ISM-KM60
Glass calibration ruler ISM-MAS-SCALE
Computer 5110-M-COMPUTER
Polarizer and analyzer 5114-M-POA
100X infinite bright field semi-apochromatic objective 5114-M-OB100X
Metallurgical analysis software and camera ISM-MAS100
Porosity measurement software and camera ISM-MAS200
