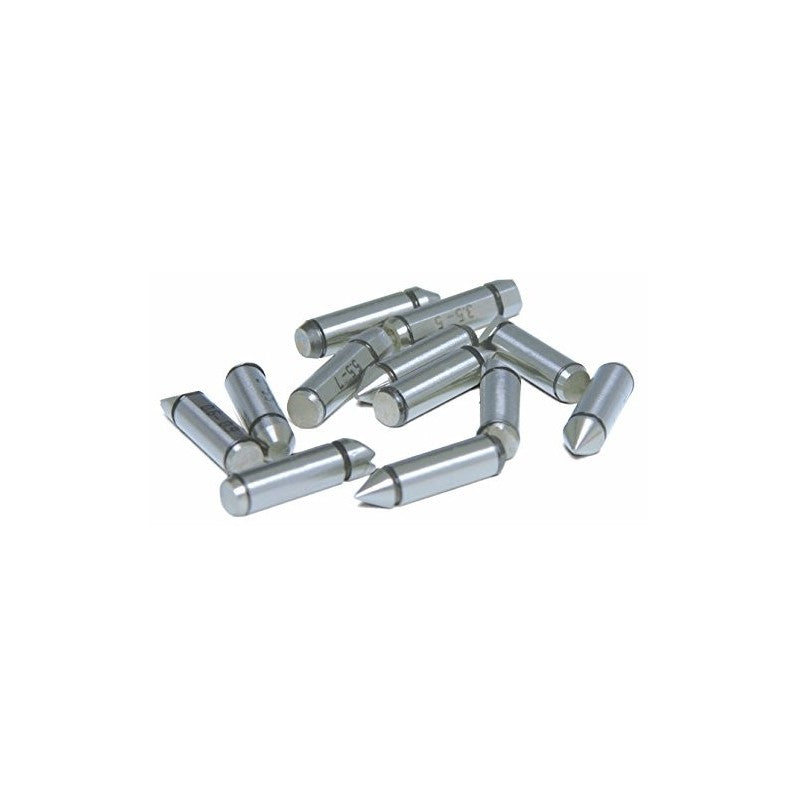

Measuring Tips For Screw Thread Micrometers - 7381

Save 25%

Code: 7381-T11
Price:
Rs. 1,409 Rs. 1,879

Tax included Shipping calculated at checkout

Description

Features:-

  • Supplied in pair
  • Suitable for 3281, 3581 series micrometers

Specification:-

Code Type Applicable Pitch
7381-T11 Metric and unified thread (60° thread angle) 0.4-0.5mm/64-48TPI
7381-T12 Metric and unified thread (60° thread angle) 0.6-0.9mm/44-28TPI
7381-T13 Metric and unified thread (60° thread angle) 1-1.75mm/24-14TPI
7381-T14 Metric and unified thread (60° thread angle) 2-3mm/13-9TPI
7381-T15 Metric and unified thread (60° thread angle) 3.5-5mm/8-5TPI
7381-T16 Metric and unified thread (60° thread angle) 5.5-7mm/4.5-3.5TPI
7381-TS Metric and unified thread (60° thread angle) 6 pairs/set, including all above tips
7381-T21 Whitworth thread (55° thread angle) 60-48TPI
7381-T22 Whitworth thread (55° thread angle) 48-40TPI
7381-T23 Whitworth thread (55° thread angle) 40-32TPI
7381-T24 Whitworth thread (55° thread angle) 32-24TPI
7381-T25 Whitworth thread (55° thread angle) 24-18TPI
7381-T26 Whitworth thread (55° thread angle) 18-14TPI
7381-T27 Whitworth thread (55° thread angle) 14-10TPI
7381-T28 Whitworth thread (55° thread angle) 10-7TPI
7381-T29 Whitworth thread (55° thread angle) 7-4.5TPI
7381-T210 Whitworth thread (55° thread angle) 4.5-3.5TPI
7381-T2S Whitworth thread (55° thread angle) 10 pairs/set, including all above tips
