GIN Precision Hydraulic Machine Vice - GCHV

Save 3%

MODEL: GCHV-130
Price:
Rs. 141,799 Rs. 146,249

Tax included Shipping calculated at checkout

Description

  • Lock Down Jaw design eliminates jaw lift and work piece tilt.
  • Compact Version of GPHV model (instruction - insert link of GPHV)

Features:-

  • Hydraulic constracture

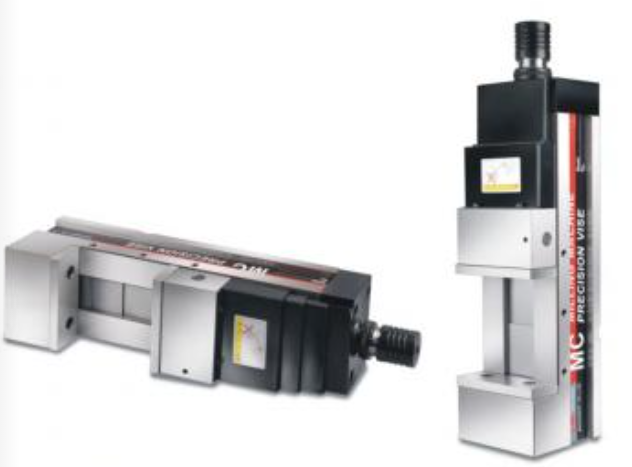

  • Suitable for vertical/horizontal milling machine, can be applied parallel.
  • Down thrust semi-sphere segment mechanism eliminates jaw lifting and work tilt
  • Slide and the surface are precision ground.
  • Made of ductile iron FCD60. JIS (60kgs/mm2 / 80000psi)
  • Vise bed flame hardened to HRC 45° to ensure long lasting wear-resistance and accuracy.

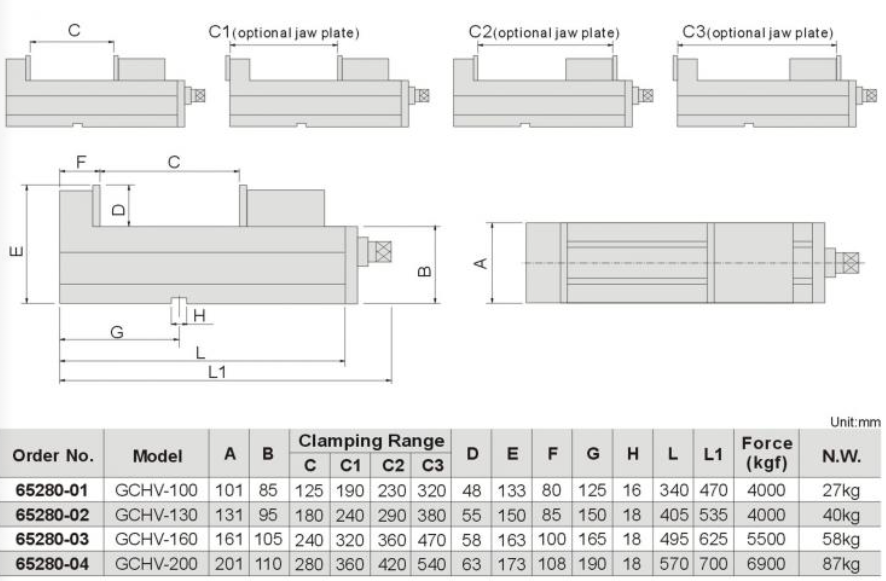

SPECIFICATIONS:-



Order No.
65280-01
65280-02
65280-03
65280-04
Model
GCHV-100
GCHV-130
GCHV-160
GCHV-200
A
101
131
161
201
B
85
95
105
110
C
Clamping Range
125
180
240
280
C1
190
240
320
360
C2
230
290
360
420
C3
320
380
470
540
D
48
55
58
63
E
133
150
163
173
F
80
85
100
108
G
125
150
165
190
H
16
18
18
18
L
340
405
495
570
L1
470
535
625
700




Model Jaw Width Jaw Depth Max. Jaw Opening Overall Length Clamping Force
GCHV-100 101 48 125 470 2500
GCHV-130 131 55 180 535 3500
GCHV-160 161 58 240 625 4500
GCHV-200 201 63 280 700          -
