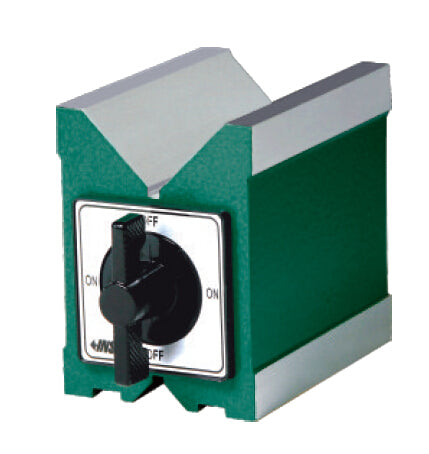

Magnetic V-Block (Economic Type) - 6801

Save 22%

L x W x H: 6801-1201 (80x70x95MM)
Price:
Rs. 6,715 Rs. 8,595.20

Tax included Shipping calculated at checkout

Description

Features:-
  • PARALLELISM  OF V GROOVES TO TOP,  BOTTOM, LEFT, RIGHT SIDE 10 μm

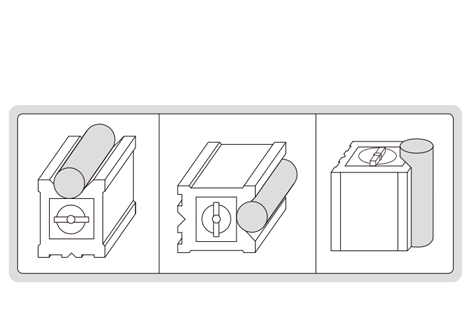

  • HOLD CYLINDERS WORKPIECES FOR INSPECTION AND MACHINING
  • SUPPLIED IN SINGLE PIECE
  • NOT HARDENED

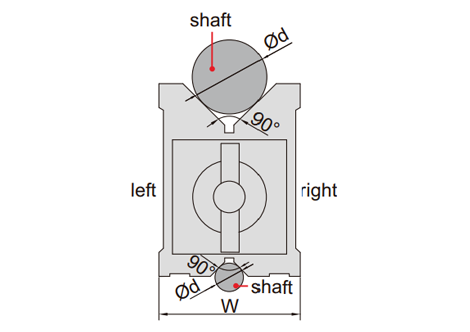

  • V GROOVE ON THE TOP FOR LARGE SHAFTS
  • V GROOVE ON THE BOTTOM FOR SMALL SHAFTS
  • NOT SUITABLE FOR STEEL OR IRON SURFACES, OTHERWISE THE MAGNETIC FORCE WILL BE REDUCED.
  • SQUARENESS OF V GROOVES TO BACK SIDE : 10μm

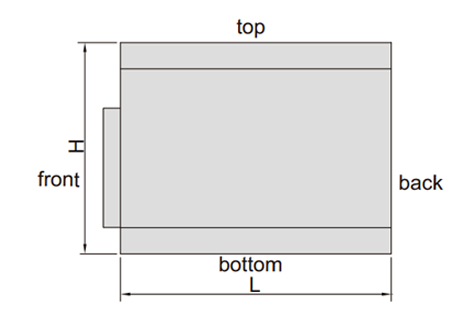

CODE SIZE (LxWxH) RANGE OF SHAFTS (∅d) MAGNETIC FORCE
6801-1201 80x70x90MM 6-67MM 64KGF
6801-1202 100x70x95MM 6-67MM 80KGF
6801-1203 120x70x95MM 6-67MM 96KGF
