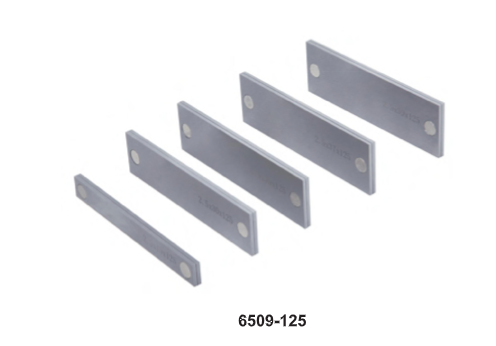

Magnetic Parallel Sets- 6509

Save 25%

model no.: 6509-90
Price:
Rs. 6,369 Rs. 8,489

Tax included Shipping calculated at checkout

Description

Features:-

  • One side with magnetic, can reduce clamping time
  • Parallelism between top and bottom: 5mu*m
  • Height difference of a matched pair: 5µm
  • Made of alloy tool steel
  • Hardened to HRC55-60

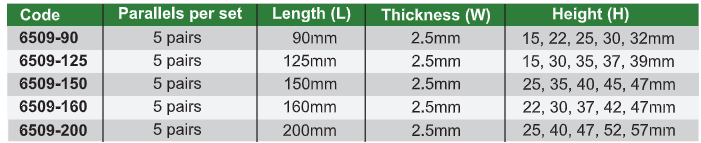

Code Parallels per set Length (L) Thickness (W) Height (H)
6509-90 5 pairs 90mm 2.5mm 15, 22, 25, 30, 32mm
6509-125 5 pairs 125mm 2.5mm 15, 30, 35, 37, 39mm
6509-150 5 pairs 150mm 2.5mm 25, 35, 40, 45, 47mm
6509-160 5 pairs 160mm 2.5mm 22, 30, 37, 42, 47mm
6509-200 5 pairs 200mm 2.5mm 25, 40, 47, 52, 57mm
