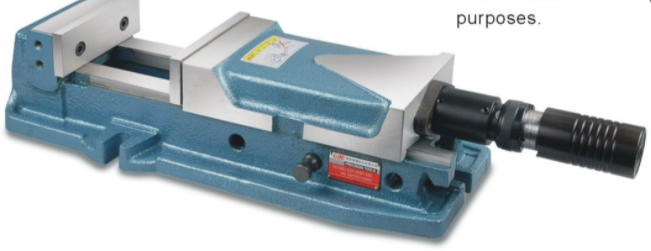

GIN Lock Down Jaw Hydraulic Machine Vice (NO BASE) - GPHV

Save 6%

MODEL: GPHV-125
Price:
Rs. 100,999 Rs. 107,874

Tax included Shipping calculated at checkout

Description

  • Features:-
  • Hydraulic power can be applied separately, both also can be used at the same time with max clamping force 6,000 kg
  • Down thrust semi-sphere segment mechanism eliminates jaw lifting and work tilt.
  • Slide and the surface are precision ground.
  • Made of Ductile iron FCD60.
  • Vise bed flame hardened to HRC 45° to ensure long lasting wear resistance and accuracy.
  • Most suitable for milling processing, molding purposes.
  • Lock Down Jaw design eliminates jaw lift and work piece tilt.

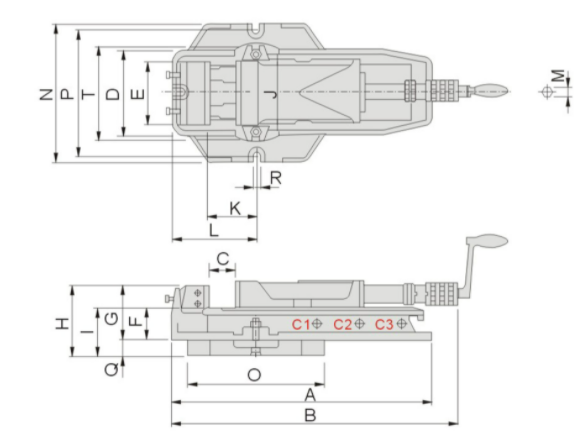

 SPECIFICATIONS:-

Order No. A B C
GPHV-125 280 266 32
GPHV-160 330 310 35
GPHV-200 375 355 40



Order No.
65230-01
65230-02
65230-03
Model
GPHV-125
GPHV-160
GPHV-160
A
505
605
700
B
Min
85
95
105
Max
795
935
1035
C
Clamping Range
0~220
0~310
0~310
C1
0~72
0~102
0~102
C2
70~140
100~205
100~205
C3
135~220
200~310
200~310
D
170
210
240
E
130
160
200
F
72
82
100
G
127
140
163
H
160
192
240
I
106
117
146
J
75
101
115
L
180
195
265
M
14
14
14
N
280
334
420
O
266
320
420
P
260
310
390
Q
32
35
50
R
16
18
18
T
190
240
280
