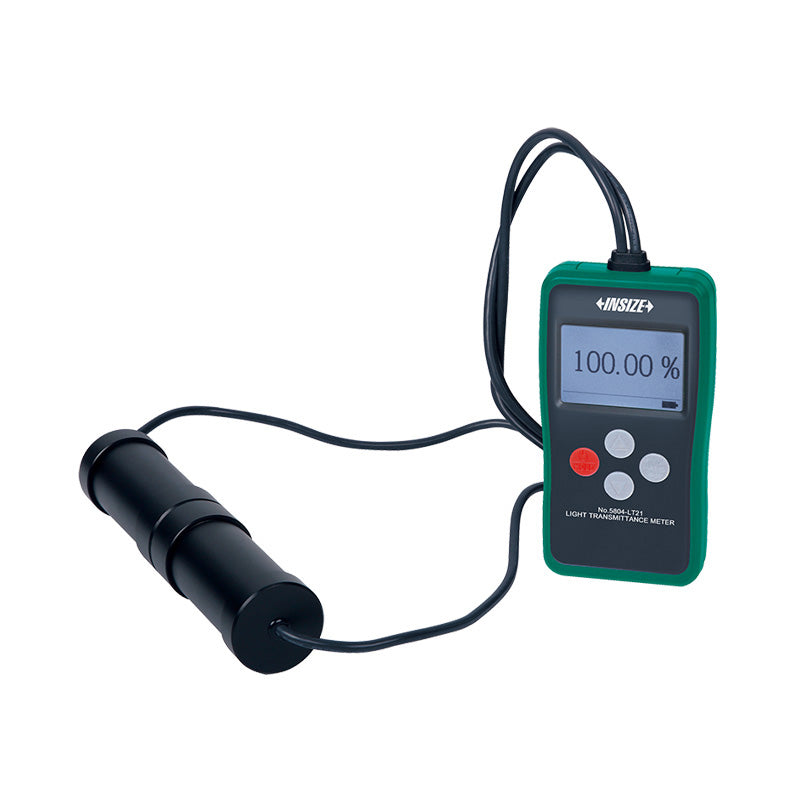

Light Transmittance Meter : 5804

Save 25%

Model no.: 5804-LT21
Price:
Rs. 47,045 Rs. 62,569

Tax included Shipping calculated at checkout

Description

Features:-

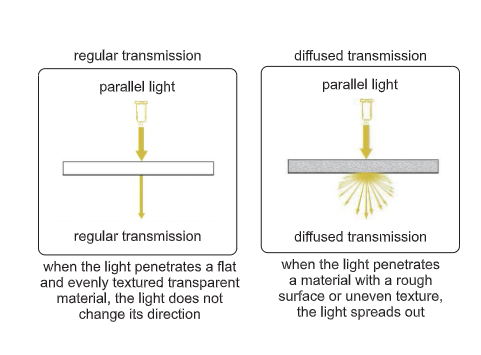

  • Suitable for light transmittance testing of various “regular transmission materials”, such as building glasses, auto glasses, transparent films, plastic products, etc.
  • With the design of parallel optical path of the light source and condensed light of the receiver, it can measure up to 100mm thickness
  • Can measure the high transparent materials such as K9 glasses

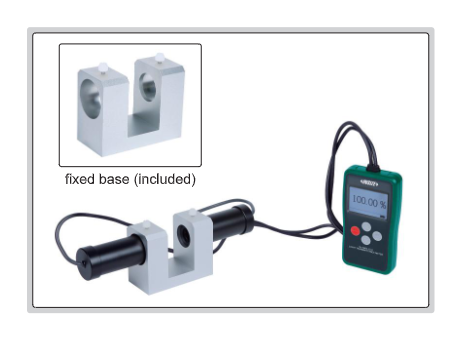

  • Two measuring modes, fixed base and handheld
  • Conforming to CIE photopic luminosity function

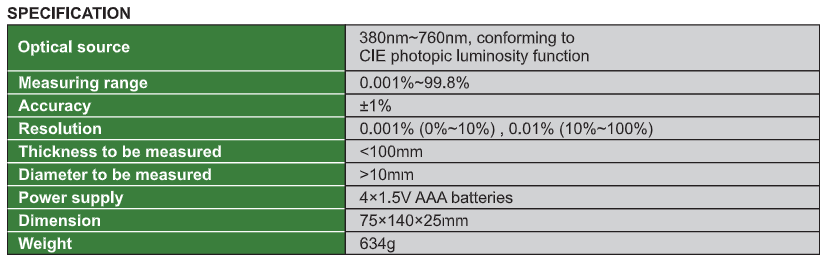

Feature

Details

Optical source

$380\text{ nm}\sim760\text{ nm}$, conforming to CIE photopic luminosity function

Measuring range

0.001%~99.8%

Accuracy

±1%

Resolution

0.001% (0%~10%), 0.01% (10%~100%)

Thickness to be measured

<100mm

Diameter to be measured

>10mm

Power supply

4×1.5V AAA batteries

Dimension

75×140×25mm

Weight

634g
