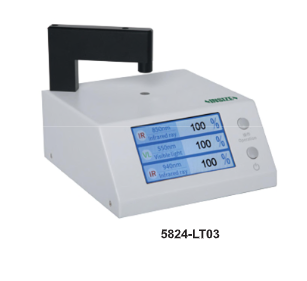

Lens Transmission Meters - 5824

Save 25%

Size: 5824-LT01
Price:
Rs. 45,815 Rs. 60,935

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Used for measuring infrared transmittance, such as IR ink holes in cell phone lenses, remote control windows, IR-CUT, etc.
  • Measures transmittance of visible 550nm, infrared 850nm/940nm
  • With a three-in-one optical path, it can measure three data at a time
  • Automatic judgement after setting high and low limits
  • Batch testing can export Excel reports
  • Real-time dynamic self-calibration of the lens transmission meter

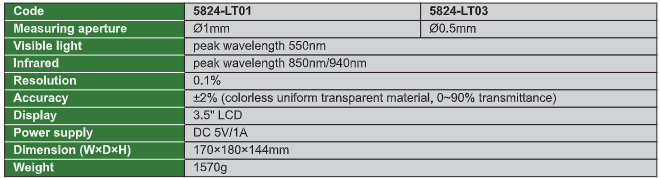

Code 5824-LT01 5824-LT03
Measuring aperture Ø1mm Ø0.5mm
Visible light peak wavelength 550nm
Infrared peak wavelength 850nm/940nm
Resolution 0.1%
Accuracy ±2% (colorless uniform transparent material, 0~90% transmittance)
Display 3.5" LCD
Power supply DC 5V/1A
Dimension (W×D×H) 170×180×144mm
Weight 1570g
