Length Presetters (Motorized Type)- ISQ-S

Save 25%

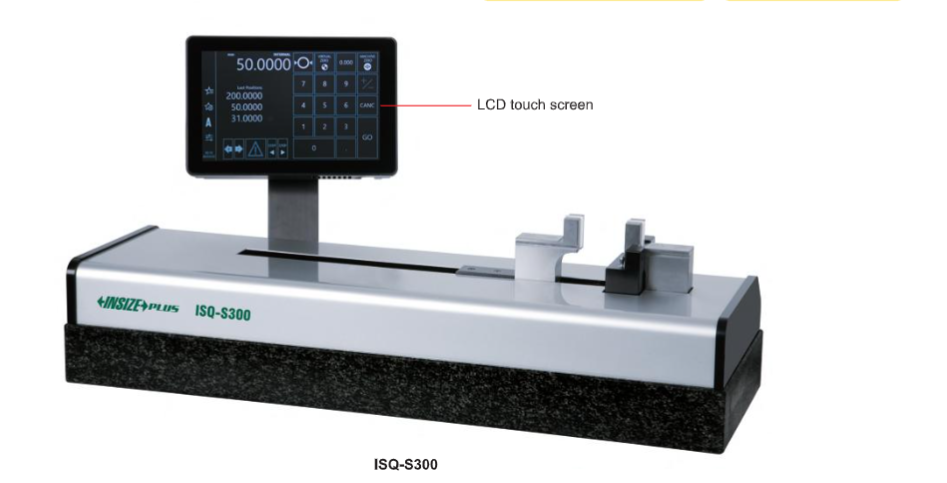

Model no.: ISQ-S300
Price:
Rs. 1,980,265 Rs. 2,633,749

Tax included Shipping calculated at checkout

Description

Features:-

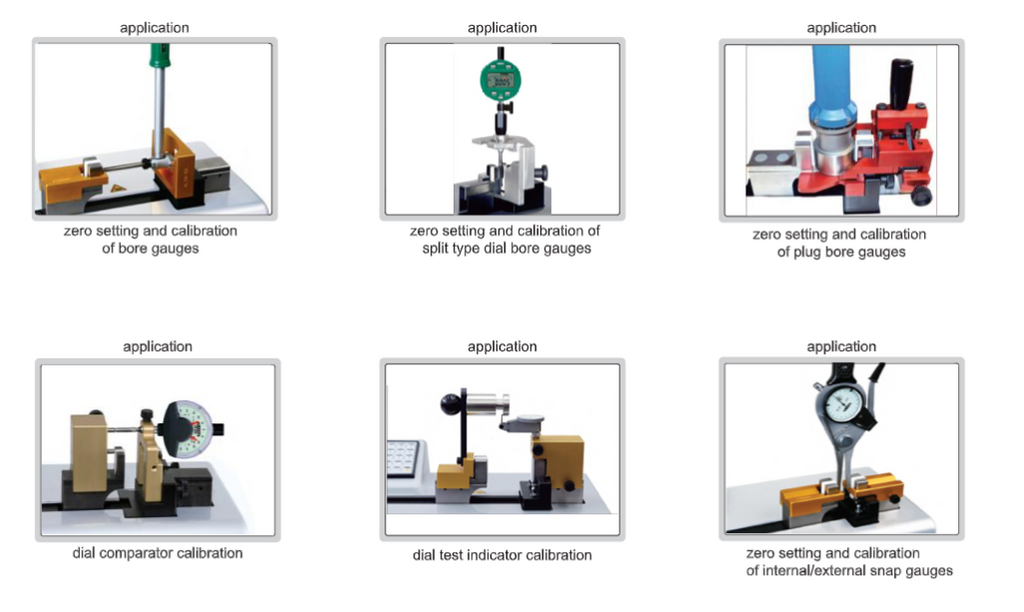

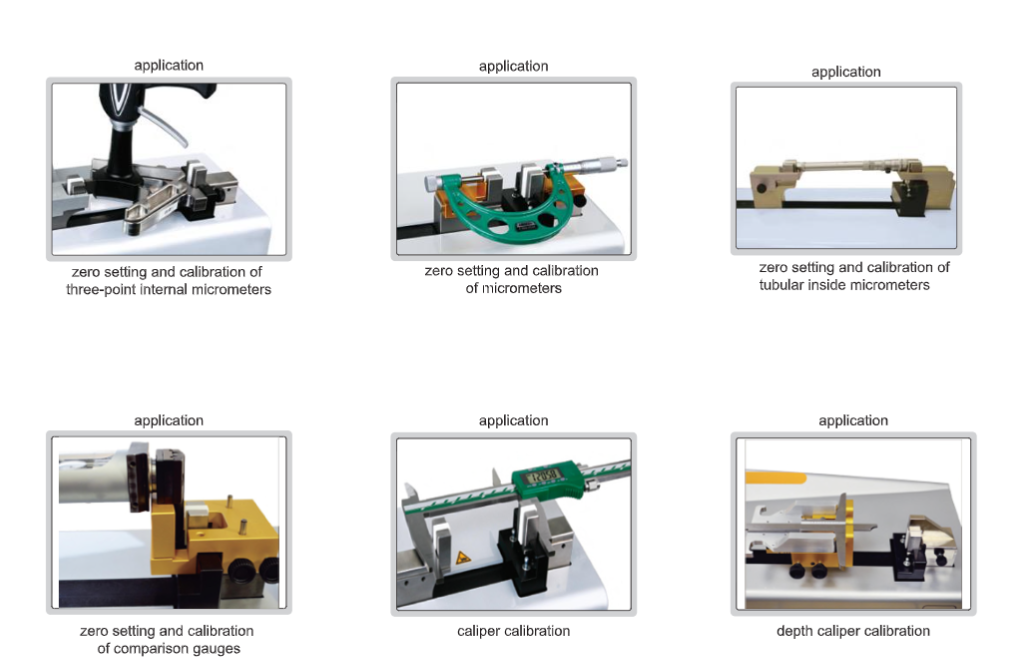

  • Used to set and calibrate various measuring tools, such as bore gauges, multifunctional calipers, internal/external snap gauges, three-point internal micrometers, tubular inside micrometers, calipers, micrometers, etc
  • Stores up to 100 positions (OD + ID)
  • Can preset any position and save it
  • Can set the step distance and move continuously
  • The built-in steel strip grating ruler has the same temperature expansion coefficient as the steel workpiece, so length presetters can be used in workshops
  • Connect to computers through Moabus protocol
  • This is INSIZE PLUS product
  • Can be used in workpiece
  • Replacing ring gauge & gauge blocks

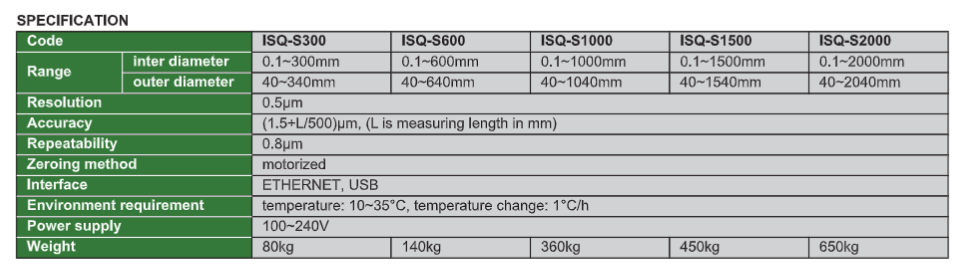

Code ISQ-S300 ISQ-S600 ISQ-S1000 ISQ-S1500 ISQ-S2000
Range inter diameter 0.1~300mm 0.1~600mm 0.1~1000mm 0.1~1500mm 0.1~2000mm
outer diameter 40~340mm 40~640mm 40~1040mm 40~1540mm 40~2040mm
Resolution 0.5µm
Accuracy (1.5+L/500)µm (L is measuring length in mm)
Repeatability 0.8µm
Zeroing method motorized
Interface ETHERNET USB
Environment requirement temperature: 10~35°C temperature change: 1°C/h
Power supply 100~240V
Weight 80kg 140kg 360kg 450kg 650kg
