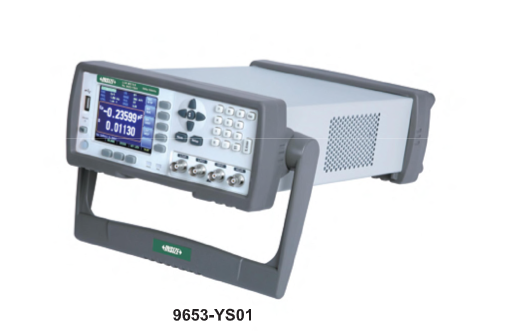

LCR Meter - 9653

Save 25%

Model no.: 9653-YS002
Price:
Rs. 97,405 Rs. 129,545

Tax included Shipping calculated at checkout

Description

Features:-

  •  3.5-inch TFT LCD display
  • Basic accuracy: 0.05%
  • Auto level control
  • Calibration function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.
  • List test: cyclic scanning of up to 10 groups of frequency or level is performed and the results are compared to the set values.
  • Comparator: 11-level sorting function, up to 999,999 measured parts can be counted.
  • MATERIAL AGAINST ORDER

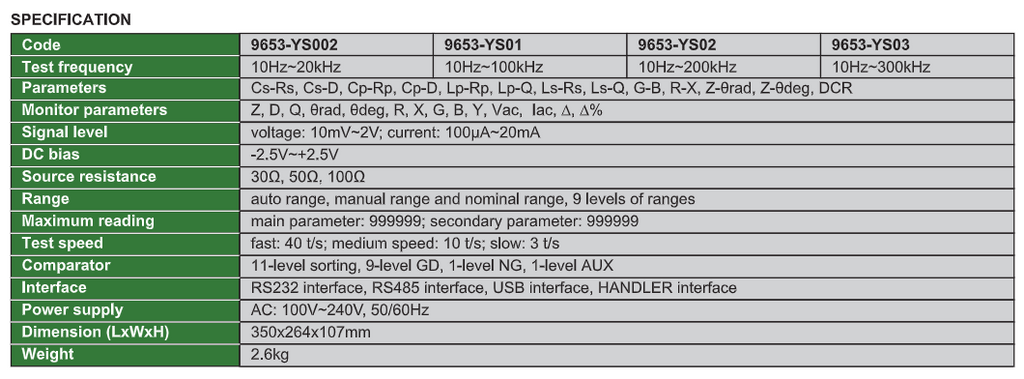

Code 9653-YS002 9653-YS01 9653-YS02 9653-YS03
Test frequency 10Hz~20kHz 10Hz~100kHz 10Hz~200kHz 10Hz~300kHz
Parameters Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-erad, Z-edeg, DCR
Monitor parameters Z, D, Q, Orad, Odeg, R, X, G, B, Y, Vac, lac, Δ, Δ%
Signal level voltage: 10mV~2V; current: 100μA~20mA
DC bias -2.5V~+2.5V
Source resistance 30Ω, 50Ω, 100Ω
Range auto range, manual range and nominal range, 9 levels of ranges
Maximum reading main parameter: 999999; secondary parameter: 999999
Test speed fast: 40 t/s; medium speed: 10 t/s; slow: 3 t/s
Comparator 11-level sorting, 9-level GD, 1-level NG, 1-level AUX
Interface RS232 interface, RS485 interface, USB interface, HANDLER interface
Power supply AC: 100V~240V, 50/60Hz
Dimension (LxWxH) 350x264x107mm
Weight 2.6kg
