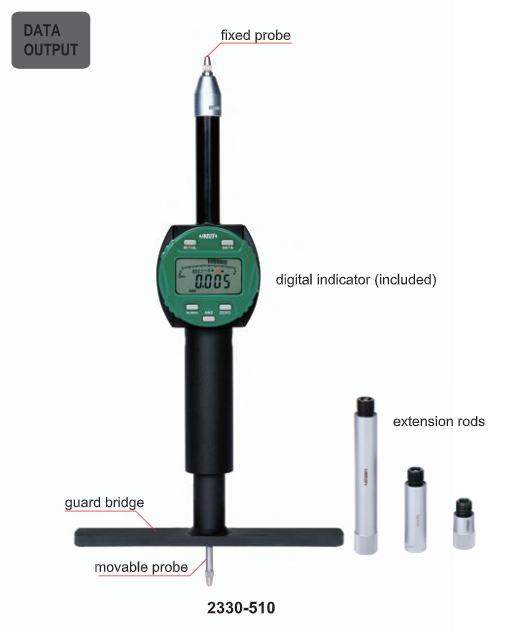

Large Range Bore Gauge - 2330

Save 25%

Model no.: 2330-300 (180-300mm)
Price:
Rs. 38,079 Rs. 50,645

Tax included Shipping calculated at checkout

Description

Features:

  • Digital indicator reading in digital and analog
  • Digital indicator display can be rotated by 320°
  • Digital indicator can keep preset data and tolerance data in memory after restart
  • Digital indicator button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement, data output
  • Digital indicator power: with data interface: CR2032
  • built-in wireless: rechargeable lithium battery
  • Carbide probes
  • Data output
  • gauge block accessory (code 6981) Optional accessory: steel gauge block sets (code 4100)

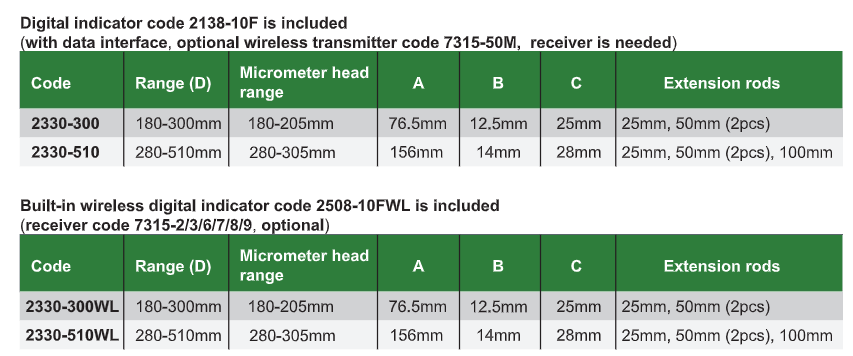

Digital indicator 2138-10F is included

(with data transfer, optional wireless transmitter code 7315-50M, receiver needed)

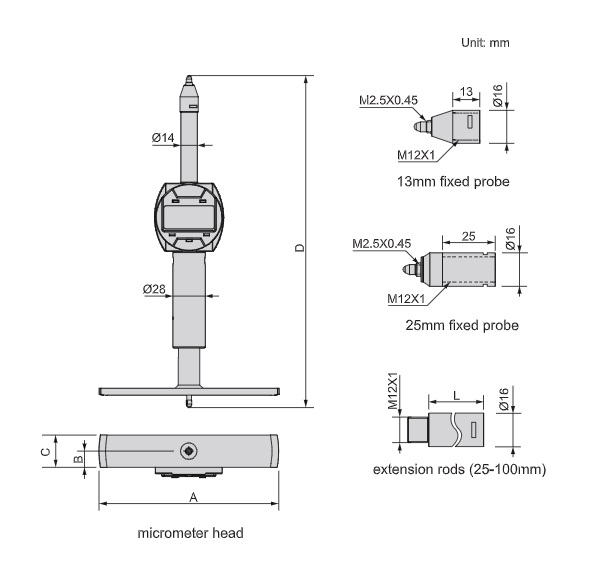

Code Range (D) Micrometer head range A B C Extension rods
2330-300 180-300mm 180-205mm 76.5mm 12.5mm 25mm 25mm, 50mm (2pcs)
2330-510 280-510mm 280-305mm 156mm 14mm 28mm 25mm, 50mm (2pcs), 100mm



built in wireless digital indicator 2508-10FWL is included

(receiver code 7315-2/3/6/7/8/9, optional)

Code Range (D) Micrometer head range A B C Extension rods
2330-300WL 180-300mm 180-205mm 76.5mm 12.5mm 25mm 25mm, 50mm (2pcs)
2330-510WL 280-510mm 280-305mm 156mm 14mm 28mm 25mm, 50mm (2pcs), 100mm
