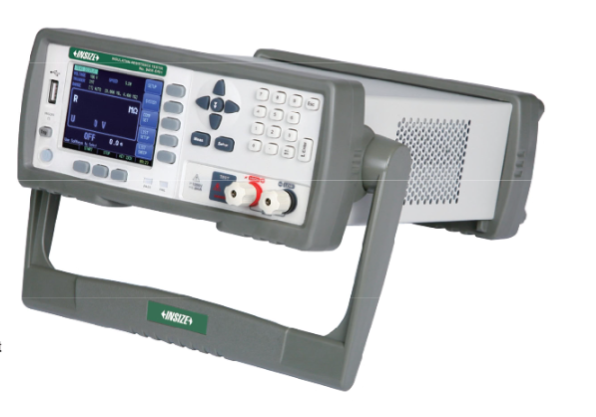

Insulation Resistance Meter - 9456

Save 25%

Model no.: 9456-DR01
Price:
Rs. 77,540 Rs. 103,129

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Rapidly assess in as fast as 50 ms
  • Quick discharge of residual voltage
  • Charge timer function for capacitive loads
  • Contact check function and short-circuit check function prevent errors due to poor contact and potential defects
  • Comparator function, beep can be set
  • Save 10 test files, USB supports file access
  • Various communication interfaces to meet automation test requirements

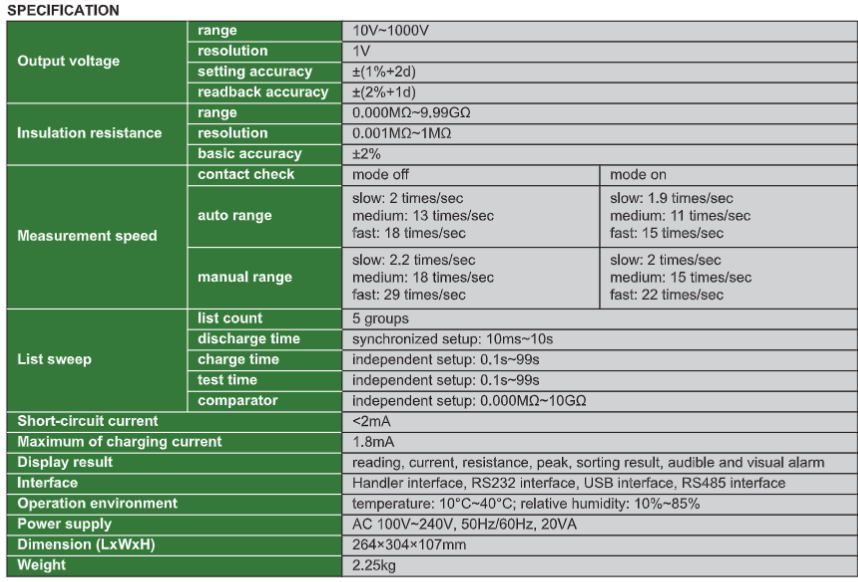

Output voltage range 10V~1000V
resolution 1V
setting accuracy ±(1%+2d)
readback accuracy ±(2%+1d)

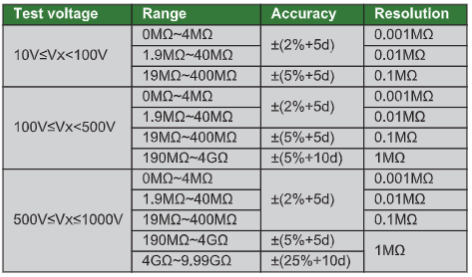

Insulation resistance range 0.000ΜΩ~9.99GΩ
resolution 0.001ΜΩ~1ΜΩ
basic accuracy ±2%
contact check mode off
Measurement speed auto range slow: 2 times/sec medium: 13 times/sec fast: 18 times/sec
manual range slow: 2.2 times/sec medium: 18 times/sec fast: 29 times/sec
List sweep list count 5 groups
discharge time synchronized setup: 10ms~10s
charge time independent setup: 0.1s~99s
test time independent setup: 0.1s~99s
comparator independent setup: 0.000ΜΩ~10GQ
Short-circuit current <2mA
Maximum of charging current 1.8mA
Display result reading, current, resistance, peak, sorting result, audible and visual alarm
Interface Handler interface, RS232 interface, USB interface, RS485 interface
Operation environment temperature: 10°C~40°C; relative humidity: 10%~85%
Power supply AC 100V~240V, 50Hz/60Hz, 20VA
Dimension (LxWxH) 264×304×107mm
Weight 2.25kg
