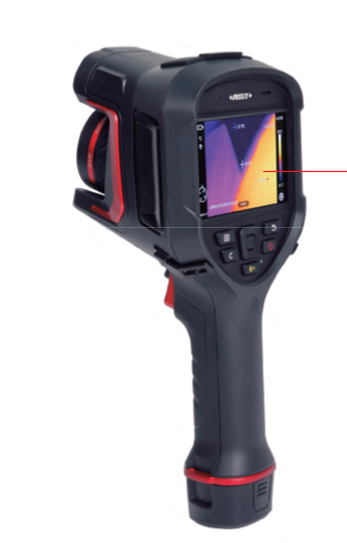

Infrared Thermal Imaging Camera - 0231

Save 25%

Size: 0231-IC650
Price:
Rs. 169,080 Rs. 224,876

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for electric power, metallurgy, petrochemical, scientific research and teaching, manufacturing, rail transit, building testing. electronic equipment overhaul, mechanical equipment maintenance, etc.

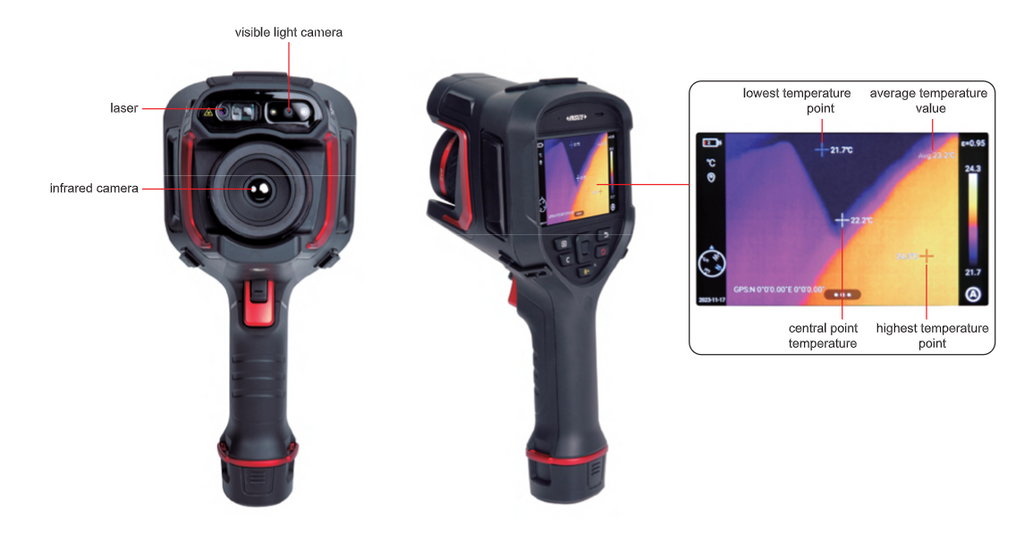

  • Four image presentation: IR, VIS, MIF, PIP
  • Real-time image can be photographed and video recorded
  • Software is included: image browsing, image parameter editing, infrared image analysis, batch report generation, video editing, etc.
  • WIFI real-time sharing, one-click connection to mobile device

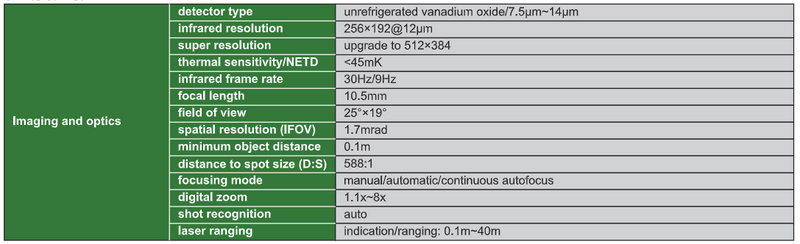

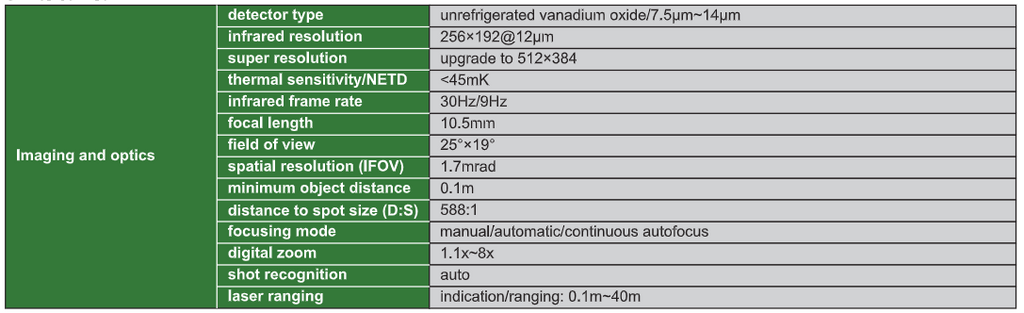

Imaging and optics detector type unrefrigerated vanadium oxide/7.5um~14um
infrared resolution 256x192@12um
super resolution upgrade to 512x384
thermal sensitivity/NETD <45mK
infrared frame rate 30Hz/9Hz
focal length 10.5mm
field of view 25°x19"
spatial resolution (IFOV) 1.7mrad
minimum object distance 0.1m
distance to spot size (D:S) 588:01:00
focusing mode manual/automatic/continuous autofocus
digital zoom 1.1x-8x
shot recognition auto
laser ranging Indication/ranging: 0.1m-40m

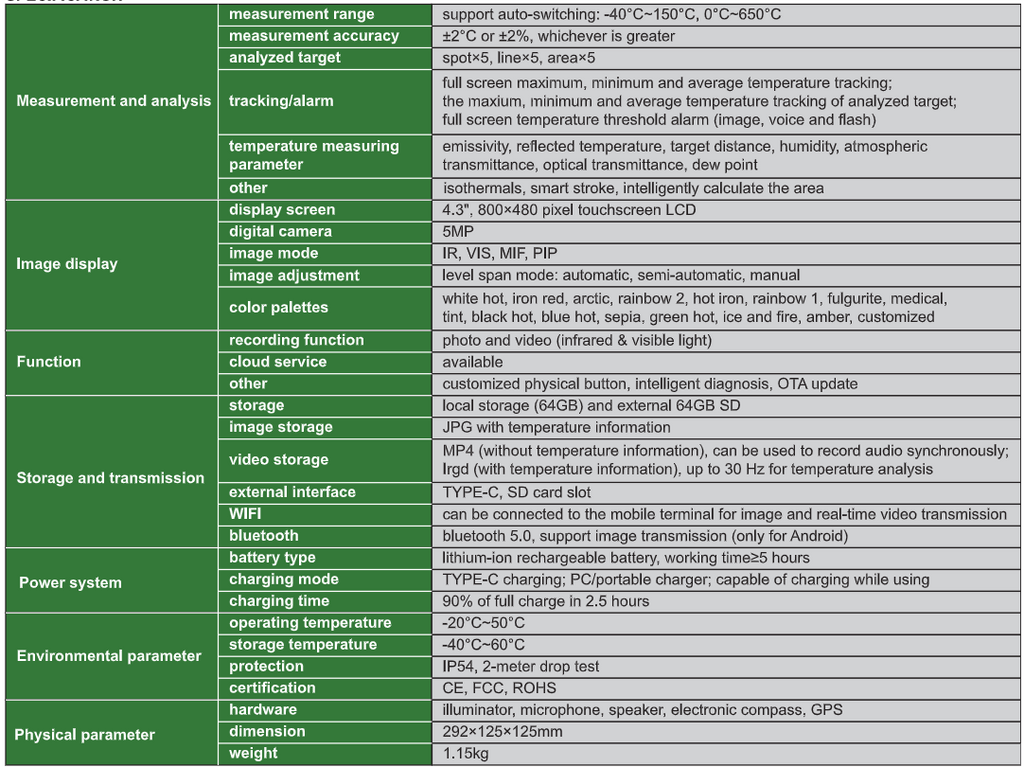

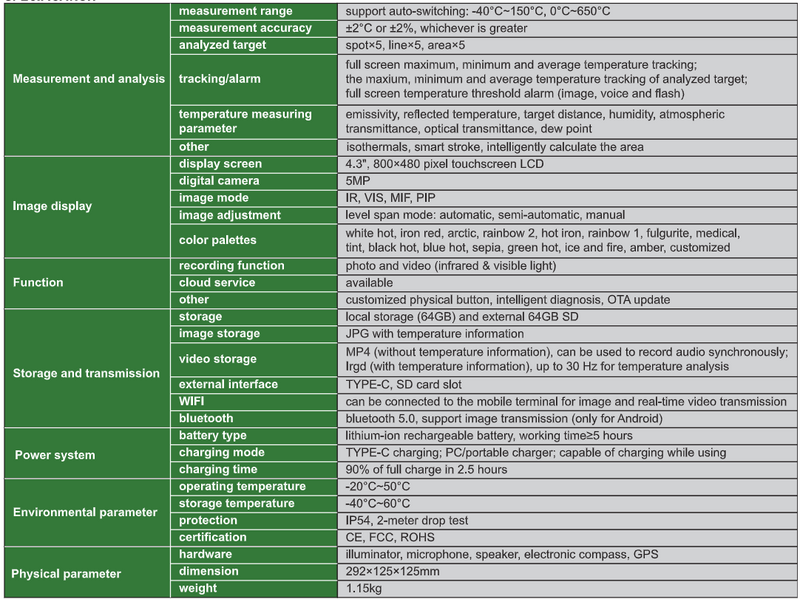

Measurement and analysis measurement range support auto-switching: -40°C-150°C, 0°C-650°C
measurement accuracy +2°C or +2%, whichever is greater
analyzed target spotx5,lineX5, areaX5 linex5, areax5
tracking/alarm full screen maximum, minimum and average temperature tracking: the maxium, minimum and average temperature tracking of analyzed target, full screen temperature threshold alarm (image, voice and flash)
temperature measuring parameter emissivity, reflected temperature, target distance, humidity, atmospheric
transmittance, optical transmittance, dew point
other isothermals, smart stroke, intelligently calculate the area
Image display display screen 4.3", 800x480 pixel touchscreen LCD
digital camera 5MP
image mode IR, VIS, MIF, PIP
image adjustment level span mode: automatic, semi-automatic, manual
color palettes white hot, iron red, arctic, rainbow 2, hot iron, rainbow 1, fulgurite, medical,
tint, black hot, blue hot, sepia, green hot, ice and fire, amber, customized
Storage and transmission   Irgd (with temperature information), up to 30 Hz for temperature analysis
external interface TYPE-C, SD card slot
WIFI can be connected to the mobile terminal for image and real-time video transmission
bluetooth bluetooth 5.0, support image transmission (only for Android)
Power system battery type lithium-ion rechargeable battery, working time>5 hours
charging mode TYPE-C charging; PC/portable charger; capable of charging while using
charging time 90% of full charge in 2.5 hours
Environmental parameter operating temperature -20°C~50°C
storage temperature -40°C-60°C
protection IP54, 2-meter drop test
Physical parameter certification CE, FCC, ROHS
hardware illuminator, microphone, speaker, electronic compass, GPS
dimension 292x125x125mm
Weight 1.15Kg
