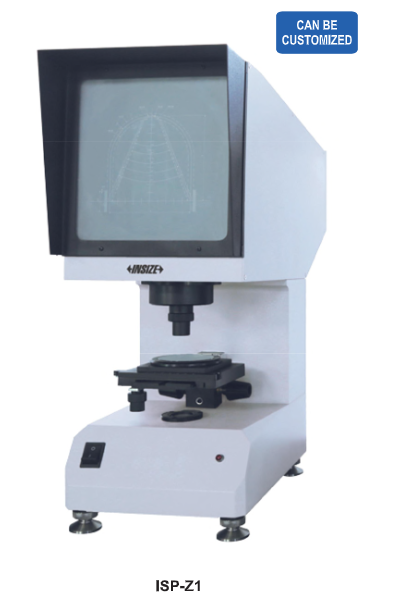

Impact Specimen Notch Projectors - ISP

Save 25%

Size: ISP-Z1
Price:
Rs. 252,639 Rs. 336,849

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for inspecting the notching quality of impact specimens of Charpy V-notch (depth of 2mm) and U-notch (depth of 2mm)
  • Standard sample drawings with tolerances, angle values and depth lines on the screen for intuitive and efficient comparison

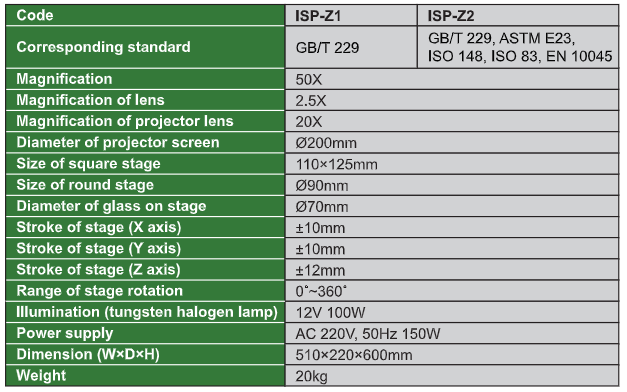

Code ISP-Z1 ISP-Z2
Corresponding standard GB/T 229 GB/T 229, ASTM E23, ISO 148, ISO 83, EN 10045
Magnification 50X
Magnification of lens 2.5X
Magnification of projector lens 20X
Diameter of projector screen Ø200mm
Size of square stage 110×125mm
Size of round stage Ø90mm
Diameter of glass on stage Ø70mm
Stroke of stage (X axis) ±10mm
Stroke of stage (Y axis) ±10mm
Stroke of stage (Z axis) ±12mm
Range of stage rotation 0°~360°
Illumination (tungsten halogen lamp) 12V 100W
Power supply AC 220V, 50Hz 150W
Dimension (L×W×H) 510×220×600mm
Weight 20kg

Standard Delivery:

  • Main unit - 1 pc
