Hydraulic Work Support -SP- Series : Hydraulic Work Support - High Inlet Oil Pressure 100-350kg/cm2

Save 27%

Variant: SP-16A
Price:
Rs. 22,275 Rs. 30,517

Tax included Shipping calculated at checkout

Description

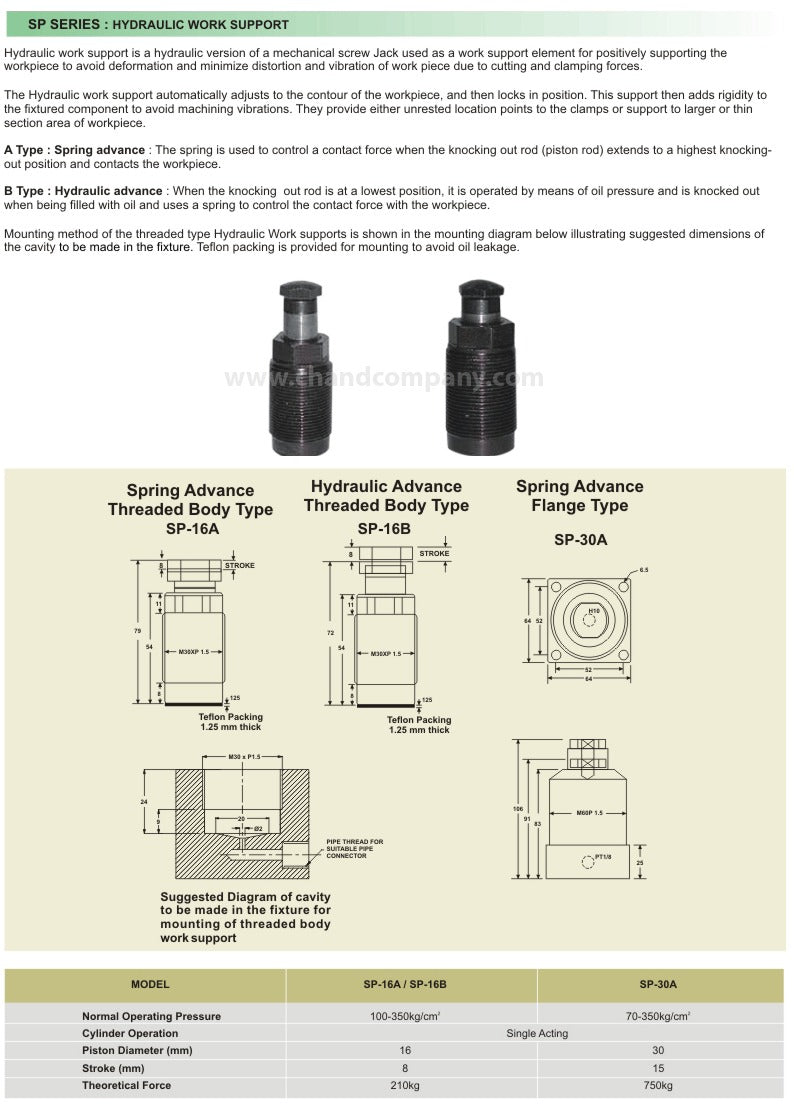

Hydraulic work support is a hydraulic version of a mechanical screw jack used as a work support element for positively supporting the workpiece to avoid deformation and minimize distortion and vibration of the workpiece due to cutting and clamping forces.

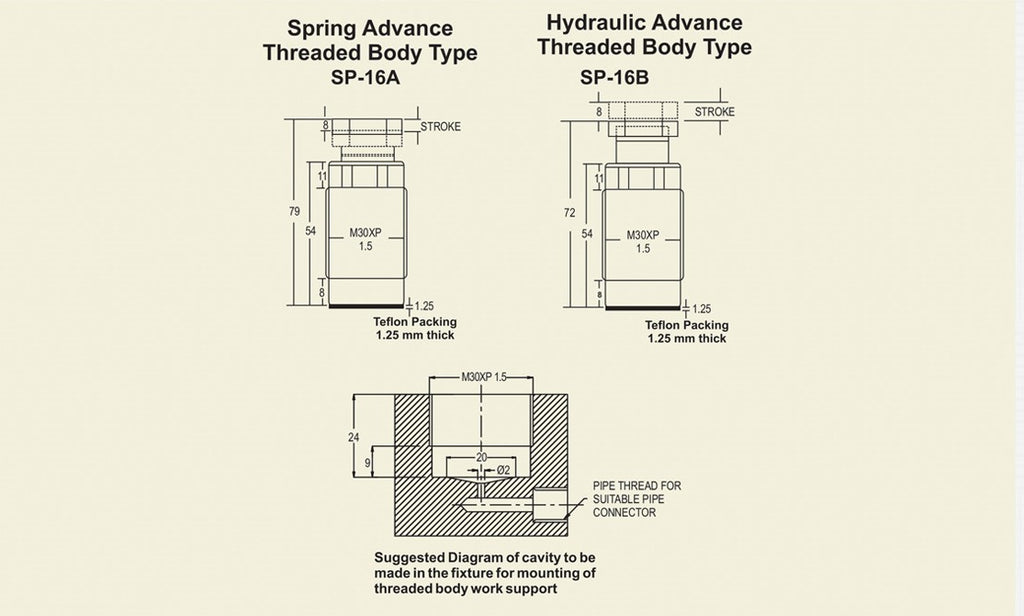

A Type: Spring Advance: The spring is used to control a contact force when the knocking out rod (piston rod) extends to the highest knocking-out position and contacts the workpiece



B Type: Hydraulic Advance: When the knocking-out rod is at the lowest position. it is operated by means of oil pressure and is knocked out when being filled with oil and uses a spring to control the contact force with the workpiece.

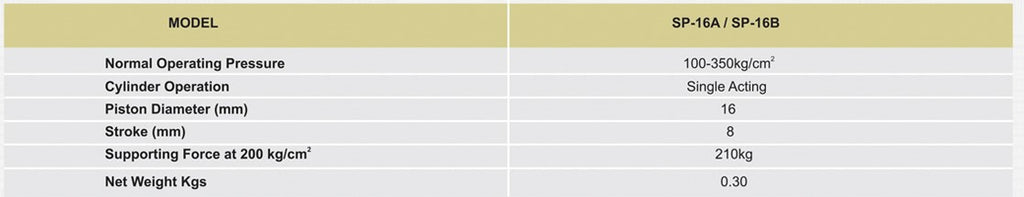

Model SP-16A/Sp-16B
Normal operating pressure
100-350kg/cm2
Cylinder operation Single Acting
Piston Diameter (mm)
16
Stroke (mm) 8
supporting force at 200 kg/cm2
210kg
Net Weight Kgs 0.3
