HST Series : Low Oil Pressure, Hydraulic , Threaded Version Swing Clamp - Double Acting, 20-70 kg/cm2 Inlet Oil Pressure

Save 34%

Variant: HST-25-R
Right or Left: Right
Price:
Rs. 15,390 Rs. 23,191

Tax included Shipping calculated at checkout

Description

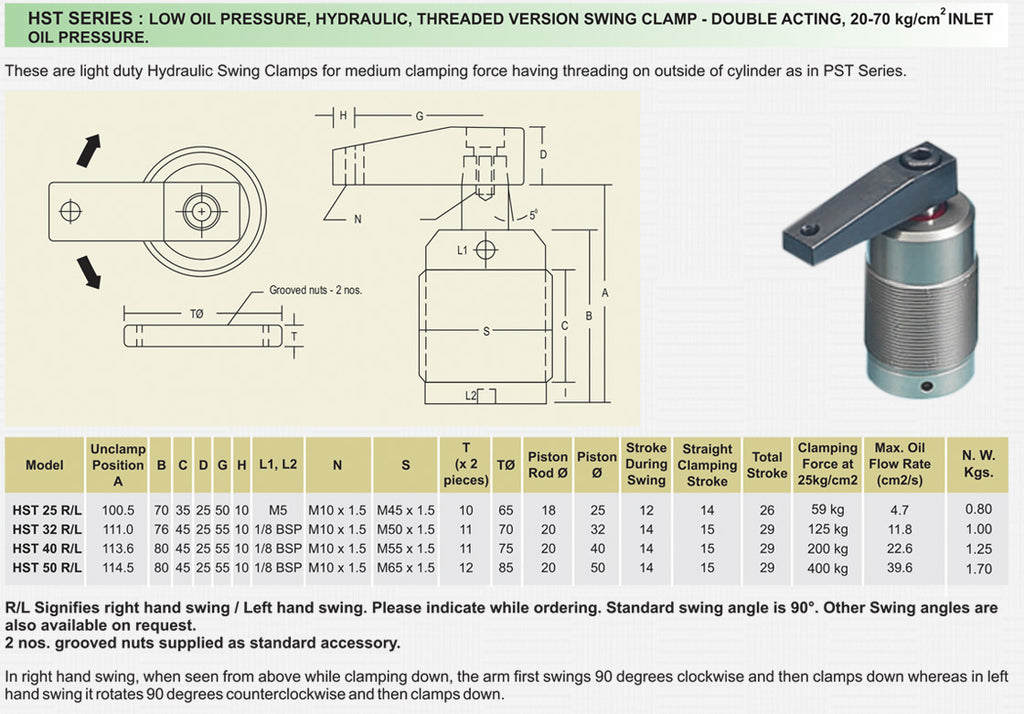

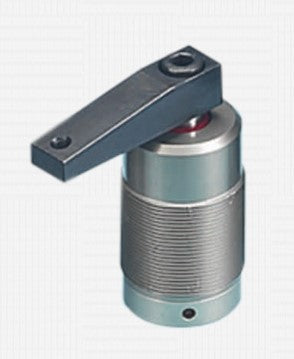

These are light-duty Hydraulic Swing Clamps for medium clamping force having threading on outside of cylinder as in PST series.





Range HST 25 R/L HST 32 R/L HST 40 R/L HST 50 R/L

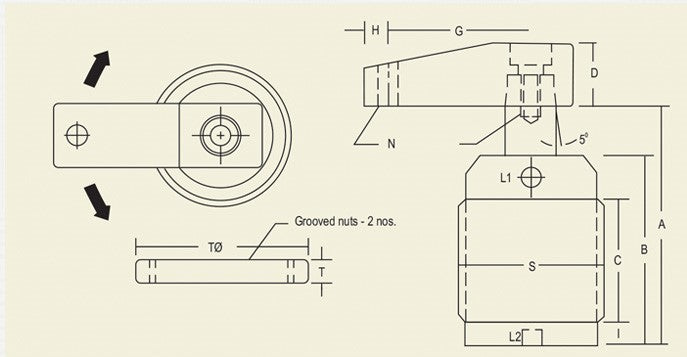

Unclamping Position A 100.5 111 113.6 114.5
B 70 76 80 80
C 35 45 45 45
D 25 25 25 25
G 55 55 55 55
H 10 10 10 10
L1 L2 M5 1/8 BSP 1/8 BSP 1/8 BSP
N M10 x 1.5 M10 x 1.5 M10 x 1.5 M10 x 1.5
S M45 x 1.5 M45 x 1.5 M45 x 1.5 M45 x 1.5
T (x 2 Pieces) 10 11 11 12
65 70 75 85
Piston ROD - Ø 18 20 20 20
Piston Ø 25 32 40 50
Piston Ø 25 32 40 50
Stroke during swing 12 14 14 14
Straight Clamping Stroke 14 15 15 15
Total Stroke 26 29 29 29
Clamping Force (25kg/cm2)
59 kg 125 kg 200 kg 400 kg
Max. Oil Flow Rate (cm2/s)
4.7 11.8 22.6 39.6
N.W Kgs. 0.8 1 1.25 1.7
