HSF Series RIGHT : Low Oil Pressure, Hydraulic , Flange Version Swing Clamp - Double Acting, 20-70 kg/cm2 Inlet Oil Pressure

Save 14%

Right: Right
Variant: HSF-25-R
Price:
Rs. 15,229 Rs. 17,755

Tax included Shipping calculated at checkout

Description

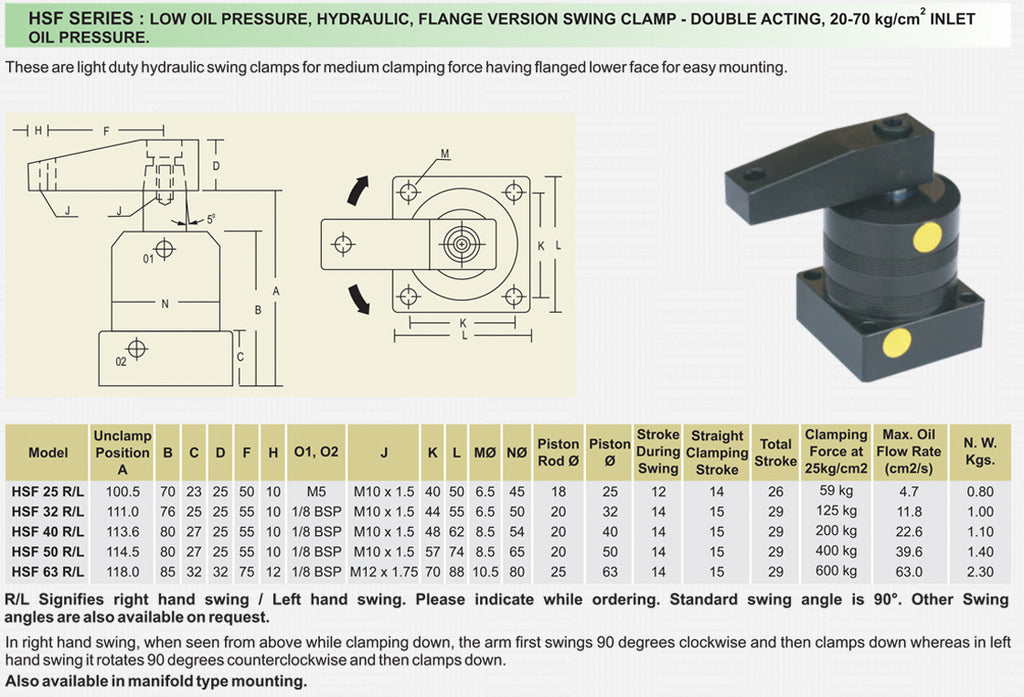

These are light-duty Hydraulic swing clamps for medium clamping force having flanged lower face for easy mounting.

 FOR RIGHT

Range HSF 25 R/L HSF 32 R/L HSF 40 R/L HSF 50 R/L HSF 63 R/L
Unclamping Position A 100.5 111 113.6 114.5 118
B 70 76 80 80 85
C 23 25 27 27 32
D (mm) 25 25 25 25 32
F 50 55 55 55 75
H 10 10 10 10 12
O1, O2 M5 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP
J M10 x 1.5 M10 x 1.5 M10 x 1.5 M10 x 1.5 M12 x 1.75
K 40 44 48 57 70
L 50 55 62 74 88
6.5 6.5 8.5 8.5 10.5
45 50 54 65 80
Piston ROD - Ø 18 20 20 20 25
Piston Ø 25 32 40 50 63
Stroke during swing 12 14 14 14 14
Straight Clamping Stroke 14 15 15 15 15
Total Stroke 26 29 29 29 29
Clamping Force (25kg/cm2)
59 kg 125 kg 200 kg 400 kg 600 kg
Max. Oil Flow Rate (cm2/s)
4.7 11.8 22.6 39.6 63
N.W Kgs. 0.8 1 1.1 1.4 2.3
