Horizontal Latch Clamp - Light Duty - Lockable Type : LC

Save 27%

variant: LC-50-L
Price:
Rs. 170 Rs. 233

Tax included Shipping calculated at checkout

Description

The available models are in Mild Steel : LC-50-L and LC-80-L

The available models are in Stainless Steel :  LC-50-L-SS and LC-80-L-SS

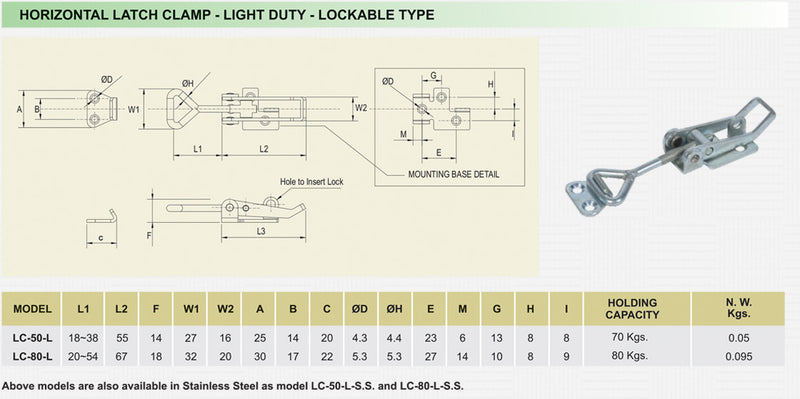

MODEL LC-50-L LC-80-L
L1 18-38 20-54
L2 55 67
F 14 18
W1 27 32
W2 16 20
A 25 30
B 14 17
C 20 22
ØD 4.3 5.3
ØH 4.4 5.3
E 23 27
M 6 14
G 13 10
H 8 8
I 8 9
HOLDING CAPACITY
70 Kgs 80 Kgs
N.W Kgs 0.045 0.09
