Hold Down Toggle Clamp - Horizontal Handle - Thumb Type : HDTC

Save 27%

Variant: HDTC-25
Price:
Rs. 350 Rs. 480

Tax included Shipping calculated at checkout

Description

Low height design of these hold down toggle clamps requires less overhead clearance as the handle remains in horizontal position while clamping.

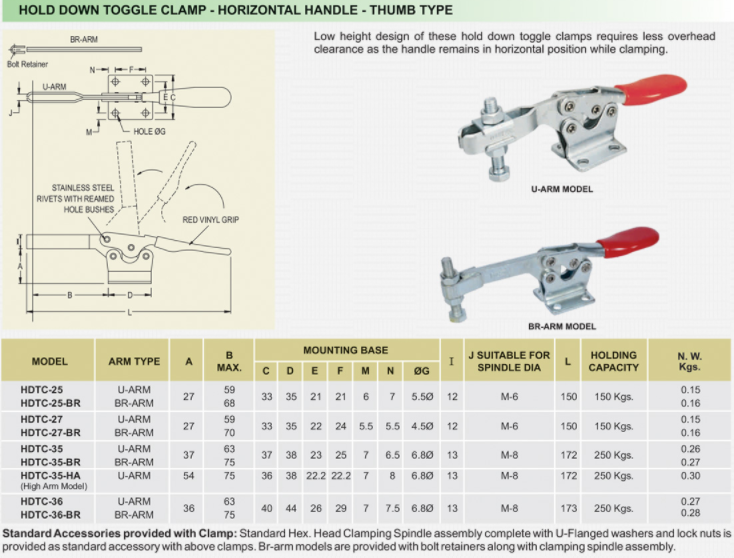

Model HDTC-25 / HDTC-25-BR HDTC-27/ HDTC-27-BR HDTC-35/ HDTC-35-BR HDTC-35HA
HDTC-36/HDTC-36-BR

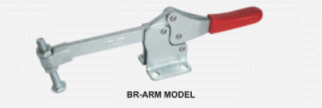

Arm Type U-Arm / BR-Arm U-Arm / BR-Arm U-Arm / BR-Arm U-Arm U-Arm / BR-Arm
A 27 27 37 54 36
B Max 59/68 59/70 63/75 75 63/75
Mounting Base
C 33 33 37 36 40
D 35 35 38 38 44
E 21 22 23 22.2 29
F 21 24 25 22.2 29
M 6 5.5 7 7 7
N 7 5.5 6.5 8 7.5
⌀G 5.5⌀ 4.5⌀ 6.8⌀ 6.8⌀ 6.8⌀
I 12 12 13 13 13
J Suitable Spindle For Dia M-6 M-6 M-8 M-8 M-8
L 150 150 172 172 173
Holding Capacity 150KGS 150KGS 250KGS 250KGS 250KGS
N.W Kgs 0.15/0.16 0.15/0.16 0.26/0.27 0.3 0.27/0.28
