High Temperature chambers - TAT-B/D/L/K

Save 25%

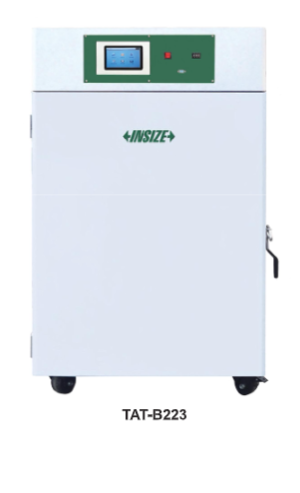

Model no.: TAT-B223
Price:
Rs. 369,695 Rs. 491,690

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for automotive industry, electronic industry.
  • material, aerospace, etc.
  • Powerful circulating fans ensure uniform temperature distribution in the chamber
  • Equipped with a touchscreen for simplified operation and program control
  • Multiple safety protections, such as leakage protection, over-temperature protection, etc.
  • Software is included: support remote control
  • MATERIAL AGAINST ORDER

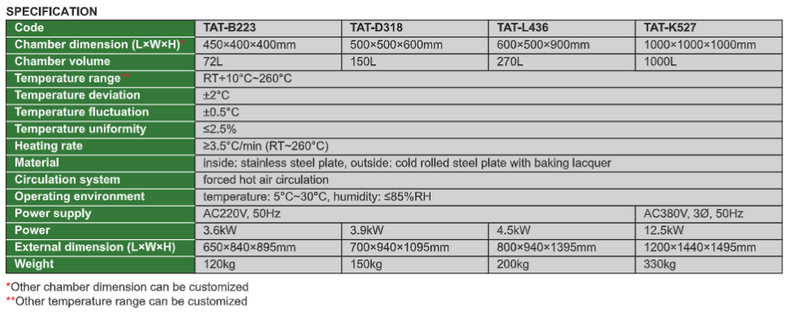

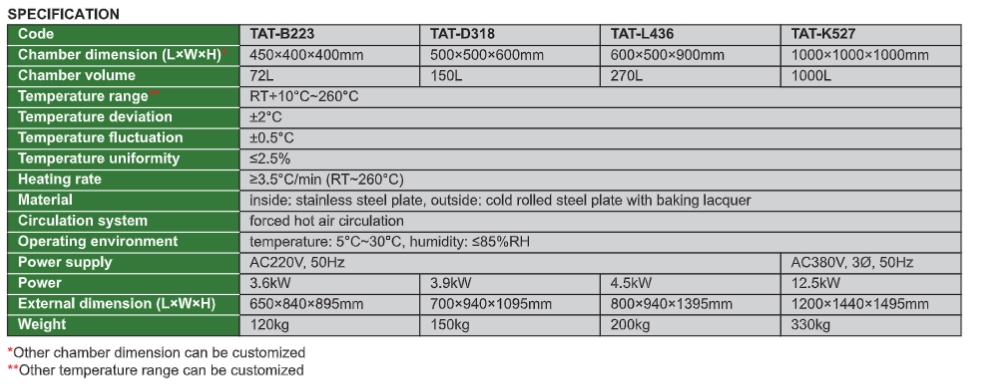

Code TAT-B223 TAT-D318 TAT-L436 TAT-K527
Chamber dimension (L×W×H) 450×400×400mm 500×500×600mm 600×500×900mm 1000×1000×1000mm
Chamber volume 72L 150L 270L 1000L
Temperature range RT+10°C~260°C
Temperature deviation ±2°C
Temperature fluctuation ±0.5°C
Temperature uniformity ≤2.5%
Heating rate ≥3.5°C/min (RT~260°C)
Material inside: stainless steel plate, outside: cold rolled steel plate with baking lacquer
Circulation system forced hot air circulation
Operating environment temperature: 5°C~30°C, humidity: ≤85%RH
Power supply AC220V, 50Hz AC380V, 3Ø, 50Hz
Power 3.6kW 3.9kW 4.5kW 12.5kW
External dimension (L×W×H) 650×840×895mm 700×940×1095mm 800×940×1395mm 1200×1440×1495mm
Weight 120kg 150kg 200kg 330kg
