High Precision Platinum Resistance Thermometer - 0328

Save 25%

Model no.: 0328-PT41
Price:
Rs. 22,409 Rs. 29,879

Tax included Shipping calculated at checkout

Description

Description

The Insize 0328-PT41/PT42 High Precision Platinum Resistance Thermometers use a PT1000 platinum resistance sensor for accurate, stable temperature measurement from -40°C to 200°C, with IP52 waterproof protection. Featuring a graphical dot-matrix LCD with backlight, MAX/MIN/AVG mode, multi-point calibration and data hold, these thermometers suit laboratory, industrial and field temperature monitoring. The 0328-PT41 provides a single measurement channel, while the 0328-PT42 provides two channels for simultaneous dual-point measurement.

Features

  • PT1000 platinum resistance sensor, ±0.5°C accuracy, 0.001°C resolution
  • Measurement range -40°C~200°C, 1 sample/sec
  • MAX/MIN/AVG mode with temperature upper and lower limit alarm function
  • Multi-point calibration function
  • Graphical dot-matrix LCD display with backlight
  • Data hold function, battery level display, automatic power off
  • IP52 waterproof rated

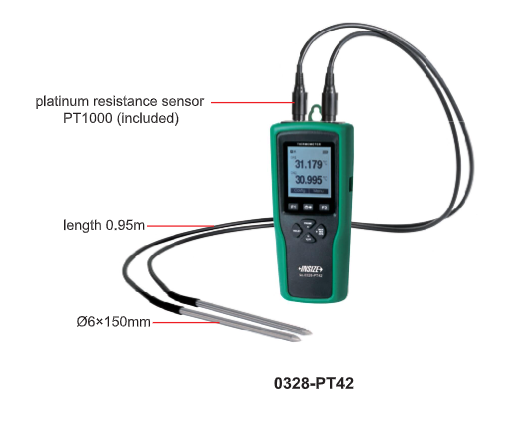

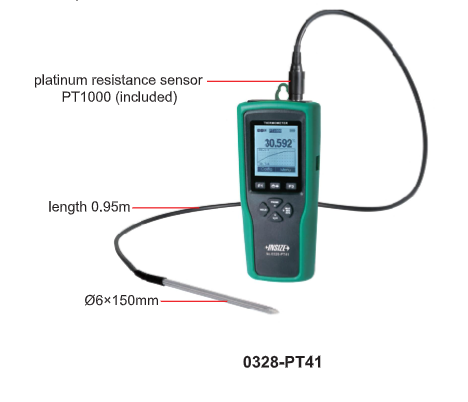

  • 0328-PT41: 1 channel; 0328-PT42: 2 channels

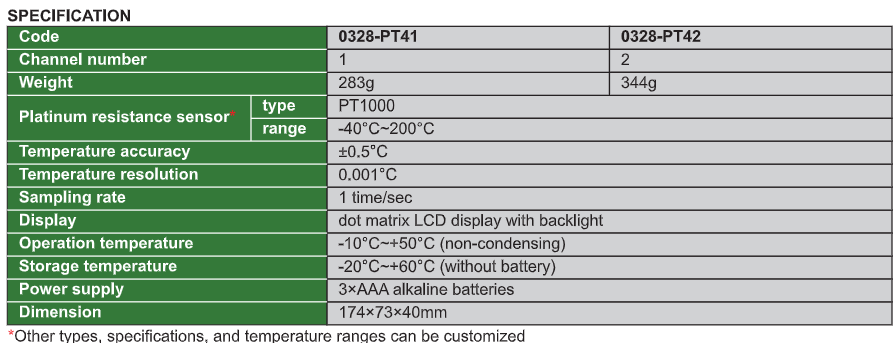

Specification

Parameter 0328-PT41 0328-PT42
Channel number 1 2
Weight 283g 344g
Platinum resistance sensor – type PT1000
Platinum resistance sensor – range -40°C~200°C
Temperature accuracy ±0.5°C
Temperature resolution 0.001°C
Sampling rate 1 time/sec
Display Dot matrix LCD display with backlight
Operation temperature -10°C~+50°C (non-condensing)
Storage temperature -20°C~+60°C (without battery)
Power supply 3×AAA alkaline batteries
Dimension 174×73×40mm

Standard Delivery

Main unit 1 pc
Battery (AAA) 3 pcs
PT1000 platinum resistance sensor (0328-PT1000) 1/2 pcs
