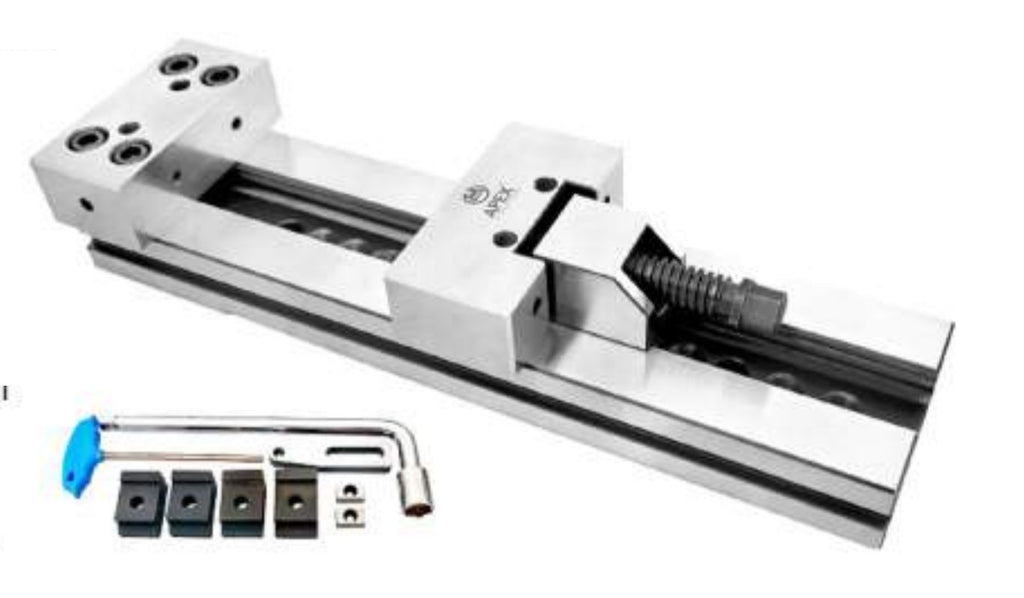

High Precision Modular Vice With Parallel Top Jaws - Apex Code 794

Save 22%

Size: 125 x 175 mm
Price:
Rs. 33,235 Rs. 42,540

Tax included Shipping calculated at checkout

Description

Features :
  • This Vice is designed for Precision Milling, Grinding, and widely used with CNC and standard milling machines.
  • Both moving and fixed blocks are precision ground with parallelism accuracy 0.01 mm and thus a precise and safely clamping.
  • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
  • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
  • Four extra tapped hole with ground back jaw rear face increase maximum opening capacity with the addition of jaws extensions.
  • EN - 353 steel, case hardened HRC 60 ± 2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
  • Same Bed High Maintained for gang milling operations.

Standard Accessories :

  • 1 Work Stopper, 1 Pair of standard 16 mm positioning key nuts
  • 4 Clamps, T Allen key, 1 Box wrench
Size L L1 H H1 H2 O W W1 T Weight in Kgs. Clamping Pressure in Kgs.
125 x 175 363 412 85 40 45 175 97 125 16 14.5 3000
150 x 225 450 515 100 50 50 225 125 150 16 26.5 4000
150 x 300 525 590 100 50 50 300 125 150 16 29 4000
