High Precision Digital Micrometer/ Snap Gages - 3359

Save 25%

Size: 3359-25 (0-25mm)
Price:
Rs. 33,545 Rs. 44,619

Tax included Shipping calculated at checkout

Description

Features:-

  • Absolute encoder, the original data remains after power off.
  • Adjustable Resolution : 0.0002MM/0.00001" , 0.001/0.00005" , 0.01/0.0005"
  • One turn of sleeve makes 5mm spindle feed
  • Measurement Accuracy is not affected by the use of sleeve

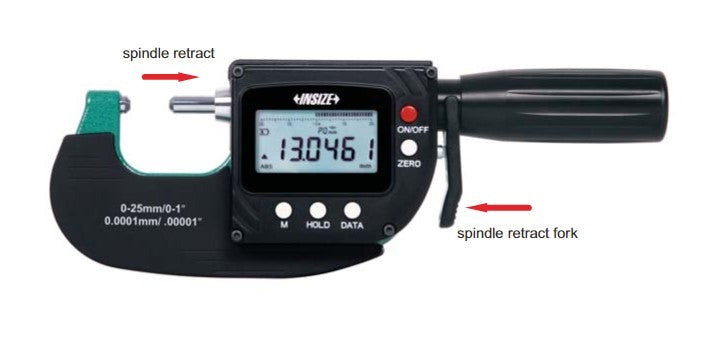

  • Press the fork, the spindle retracts 3mm
  • Linear ball bearings for ten million times use
  • Carbide spindle and anvil
  • Measuring force 7-10N
  • Customizable measuring force range 2-12N. Attention: small measuring force will reduce the dustproof and waterproof level
  • Button function: data output, tolerance, data preset, data hold, measuring direction, max./min./TIR, power-off time, on/off, zero,mm/inch, adjust  resolution
  • Supplied with gage blocks for zero setting
  • Power: rechargeable battery, for 24 hours continuous working
  • Data output
  • IP65 waterproof
  • Non - rotating
  • INSPECTION CERTIFICATE  TRACEABLE TO DKD LAB GERMANY

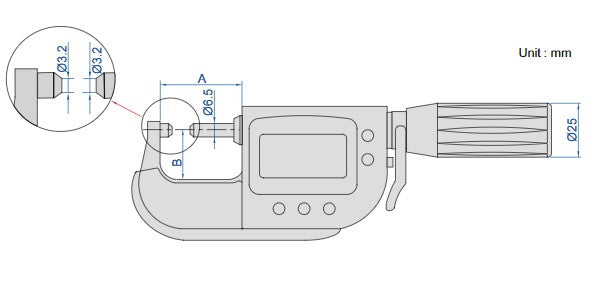

    Code  Range Accuracy Repeatability Measuring faces A B
    Flatness Parallelism
    3359-25 0-25mm/0-1" 2μm 1μm 0.5μm 1.2μm 38 24
    3359-25WL 25-50mm/1-2" 2μm 1μm 0.5μm 1.2μm 64 32.5
