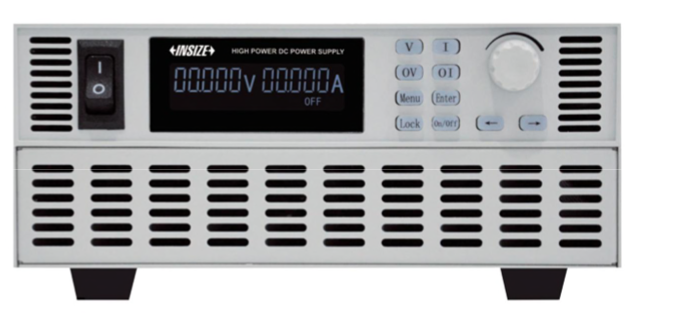

High Power DC Power Supplies - 9917

Save 25%

Size: 9917-FC3K61
Price:
Rs. 120,040 Rs. 159,652

Tax included Shipping calculated at checkout

Description

Specifications;-

  • High precision and low ripple
  • OVP/OCP/OPP/OTP protection
  • 2U half rack, suitable for system integration
  • Remote compensation function
  • Various communication interfaces
  • Customized specifications are available

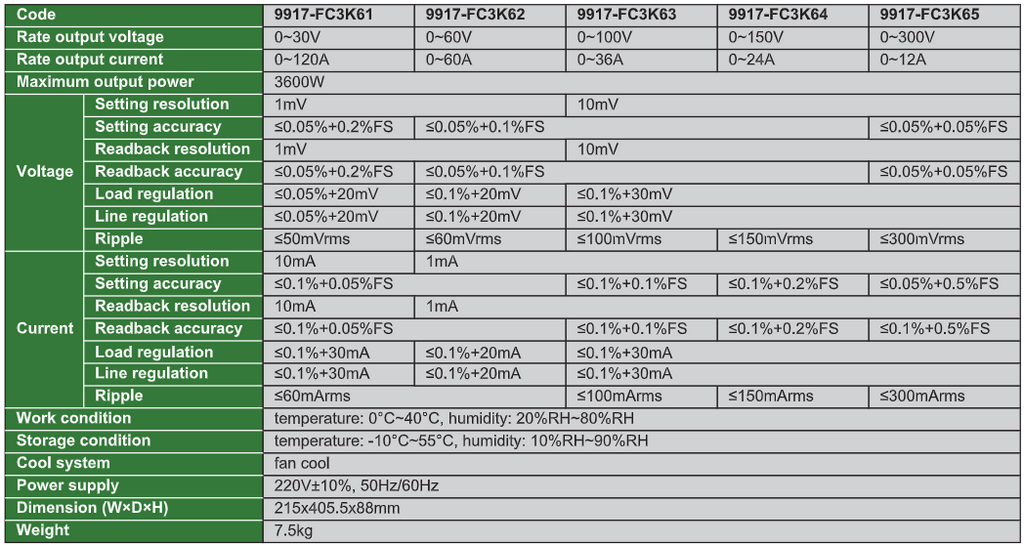

Code 9917-FC3K61 9917-FC3K62 9917-FC3K63 9917-FC3K64 9917-FC3K65
Rate output voltage 0~30V 0~60V 0~100V 0~150V 0~300V
Rate output current 0~120A 0~60A 0~36A 0~24A 0~12A
Maximum output power 3600W
Voltage Setting resolution 1mV 10mV
Setting accuracy ≤0.05%+0.2%FS ≤0.05%+0.1%FS ≤0.05%+0.05%FS
Readback resolution 1mV 10mV
Readback accuracy ≤0.05%+0.2%FS ≤0.05%+0.1%FS ≤0.05%+0.05%FS
Load regulation ≤0.05%+20mV ≤0.1%+20mV ≤0.1%+30mV
Line regulation ≤0.05%+20mV ≤0.1%+20mV ≤0.1%+30mV
Ripple ≤50mVrms ≤60mVrms ≤100mVrms ≤150mVrms ≤300mVrms
Setting resolution 10mA 1mA
Setting accuracy ≤0.1%+0.05%FS ≤0.1%+0.1%FS ≤0.1%+0.2%FS ≤0.05%+0.5%FS
Current Readback resolution 10mA 1mA
Readback accuracy ≤0.1%+0.05%FS ≤0.1%+0.1%FS ≤0.1%+0.2%FS ≤0.1%+0.5%FS
Load regulation ≤0.1%+30mA ≤0.1%+20mA ≤0.1%+30mA
Line regulation ≤0.1%+30mA ≤0.1%+20mA ≤0.1%+30mA
Ripple ≤60mArms ≤100mArms ≤150mArms ≤300mArms
Work condition temperature: 0°C~40°C humidity: 20%RH~80%RH
Storage condition temperature: -10°C~55°C humidity: 10%RH~90%RH
Cool system fan cool
Power supply 220V±10% 50Hz/60Hz

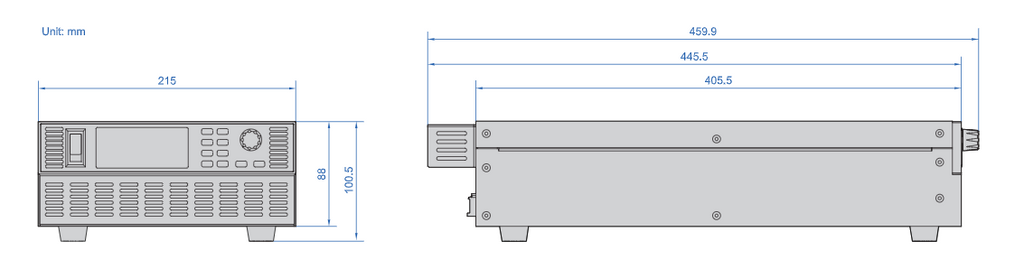

Dimension (W×D×H) 215x405.5x88mm
Weight 7.5kg
