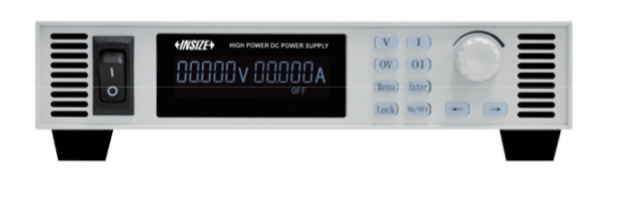

High Power DC Power Supplies - 9915

Save 25%

Size: 9915-NCK61
Price:
Rs. 57,679 Rs. 76,710

Tax included Shipping calculated at checkout

Description

Specification:-

  • High precision and low ripple
  • OVP/OCP/OPP/OTP protection
  • 1U half rack, suitable for system integration
  • Remote compensation function
  • Various communication interfaces

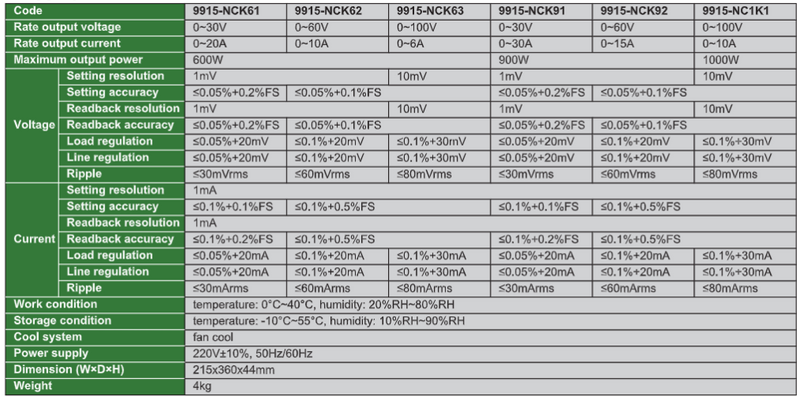

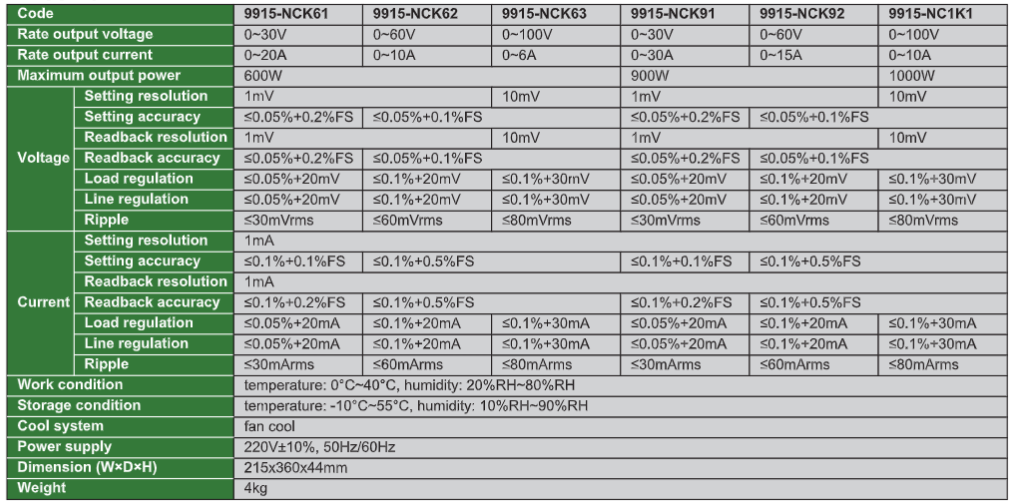

Code 9915-NCK61 9915-NCK62 9915-NCK63 9915-NCK91 9915-NCK92 9915-NC1K1
Rate output voltage 0~30V 0~60V 0~100V 0~30V 0~60V 0~100V
Rate output current 0~20A 0~10A 0~6A 0~30A 0~15A 0~10A
Maximum output power 600W 900W 1000W
Voltage Setting resolution 1mV 1mV 10mV
Setting accuracy ≤0.05%+0.2%FS ≤0.05%+0.1%FS ≤0.05%+0.2%FS ≤0.05%+0.1%FS
Readback resolution 1mV 10mV 1mV 10mV
Readback accuracy ≤0.05%+0.2%FS ≤0.05%+0.1%FS ≤0.05%+0.2%FS ≤0.05%+0.1%FS
Load regulation ≤0.05%+20mV ≤0.1%+20mV ≤0.1%+30mV ≤0.05%+20mV ≤0.1%+20mV
Line regulation ≤0.05%+20mV ≤0.1%+20mV ≤0.1%+30mV ≤0.05%+20mV ≤0.1%+20mV
Ripple ≤30mVrms ≤60mVrms ≤80mVrms ≤30mVrms ≤60mVrms
Setting resolution 1mA
Setting accuracy ≤0.1%+0.1%FS ≤0.1%+0.5%FS ≤0.1%+0.1%FS ≤0.1%+0.5%FS
Readback resolution 1mA
Current Readback accuracy ≤0.1%+0.2%FS ≤0.1%+0.5%FS ≤0.1%+0.2%FS ≤0.1%+0.5%FS
Load regulation ≤0.05%+20mA ≤0.1%+20mA ≤0.1%+30mA ≤0.05%+20mA ≤0.1%+20mA
Line regulation ≤0.05%+20mA ≤0.1%+20mA ≤0.1%+30mA ≤0.05%+20mA ≤0.1%+20mA
Ripple ≤30mArms ≤60mArms ≤80mArms ≤30mArms ≤60mArms
Work condition temperature: 0°C40°C, humidity: 20%RH80%RH
Storage condition temperature: -10°C55°C, humidity: 10%RH90%RH
Cool system fan cool
Power supply 220V±10%, 50Hz/60Hz

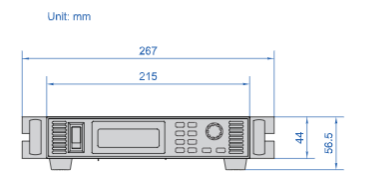

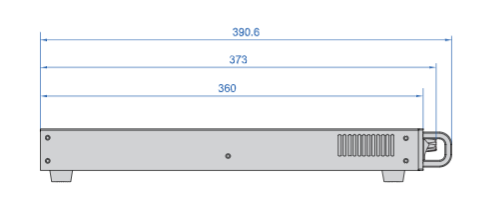

Dimension (W×D×H) 215x360x44mm
Weight 4kg
