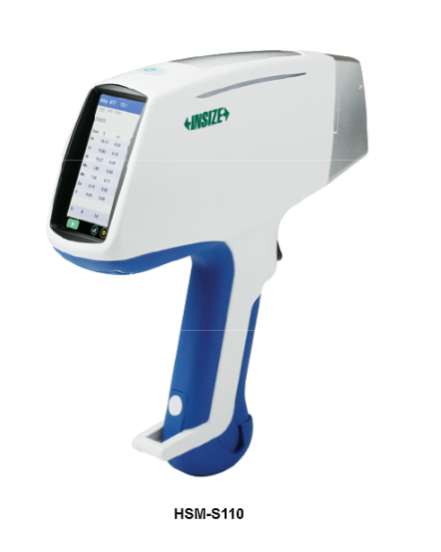

Handheld XRF Alloy Analyzers (Advance Type)- HSM-S

Save 25%

Model no.: HSM-S110
Price:
Rs. 1,743,479 Rs. 2,318,819

Tax included Shipping calculated at checkout

Description

Features:-

  • Widely used in alloy identification, metal scrap recycling, and quality assurance/control processes within the metal manufacturing industry
  • Analyzable alloy series: aluminum-based Alloys, cobalt-based alloys, titanium-based alloys, molybdenum/tungsten alloys, nickel-based alloys, copper-based alloys, iron-based alloys (stainless steels, chromium/molybdenum alloys, low alloy steels, tool steels, seamless steels)
  • High accuracy, fast measurement speed, and intuitive display of alloy grades, element percentages (with up to 0.001% resolution), and ppm-level concentrations
  • The analysis cycle is completed in seconds with one-touch operation
  • Non-Destructive Testing (NDT), which ensures no damage to the sample during the testing process
  • No sample preparation is required; direct measurement can be performed on the sample surface
  • Can be customized & Data Output available
  • Built-in 380 alloy grades, expandable with 2 user-defined grade libraries

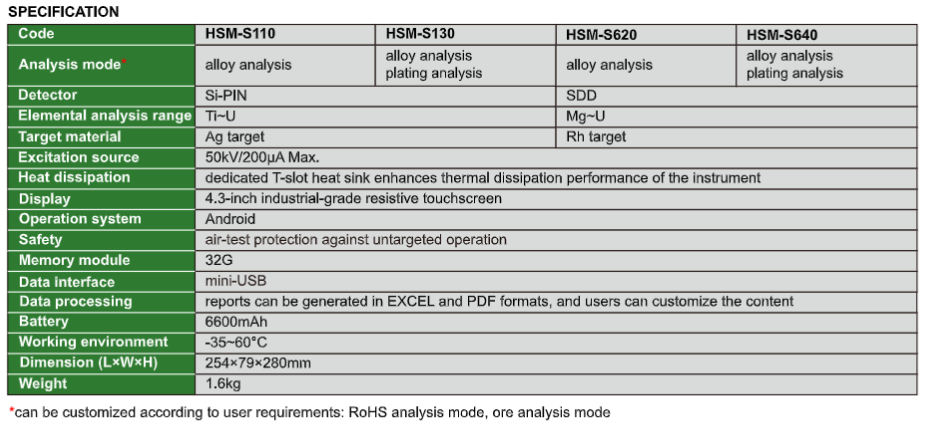

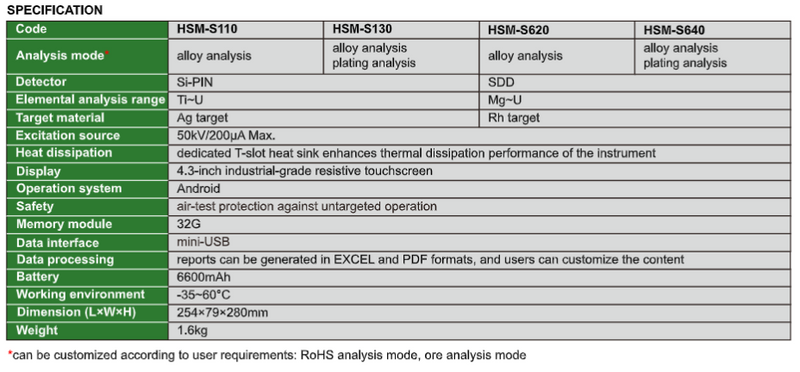

Code HSM-S110 HSM-S130 HSM-S620 HSM-S640
Analysis mode * alloy analysis alloy analysis plating analysis alloy analysis alloy analysis plating analysis
Detector Si-PIN SDD
Elemental analysis range Ti~U Mg~U
Target material Ag target Rh target
Excitation source 50kV/200μA Μax.
Heat dissipation dedicated T-slot heat sink enhances thermal dissipation performance of the instrument
Display 4.3-inch industrial-grade resistive touchscreen
Operation system Android
Safety air-test protection against untargeted operation
Memory module 32G
Data interface mini-USB
Data processing reports can be generated in EXCEL and PDF formats, and users can customize the content
Battery 6600mAh
Working environment -35~60°C
Dimension (L×W×H) 254×79×280mm
Weight 1.6kg
