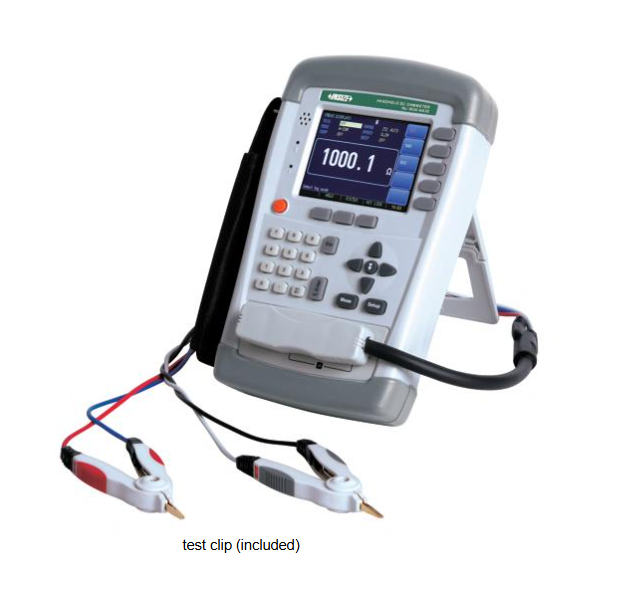

Handheld DC Ohm Meter - 9650

Save 25%

Size: 9650-HA20
Price:
Rs. 118,789 Rs. 158,379

Tax included Shipping calculated at checkout

Description

Features:-

  • Maximum reading: 20000
  • Basic accuracy: 0.05%
  • 3.5 inch LCD screen with adjustable backlight
  • Temperature compensation function
  • Full-range short-circuit zero function
  • Comparator function: upper and lower limit alarms
  • Data hold
  • Keyboard lock function
  • Automatic power off

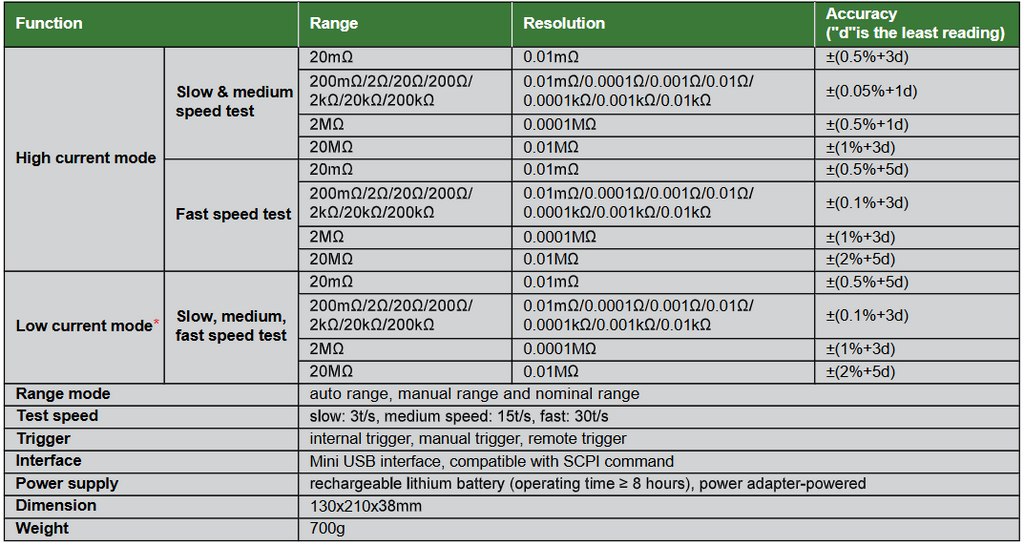

Specification:-

Function Range Resolution Accuracy
High current mode Slow & medium speed test 20mΩ 0.01mΩ ±(0.5%+3d)
200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ/200kΩ 0.01mΩ/0.0001Ω/0.001Ω/0.01Ω/0.0001kΩ/0.001kΩ/0.01kΩ ±(0.05%+1d)
2MΩ 0.0001MΩ ±(0.5%+1d)
20MΩ 0.01MΩ ±(1%+3d)
Fast speed test 20mΩ 0.01mΩ ±(0.5%+5d)
200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ/200kΩ 0.01mΩ/0.0001Ω/0.001Ω/0.01Ω/0.0001kΩ/0.001kΩ/0.01kΩ ±(0.1%+3d)
2MΩ 0.0001MΩ ±(1%+3d)
20MΩ 0.01MΩ ±(2%+5d)
Low current mode* Slow, medium, fast speed test 20mΩ 0.01mΩ ±(0.5%+5d)
200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ/200kΩ 0.01mΩ/0.0001Ω/0.001Ω/0.01Ω/0.0001kΩ/0.001kΩ/0.01kΩ ±(0.1%+3d)
2MΩ 0.0001MΩ ±(1%+3d)
20MΩ 0.01MΩ ±(2%+5d)
Range mode auto range, manual range and nominal range
Test speed slow: 3t/s, medium speed: 15t/s, fast: 30t/s
Trigger internal trigger, manual trigger, remote trigger
Interface Mini USB interface, compatible with SCPI command
Power supply rechargeable lithium battery (operating time ≥ 8 hours), power adapter-powered
Dimension (L×W×H) 130×210×38mm
Weight 700g

* When using the 2MΩ and 20MΩ ranges, it is recommended to select the high current mode.

Standard Delivery:-

  • Main unit
  • Power adapter
  • Mini USB communication cable
  • Test clip

Optional Accessory:-

  • Test probe (code: 9650-TL)
