Handheld Airborne Particle Counter -0811

Save 25%

Size: 0811-CA01
Price:
Rs. 247,319 Rs. 329,759

Tax included Shipping calculated at checkout

Description

Description

The Insize 0811-CA01 Handheld Airborne Particle Counter is widely used in electronic production clean rooms, filter leakage detection, biological safety monitoring, HVAC systems, server rooms, food packaging environments, pharmaceutical and medical device production, hospital clean operating rooms, and automotive spraying environments. Using a semiconductor laser sensor, it measures the size and number of dust particles per unit volume of air, and can be set to alarm at different clean-room purification levels.

Features

  • Simultaneous counting across six particle-size channels (0.3µm, 0.5µm, 1µm, 3µm, 5µm, 10µm)
  • Stores data by room number, with 95% upper confidence limit (UCL) calculation per room
  • Clean-room level alarm (Class 100 to 1,000,000) and low-battery alarm
  • Stores 1000 sets of data with no loss on power failure
  • Connects to a PC data acquisition system for remote control
  • Single, repeated, continuous, calculate and remote sampling modes

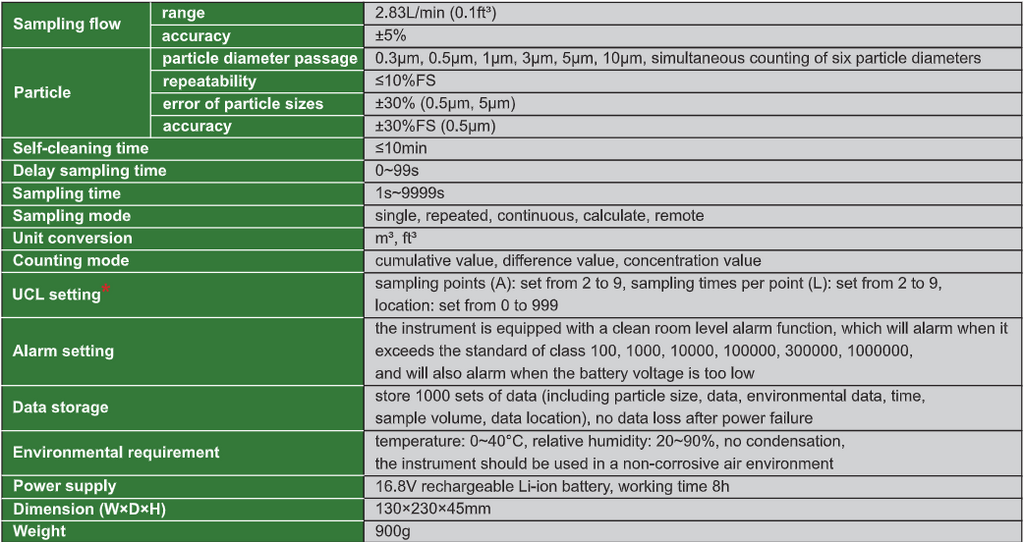

Specification

Category Parameter Value
Flow range 2.83L/min (0.1ft³)
Flow accuracy ±5%
Particle Particle diameter passage 0.3µm, 0.5µm, 1µm, 3µm, 5µm, 10µm, simultaneous counting of six particle diameters
Repeatability ≤10%FS
Error of particle sizes ±30% (0.5µm, 5µm)
Accuracy ±30%FS (0.5µm)
Self-cleaning time ≤10min
Delay sampling time 0~99s
Sampling time 1s~9999s
Sampling mode Single, repeated, continuous, calculate, remote
Unit conversion m³, ft³
Counting mode Cumulative value, difference value, concentration value
UCL setting* Sampling points (A): 2 to 9; sampling times per point (L): 2 to 9; location: 0 to 999
Alarm setting Clean room level alarm at Class 100, 1000, 10000, 100000, 300000, 1000000; low battery voltage alarm
Data storage Stores 1000 sets of data (particle size, data, environmental data, time, sample volume, data location), no data loss after power failure
Environmental requirement Temperature: 0~40°C; Relative humidity: 20~90%, no condensation; non-corrosive air environment
Power supply 16.8V rechargeable Li-ion battery, working time 8h
Dimension (W×D×H) 130×230×45mm
Weight 900g

*UCL is the upper confidence limit of 95%

Standard Delivery

Main unit 1 pc

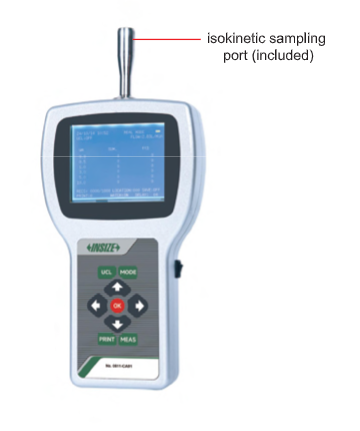

Isokinetic sampling port 1 pc
High efficiency filter (0811-CA01-F) 1 pc
Communication cable 1 set
Adapter 1 pc
USB disk 1 pc

Optional Accessory

Printer 0811-CA01-PRINTER
Temperature and humidity sensors 0811-CA01-THW
Tripod 0701-TR175
