Electronic Universal Testing Machines (Advance Type) - UTM-GA

Save 25%

Model no.: UTM-GA50
Price:
Rs. 2,056,005 Rs. 2,734,489

Tax included Shipping calculated at checkout

Description

Features:-

  • According to GB/T, ISO, ASTM etc.
  • For testing and researching the mechanical properties such as tension,
  • compression, bending, shear, peeling and tearing of products including plastics,
  • rubber, wires, electronic connectors (for insertion and extraction), metal wires,
  • films, textiles, adhesives, biomaterials, elastomers, food packaging, small components, paper and springs

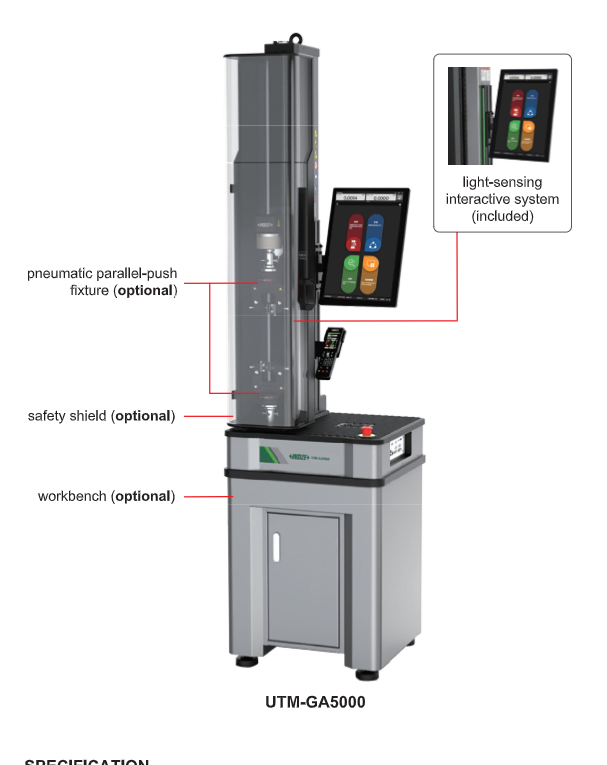

  • Single-column structure, with compactness and high rigidity
  • With powerful operation and analysis software
  • With touchscreen and button integrated control box
  • https://www.insize.in/page-8-2783.html
  • MATERIAL AGAINST ORDER

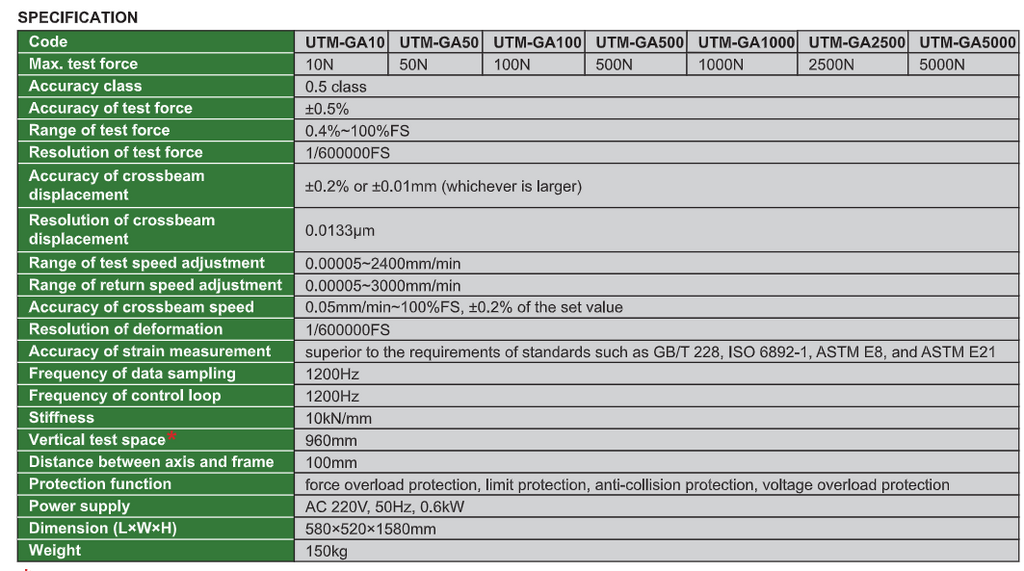

Code UTM-GA50 UTM-GA500 UTM-GA5000
Max. test force 50N 500N 5000N
Accuracy class 0.5 class 0.5 class 0.5 class
Accuracy of test force ±0.5% ±0.5% ±0.5%
Range of test force 0.4%~100%FS 0.4%~100%FS 0.4%~100%FS
Resolution of test force 1/600000FS 1/600000FS 1/600000FS
Accuracy of crossbeam displacement ±0.2% or ±0.01mm (whichever is larger) ±0.2% or ±0.01mm (whichever is larger) ±0.2% or ±0.01mm (whichever is larger)
Resolution of crossbeam displacement 0.0133µm 0.0133µm 0.0133µm
Range of test speed adjustment 0.00005~2400mm/min 0.00005~2400mm/min 0.00005~2400mm/min
Range of return speed adjustment 0.00005~3000mm/min 0.00005~3000mm/min 0.00005~3000mm/min
Accuracy of crossbeam speed 0.05mm/min~100%FS, ±0.2% of the set value 0.05mm/min~100%FS, ±0.2% of the set value 0.05mm/min~100%FS, ±0.2% of the set value
Resolution of deformation 1/600000FS 1/600000FS 1/600000FS
Accuracy of strain measurement superior to the requirements of standards such as GB/T 228, ISO 6892-1, ASTM E8, and ASTM E21 superior to the requirements of standards such as GB/T 228, ISO 6892-1, ASTM E8, and ASTM E21 superior to the requirements of standards such as GB/T 228, ISO 6892-1, ASTM E8, and ASTM E21
Frequency of data sampling 1200Hz 1200Hz 1200Hz
Frequency of control loop 1200Hz 1200Hz 1200Hz
Stiffness 10kN/mm 10kN/mm 10kN/mm
Vertical test space * 960mm 960mm 960mm
Distance between axis and frame 100mm 100mm 100mm
Protection function force overload protection, limit protection, anti-collision protection, voltage overload protection force overload protection, limit protection, anti-collision protection, voltage overload protection force overload protection, limit protection, anti-collision protection, voltage overload protection
Power supply AC 220V, 50Hz, 0.6kW AC 220V, 50Hz, 0.6kW AC 220V, 50Hz, 0.6kW
Dimension (L×W×H) 580×520×1580mm 580×520×1580mm 580×520×1580mm
Weight 150kg 150kg 150kg
