Electronic Peel Testers - DTM-CA/CB

Save 25%

Model no.: DTM-CA05
Price:
Rs. 322,645 Rs. 429,120

Tax included Shipping calculated at checkout

Description

Features:-

  • According to GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791 GB/T 2792, QB/T 2358, YYT 0507, YYT 0148, JIS-Z 0237, HG/T 2406-2002
  • Suitable for the peeling, shearing and pulling off performance test of adhesive, release paper, adhesive tape, self-adhesive, composite m artificial leather, woven bag, film, paper, electronic carrier tape and other products
  • Industrial touch screen, easy operation
  • Three measurement modes: maximum, real-time and average values
  • Test results can be output for group statistical analysis
  • Supplied with inspection certificate.

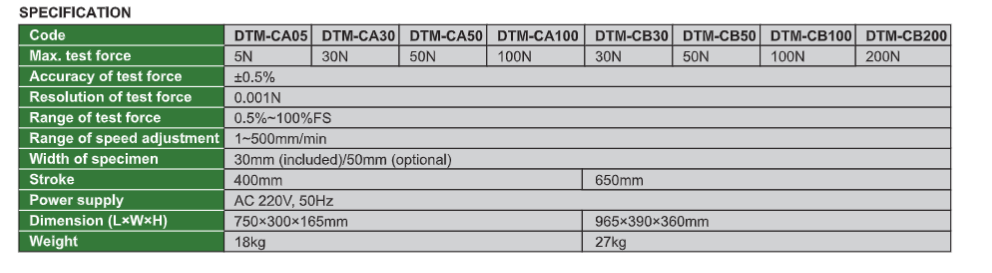

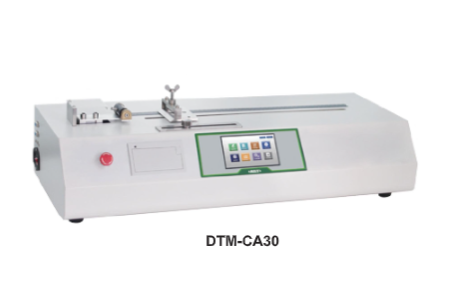

Code DTM-CA05 DTM-CA30 DTM-CA50 DTM-CA100
Max. test force 5N 30N 50N 100N
Accuracy of test force ±0.5%
Resolution of test force 0.001N
Range of test force 0.5%~100%FS
Range of speed adjustment 1~500mm/min
Width of specimen 30mm (included)/50mm (optional)
Stroke 400mm
Power supply AC 220V, 50Hz
Dimension (L×W×H) 750×300×165mm
Weight 18kg

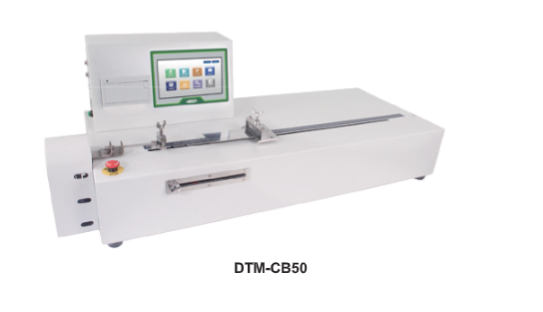

Code DTM-CB30 DTM-CB50 DTM-CB100 DTM-CB200
Max. test force 30N 50N 100N 200N
Accuracy of test force ±0.5%
Resolution of test force 0.001N
Range of test force 0.5%~100%FS
Range of speed adjustment 1~500mm/min
Width of specimen 30mm (included)/50mm (optional)
Stroke 650mm
Power supply AC 220V, 50Hz
Dimension (L×W×H) 965X390X360mm
Weight 27kg
