Electric Aluminum Hardness Tester - ISHW-ED/EH

Save 25%

Model no.: ISHW-ED21
Price:
Rs. 118,089 Rs. 157,059

Tax included Shipping calculated at checkout

Description

Features:-

  • According to ASTM 8647
  • To measure the hardness of soft metal such as aluminum profiles, tubes, plates, aluminum parts copper alloy and other soft mentals
  • Easy to carry and read
  • Using one-button measurement micro servo motor as the power, accurate control of the applied force, improve the stability of the measurement
  • The needle is made of special material for long life
  • One button measurement

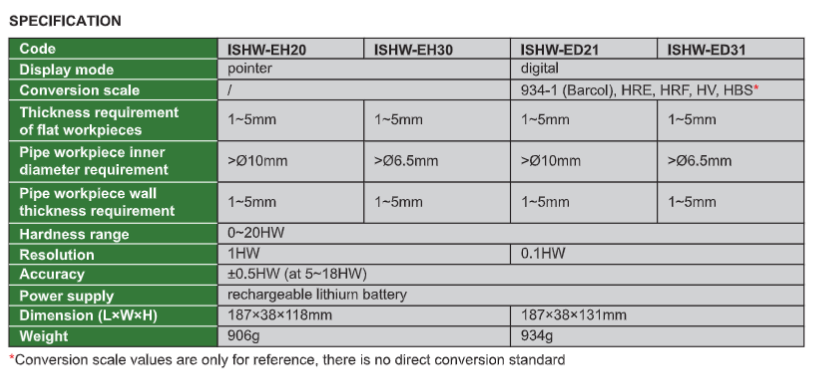

Code ISHW-EH20 ISHW-EH30 ISHW-ED21 ISHW-ED31
Display mode pointer digital
Conversion scale
934-1 (Barcol), HRE, HRF, HV, HBS*
Thickness requirement of flat workpieces 1~5mm 1~5mm 1~5mm 1~5mm
Pipe workpiece inner diameter requirement >Ø10mm >Ø6.5mm >Ø10mm >Ø6.5mm
Pipe workpiece wall thickness requirement 1~5mm 1~5mm 1~5mm 1~5mm
Hardness range 0~20HW
Resolution 1HW 0.1HW
Accuracy ±0.5HW (at 5~18HW)
Power supply rechargeable lithium battery
Dimension (L×W×H) 187×38×118mm 187×38×131mm
Weight 906g 934g
