Dynamic Torque Sensors (Compact Type) - IST-IR

Save 25%

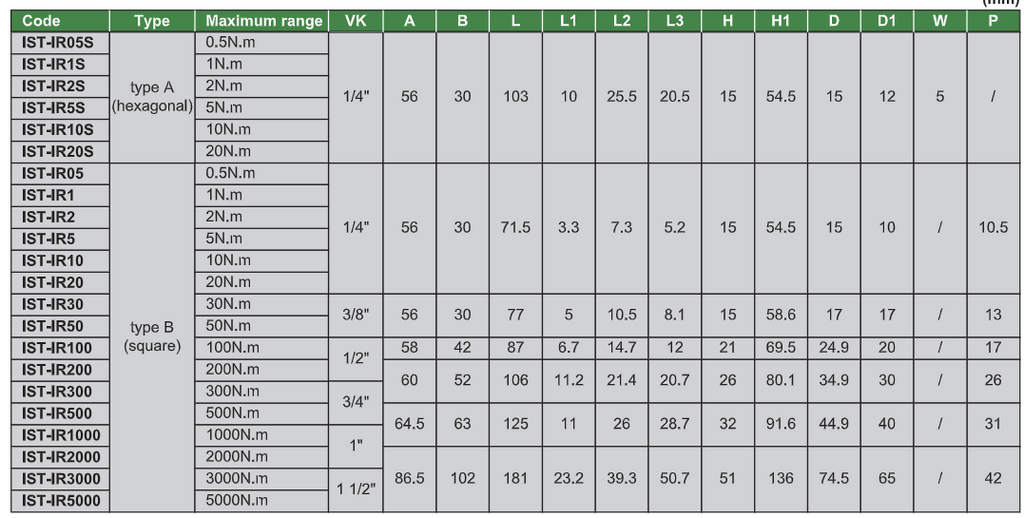

Size: IST-IR10 (10N.m)
Price:
Rs. 132,385 Rs. 176,069

Tax included Shipping calculated at checkout

Description

Specifications:-

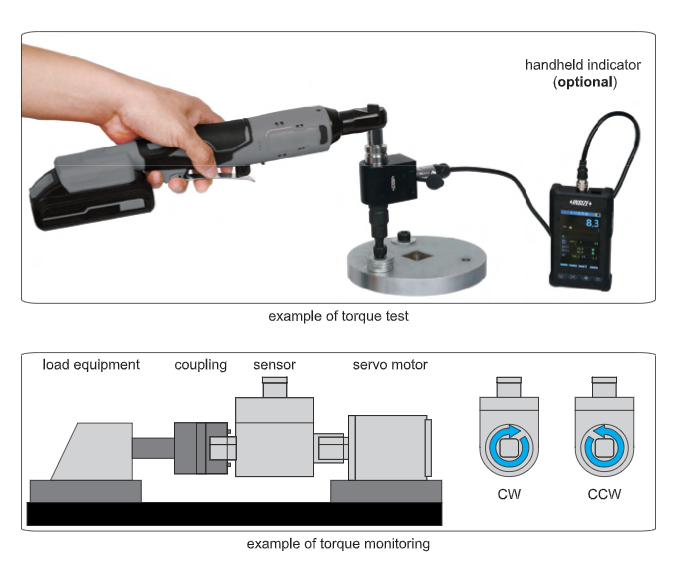

  • Applications for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools and torque monitoring
  • Clockwise and counter-clockwise operation
  • High overall accuracy, good long-term stability
  • Supplied with manufacturer inspection certificate.
  • angle encoder can be customized

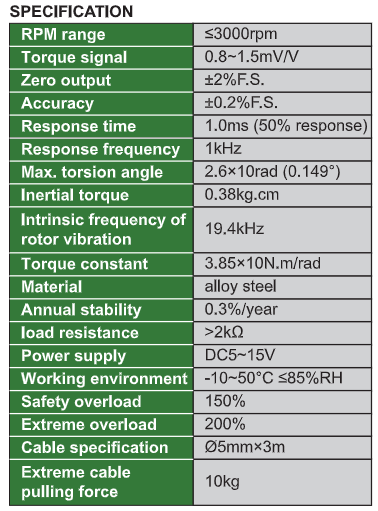

**RPM range** ≤3000rpm
**Torque signal** 0.8~1.5mV/V
**Zero output** ±2%F.S.
**Accuracy** ±0.2%F.S.
**Response time** 1.0ms (50% response)
**Response frequency** 1kHz
**Max. torsion angle** 2.6×10rad (0.149°)
**Inertial torque** 0.38kg.cm
**Intrinsic frequency of rotor vibration** 19.4kHz
**Torque constant** 3.85×10N.m/rad
**Material** alloy steel
**Annual stability** 0.3%/year
**load resistance** >2kΩ
**Power supply** DC5~15V
**Working environment** -10~50°C ≤85%RH
**Safety overload** 150%
**Extreme overload** 200%

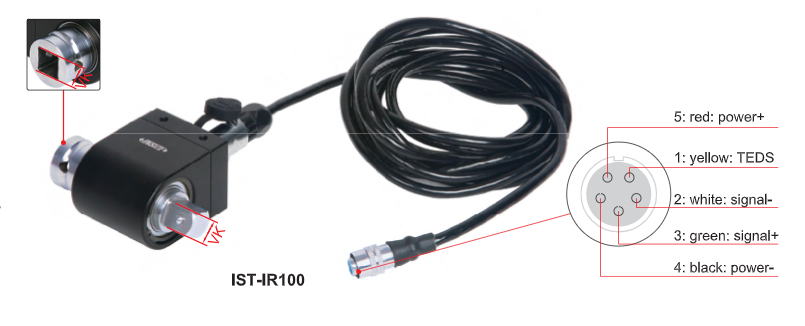

**Cable specification** Ø5mm×3m
**Extreme cable pulling force** 10kg
