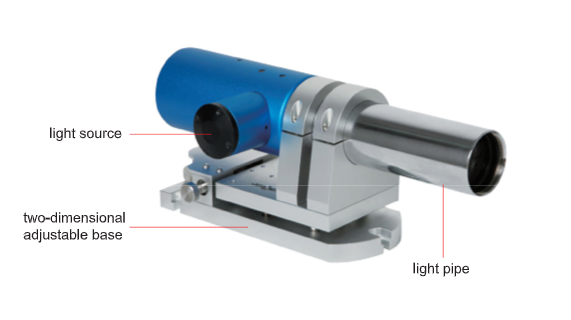

Dual Axis Photoelectric Autocollimator - CMS

Save 25%

Size: CMS-L401
Price:
Rs. 462,869 Rs. 615,615

Tax included Shipping calculated at checkout

Description

Features:-

  • Dual axis simultaneous measurement, convenient and efficient
  • Electronic eyepiece, low aiming error
  • High resolution photodetector, high measurement accuracy
  • Semiconductor LED light source, long service life of the light source
  • Automatic curve plotting, automatic error calculation
  • Multiple data processing methods, can generate standard Excel reports

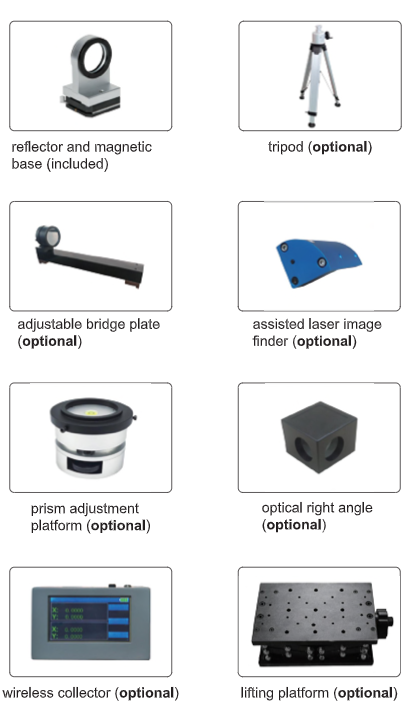

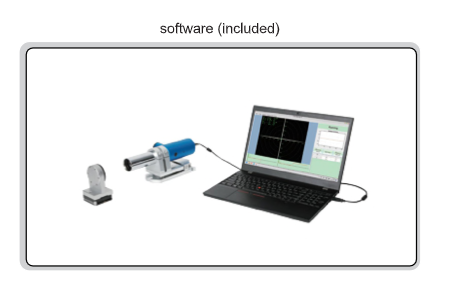

  • Selection of different accessories and measurement software modules. for different measurement needs

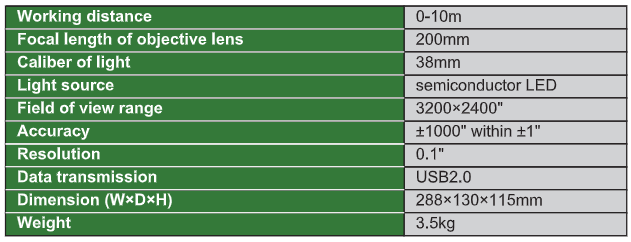

Working distance 0-10m
Focal length of objective lens 200mm
Caliber of light 38mm
Light source semiconductor LED
Field of view range 3200×2400"
Accuracy ±1000" within ±1"
Resolution 0.1"
Data transmission USB2.0
Dimension (W×D×H) 288×130×115mm
Weight 3.5kg
