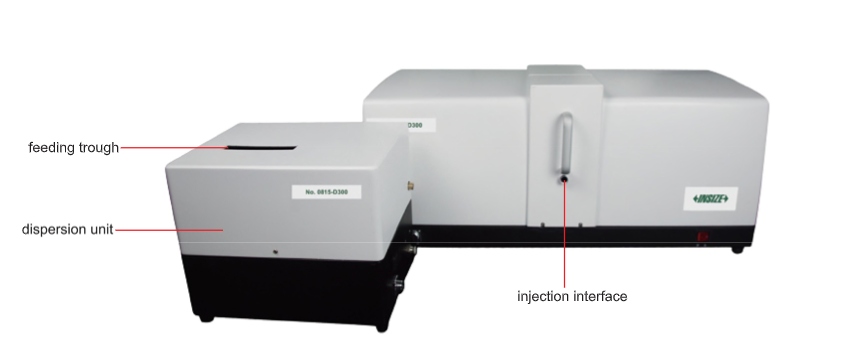

Dry Laser Particle Size Analyzer (Basic Type) - 0815

Save 25%

Size: 0815-D300
Price:
Rs. 1,956,839 Rs. 2,602,595

Tax included Shipping calculated at checkout

Description

Specifications:-

  • According to GB/T 19077-2016, ISO 13320: 2009
  • Suitable for any powdered material, particularly good for materials which react with water, or shape change in liquids
  • It can be used for metal and non-metal powder, cements, pharmaceuticals, fillers, catalysts, additives, lubricants, coal powder, mud and sand, dust, foodstuffs, graphites, photographic materials, calcium carbonate, kaolin and other powdery materials
  • Using air as the dispersing medium and the principle of turbulent dispersion, ensure that the sample is thoroughly dispersed
  • Based on the MIE scattering theory, converging Fourier transform optical path, and with He-Ne laser photodetectors
  • Just need put in the sample, dust collection, air supply, feeding are all done automatically
Measuring range 0.1μm~300μm
Channels number 56pcs
Accuracy ≤1%
Repeatability ≤1%
Dispersion method dry-turbulence dispersion
Dispersing medium compressed air
Test speed <1min for each time
Software function analysis mode free distribution R-R distribution logarithm normal distribution mesh number classification
statistic method volume distribution quantity distribution
statistic comparison several testing results of samples different batches of samples testing result samples before and after processing test result of samples in different time
figure out percentage according to the particle size
user-defined analysis figure out particle size according to the percentage
figure out percentage according to the particle size range
operation mode automatically control air flow speed dispersion test and analysis
test report word excel photo (bmp) text etc.
Power supply 220V, 50Hz
Dimension main unit: 765×450×325mm dispersion unit: 260×285×135mm
Weight 36kg
