Digital Ultrasonic Flaw Detector UFD-T680

Save 25%

Size: UFD-T680
Price:
Rs. 136,229 Rs. 181,185

Tax included Shipping calculated at checkout

Description

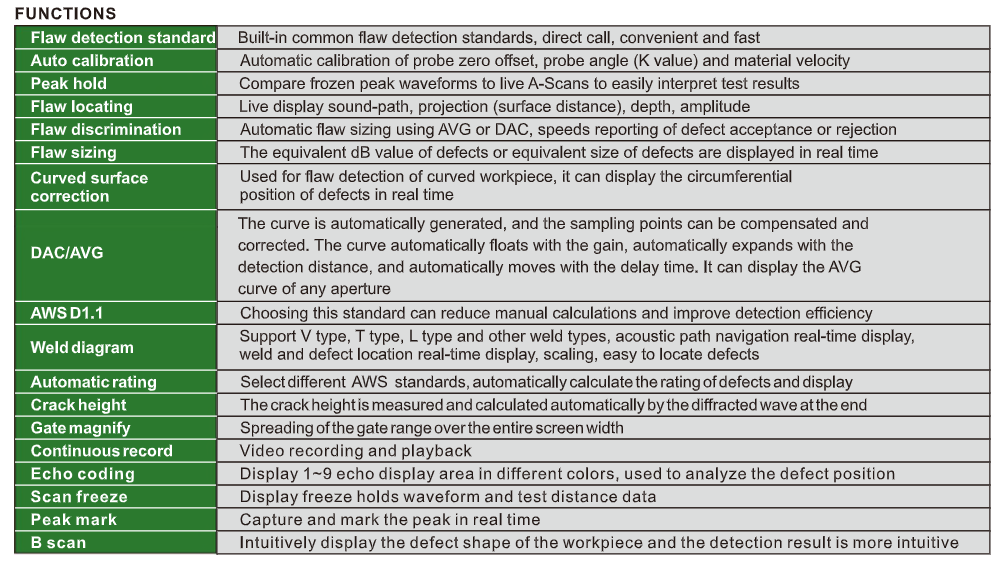

Features:-

  • The all-aluminum metal shell is strong and durable, and the electromagnetic shielding performance is very good
  • tempered glass panel, extremely hard, wear-resistant and scratch resistant
  • Full digital multi-color high resolution (460x480 pixels), TFT LCD display
  • 4 operating interface styles can be selected according to the environment
  • Real-time screenshots of all pages and flaws detection reports, and save them as BMP pictures to u disk
  • export the flaw detection report as a PDF file
  • unique Fn multifunction key design
  • There is no limit of the number and duration of video recording through U disk
  • Memory of 500 channel files to store calibration setups and probe parameter
  • Memory of 1000 waves report files to store A-scan wave and settings.
  • Two fully independent gates offer a range of measurement options for signal height or distance using peak triggering.
  • can choose to set the incoming wave alarm, accompanied by LED light display
  • selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.
  • the unique automatic gain adjustment and gain scanning function make flaw detection fast and accurate

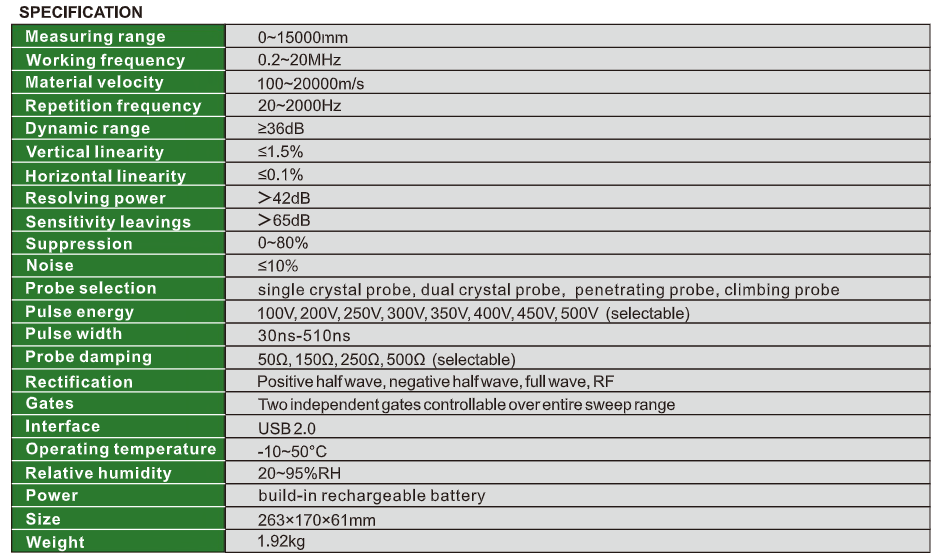

    Measuring range 0~15000mm
    Working frequency 0.2-20MHz
    Material velocity 100-2000m/s
    Repetition Frequency 20-2000Hz
    Dynamic range >36db
    Vertical linearity <1.50%
    Horizontal linearity <0.10%
    Resolving power >42db
    Sensitivity leavings >65db
    Suppression 0-80%
    Noise <10%

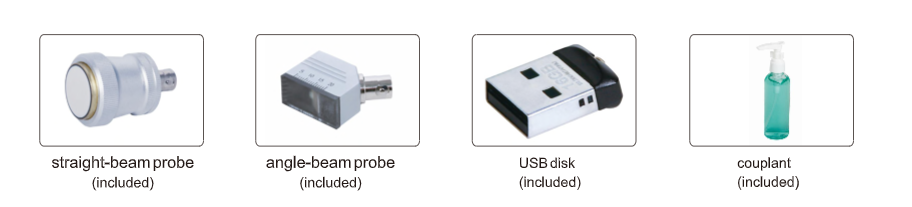

    Probe selection single crystal probe, dual crystal probe, penetrating probe, climbing probe
    pulse energy  100V, 200V, 250V, 300V, 350V, 400V, 450V, 500V, (selectable)
    Pulse width 30ns-510ns
    Probe damping 50Ω, 150Ω, 250Ω, 500Ω
    Rectification Positive half wave, negative half wave, full wave, RF
    Gates Two independent gates controllable over entire sweep range
    Interface USB 2.0
    Operating temperature -10~50°C
    Relative humidity 20~95%RH
    Power  build-in rechargeable battery
    Size 263x170x61mm
    Weight 1.92Kg
