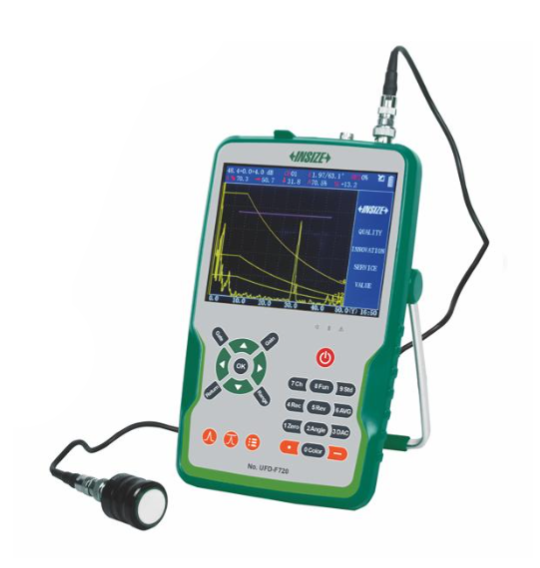

Digital Ultrasonic Flaw Detector (Standard Type) - UFD-F270

Save 25%

Model no.: UFD-F720
Price:
Rs. 588,619 Rs. 782,860

Tax included Shipping calculated at checkout

Description

Features:-

  • Compact and lightweight, easy to carry
  • High sensitivity, accurate defect positioning, super anti-interference ability, stable and reliable performance
  • Built-in automatic performance test function
  • Unique square wave excitation signal processing technology
  • The background color and brightness can be freely adjusted to adapt to strong or low light environments to ensure a clear display
  • Real-time dynamic recording of detection waveforms, data, rapid export via U disk

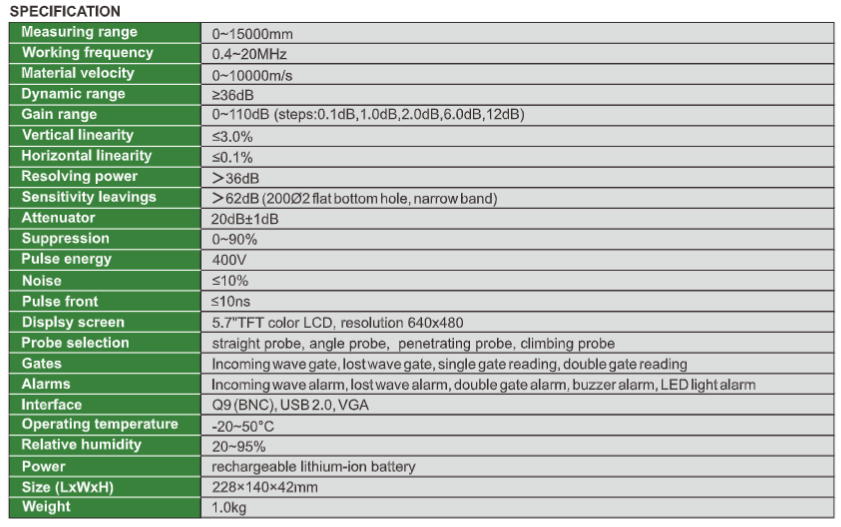

Measuring range 0~15000mm
Working frequency 0.4~20MHz
Material velocity 0~10000m/s
Dynamic range ≥36dB
Gain range 0~110dB (steps:0.1dB, 1.0dB, 2.0dB,6.0dB, 12dB)
Vertical linearity ≤3.0%
Horizontal linearity ≤0.1%
Resolving power >36dB
Sensitivity leavings >62dB (20002 flat bottom hole, narrow band)
Attenuator 20dB±1dB
Suppression 0~90%
Pulse energy 400V
Noise ≤10%
Pulse front ≤10ns
Displsy screen 5.7"TFT color LCD, resolution 640x480

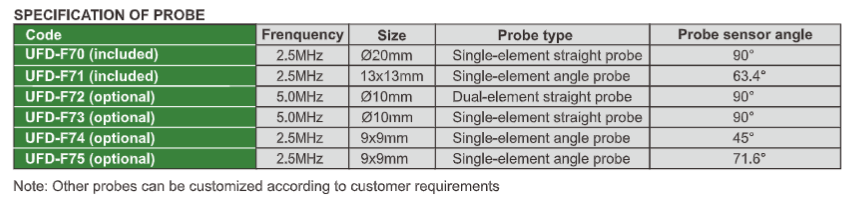

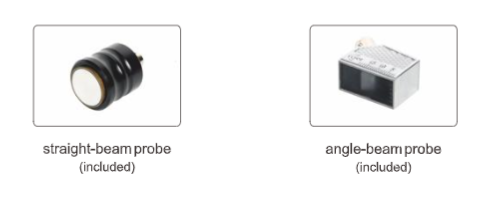

Probe selection straight probe, angle probe, penetrating probe, climbing probe

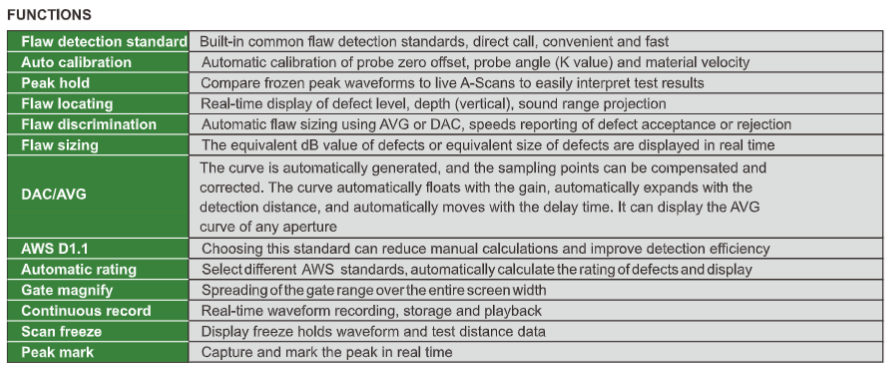

Gates Incoming wave gate, lost wave gate, single gate reading, double gate reading
Alarms Incoming wave alarm, lost wave alarm, double gate alarm, buzzer alarm, LED light alarm
Interface Q9 (BNC), USB 2.0, VGA
Operating temperature -20~50°C
Relative humidity 20~95%
Power rechargeable lithium-ion battery
Size (LxWxH) 228×140×42mm
Weight 1.0kg
