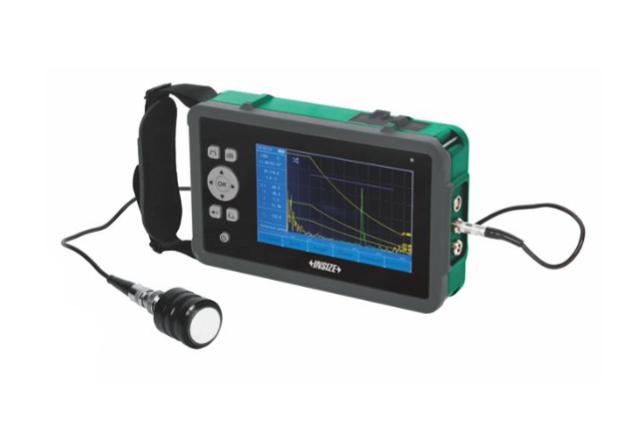

Digital Ultrasonic Flaw Detector (Excellent Type)- UFD-C

Save 25%

Model no.: UFD-C870
Price:
Rs. 820,925 Rs. 1,091,829

Tax included Shipping calculated at checkout

Description

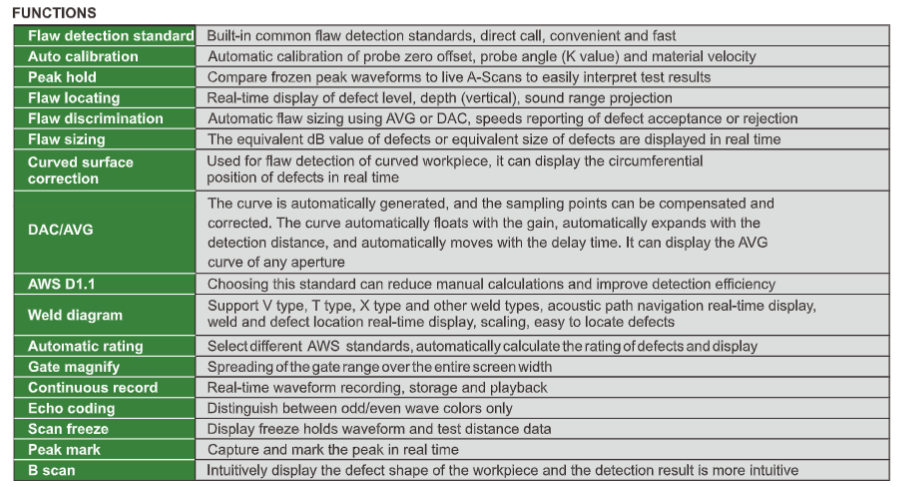

Features:-

  • Small size, light weight, long battery standby time
  • High sensitivity, accurate defect positioning, super anti-interference ability, stable and reliable performance
  • Resistive touch screen, dust and oil resistant, sensitive touch
  • The performance of instrument and probe combinations can be tested automatically
  • Unique square wave excitation signal processing technology
  • Launch voltage, probe damping, pulse width, filter band adjustable. suitable for different materials, different thickness of the workpiece accurate detection
  • The background color and brightness can be freely adjusted to adapt to strong or low light environments to ensure a clear display
  • Full course, continuous, dynamic high-capacity recording of test echoes and data, support for data playback, through the U disk export
  • Built-in wifi, can realize the flaw detector and computer synchronization real-time display

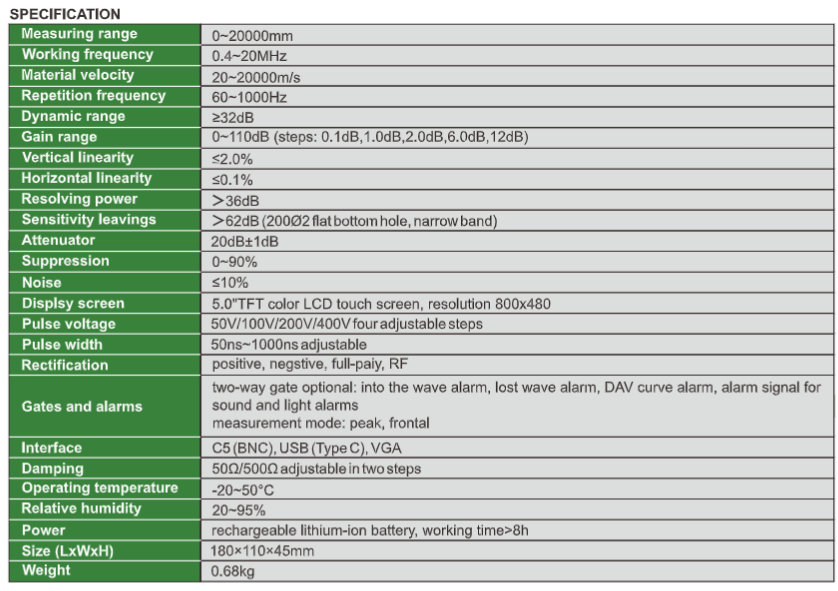

Measuring range 0~20000mm
Working frequency 0.4~20MHz
Material velocity 20~20000m/s
Repetition frequency 60~1000Hz
Dynamic range ≥32dB
Gain range 0~110dB (steps: 0.1dB,1.0dB,2.0dB,6.0dB,12dB)
Vertical linearity ≤2.0%
Horizontal linearity ≤0.1%
Resolving power >36dB
Sensitivity leavings >62dB (200Ω flat bottom hole, narrow band)
Attenuator 20dB±1dB
Suppression 0~90%
Noise ≤10%
Displsy screen 5.0"TFT color LCD touch screen, resolution 800x480
Pulse voltage 50V/100V/200V/400V four adjustable steps
Pulse width 50ns~1000ns adjustable
Rectification positive, negstive, full-paiy, RF
Gates and alarms two-way gate optional: into the wave alarm, lost wave alarm, DAV curve alarm, alarm signal for sound and light alarms measurement mode: peak, frontal
Interface C5 (BNC), USB (Type C), VGA
Damping 50Ω/500Ω adjustable in two steps
Operating temperature -20~50°C
Relative humidity 20~95%
Power rechargeable lithium-ion battery, working time>8h
Size (LxWxH) 180×110×45mm
Weight 0.68kg
