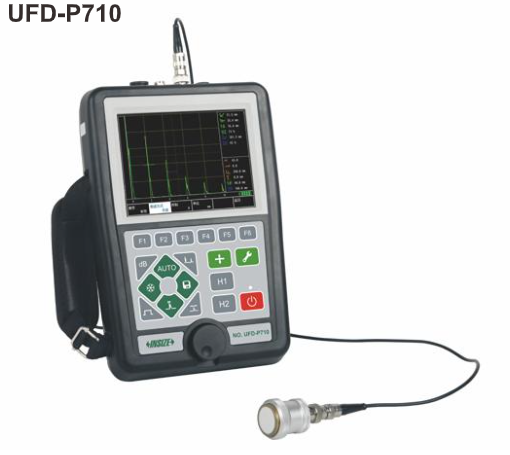

Digital Ultrasonic Flaw Detector (Advance Type) - UFD-P

Save 25%

Size: UFD-P710
Price:
Rs. 1,097,895 Rs. 1,460,200

Tax included Shipping calculated at checkout

Description

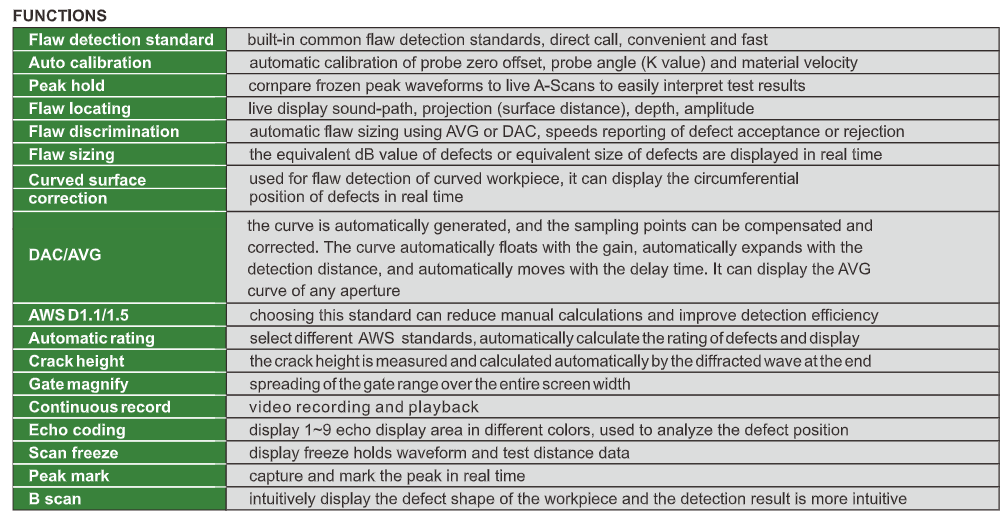

Features:-

  • With fast, accurate display and analysis of defective echo signals, a variety of weak signal changes and details can respond in a timely manner, the real-time echo signal and authenticity can be effectively guaranteed
  • For the detection of high attenuation materials or thick workpiece has excellent penetration and letter ratio; sharp wave excitation technology and adjustable pulse width, pulse voltage, emission anisotropic square wave technology in the detection of thin workpiece and composite materials have a high resolution
  • FIR digital filtering technology better signal-to-noise ratio; probe frequency harmonic analysis, can better analyze the probe performance information
  • Automatic calibration of material speed of sound, probe delay, probe K value; convenient DAC, AVG curve creation and application
  • USB HOST interface, can be connected to an external U disk to achieve data transfer; can be connected to an external WIFI module to achieve communication with other wireless devices
  • HDMI video output for flaw detection and teaching presentations
  • Ultra-large capacity storage space for continuous dynamic recording data storage

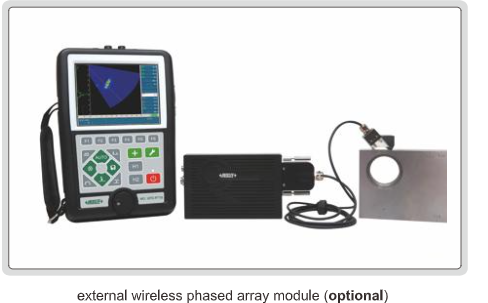

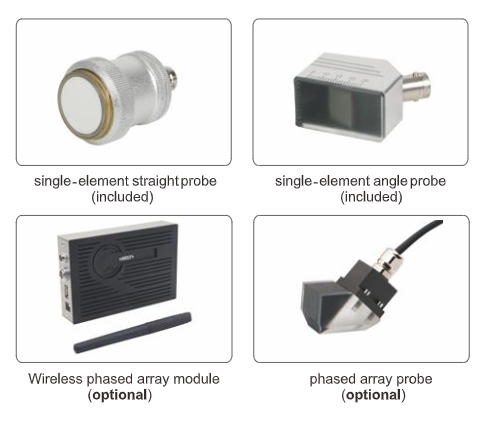

  • Wireless phased array module can be connected, so that the conventional ultrasonic flaw detector has the same detection function as phased array instrument

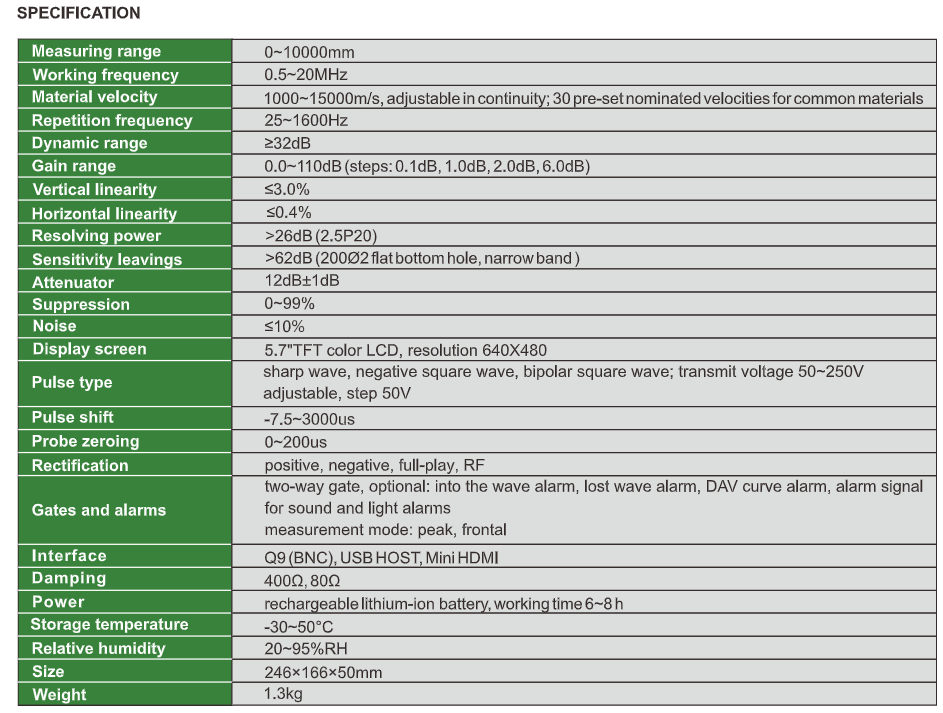

Measuring range 0~10000mm
Working frequency 0.5~20MHz
Material velocity 1000~15000m/s adjustable in continuity 30 pre-set nominated velocities for common materials
Repetition frequency 25~1600Hz
Dynamic range ≥32dB
Gain range 0.0~110dB (steps 0.1dB 1.0dB 2.0dB 6.0dB)
Vertical linearity ≤3.0%
Horizontal linearity ≤0.4%
Resolving power >26dB (2.5P20)
Sensitivity leavings >62dB (2000Ø2 flat bottom hole narrow band)
Attenuator 12dB±1dB
Suppression 0~99%
Noise ≤10%
Display screen 5.7"TFT color LCD resolution 640X480
Pulse type sharp wave negative square wave bipolar square wave transmit voltage 50~250V adjustable step 50V
Pulse shift -7.5~3000us
Probe zeroing 0~200us
Rectification positive negative full-play RF
Gates and alarms two-way gate optional into the wave alarm lost wave alarm DAV curve alarm alarm signal for sound and light alarms measurement mode peak frontal
Interface Q9 (BNC) USB HOST Mini HDMI
Damping 400Ω 80Ω
Power rechargeable lithium-ion battery working time 6~8h
Storage temperature -30~50°C
Relative humidity 20~95%RH
Size 246×166×50mm
Weight 1.3kg
