Digital Two Points/ Three Points Internal Micrometer (ZIGBEE)- 3113

Save 25%

Size: 3113-2WL (2-2.5mm)
Price:
Rs. 54,409 Rs. 72,549

Tax included Shipping calculated at checkout

Description

Features:-

  • Resolution 0.001mm/0.00005" (resolution of 3113-275WL and 3113-300WL is 0.001mm/0.0001")
  • IP65 Dust/waterproof
  • Buttons: on/off, set, mm/inch, data transmit
  • data output
  • Transmission distance is 10 meter (under the condition of no obstruction & no electromagnetic interference)
  • Automatic power off
  • Ratchet stop
  • Built in rechargeable lithium battery

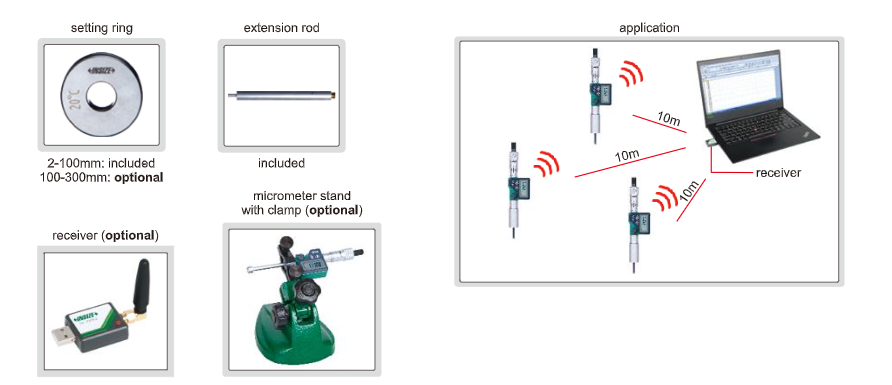

  • Optional accessory: receiver (code 7315-2/3/6/7/8/9), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2)
  • Inspection certificate traceable to DKD Lab Germany.

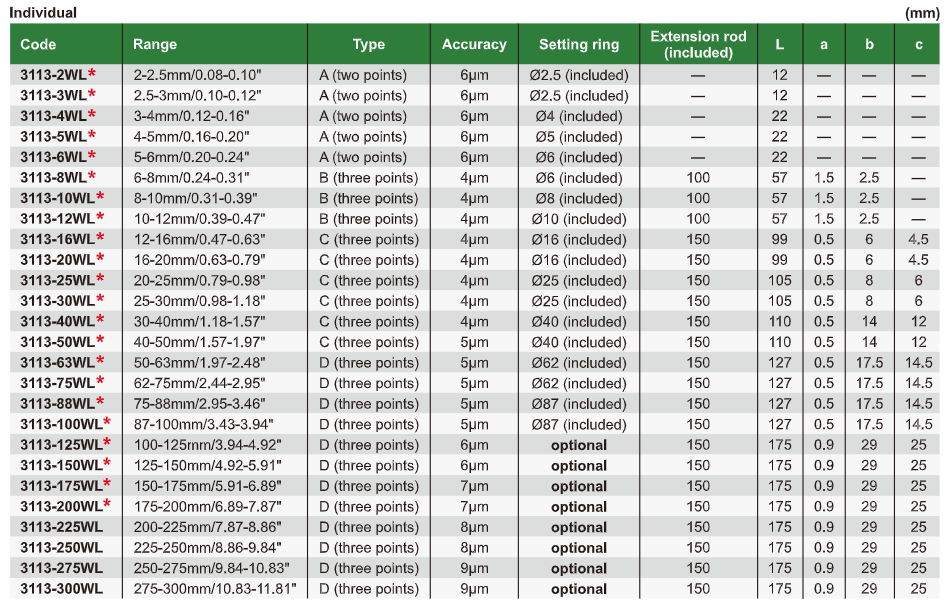

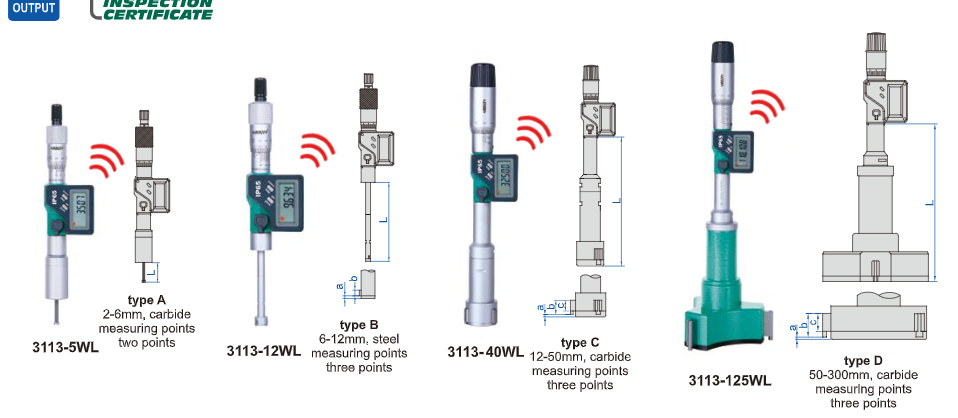

Code Range Type Accuracy Setting ring Extension rod (included) L a b c
3113-2WL 2-2.5mm/0.08-0.10" A (Two points) 6μm ⌀2.5 (included) ------------ 12 ----- ------ ------
3113-3WL 2.5-3mm/0.10-0.12" A (Two points) 6μm ⌀2.5 (included) ------------ 12 ------ ------ ------
3113-4WL 3-4mm/0.12-0.16" A (Two points) 6μm ⌀4 (included) ------------ 22 ----- ------ ------

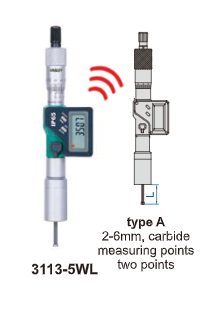

3113-5WL 4-5mm/0.16-0.20" A (Two points) 6μm ⌀5 (included) ------------ 22 ------- ------ ------
3113-6WL 5-6mm/0.20-0.24" A (Two points) 6μm ⌀6 (included) ------------ 22 ----- ------ ------
3113-8WL 6-8mm/0.24-0.31" B (Three points) 4μm ⌀6 (included) 100 57 1.5 2.5 ------
3113-10WL 8-10mm/0.31-0.39 B (Three points) 4μm ⌀8 (included) 100 57 1.5 2.5 ------
3113-12WL 10-12mm/0.39-0.47" B (Three points) 4μm ⌀10 (included) 100 57 1.5 2.5 ------
3113-16WL 12-16mm/0.47-0.63" C (Three points) 4μm ⌀16 (included) 150 99 0.5 6 4.5
3113-20WL 16-20mm/0.63-0.79" C (Three points) 4μm ⌀16 (included) 150 99 0.5 6 4.5
3113-25WL 20-25mm/0.79-0.98" C (Three points) 4μm ⌀25 (included) 150 105 0.5 8 6
3113-30WL 25-30mm/0.98-1.18" C (Three points) 4μm ⌀25 (included) 150 105 0.5 8 6
3113-40WL 30-40mm/1.18-1.57" C (Three points) 4μm ⌀40 (included) 150 110 0.5 14 12
3113-50WL 40-50mm/1.57-1.97" C (Three points) 5μm ⌀40 (included) 150 110 0.5 14 12
3113-63WL 50-63mm/1.97-2.48" D (Three points) 5μm ⌀62 (included) 150 127 0.5 17.5 14.5
3113-75WL 62-75mm/2.44-2.95" D (Three points) 5μm ⌀62 (included) 150 127 0.5 17.5 14.5
3113-88WL 75-88mm/2.95-3.46" D (Three points) 5μm ⌀87 (included) 150 127 0.5 17.5 14.5
3113-100WL 87-100mm/3.43-3.94" D (Three points) 5μm ⌀87 (included) 150 127 0.5 17.5 14.5
3113-125WL 100-125mm/3.94-4.92" D (Three points) 6μm Optional 150 175 0.9 29 25
3113-150WL 125-150mm/4.92-5.91" D (Three points) 6μm Optional 150 175 0.9 29 25
3113-175WL 150-175mm/5.91-6.89" D (Three points) 7μm Optional 150 175 0.9 29 25
3113-200WL 175-200mm/6.89-7.87" D (Three points) 7μm Optional 150 175 0.9 29 25
3113-225WL 200-225mm/7.87-8.86" D (Three points) 8μm Optional 150 175 0.9 29 25
3113-250WL 225-250mm/8.86-9.84" D (Three points) 8μm Optional 150 175 0.9 29 25
3113-275WL 250-275mm/9.84-10.83" D (Three points) 9μm Optional 150 175 0.9 29 25
3113-300WL 275-300mm/10.83-11.81" D (Three points) 9μm Optional 150 175 0.9 29 25
