Digital Screw Thread Micrometer - 3581-S25

Save 25%

Size: 3581-S25 (0-25mm)
Price:
Rs. 19,319 Rs. 25,699

Tax included Shipping calculated at checkout

Description

Features:-

  • Measure pitch diameter of screw threads
  • Resolutions 0.001mm/0.0005
  • Buttons function: on/off, set, mm/inch, data transmit
  • data output
  • Automatic power off
  • Non-rotating spindle
  • ratchet stop
  • supplied with 60 setting standards (expect 0-25mm/0-1")
  • 6 pairs of measuring tips (included): metric and unified thread (60 thread angle) 0.4-0.5mm/64-48TPI, 2-3mm/13-9TPI, 3.5-5mm/8-5TPI,5.5-7mm/4.5-3.5TPI
  • Optional accessory: 55 setting standards, data output cable (Code 7315-31,7302-30)

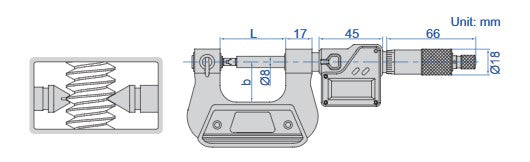

  • Code  Range L b Measuring tips (included) 55* Setting standard (optional)
    3581-S25 0-25mm/0-1" 42 26 6 pairs of measuring tips: metric and unified thread
    (60 thread angle )
    0.4-0.5mm/64-48TPI, 0.6-0.9mm/44-28TPI, 1-1.75mm/24-14TPI, 2-3mm/13-9TPI,
    3.5-5mm/8-5TPI,
    5.5-7mm/4.5-3.5TPI
         -------
    3581-S50 25-50mm/1-2" 67 38 3281-SP1
    3581-S75 50-75mm/2-3" 92 50 3281-SP2
    3581-S100 75-100mm/3-4" 117.6 62 3281-SP3
