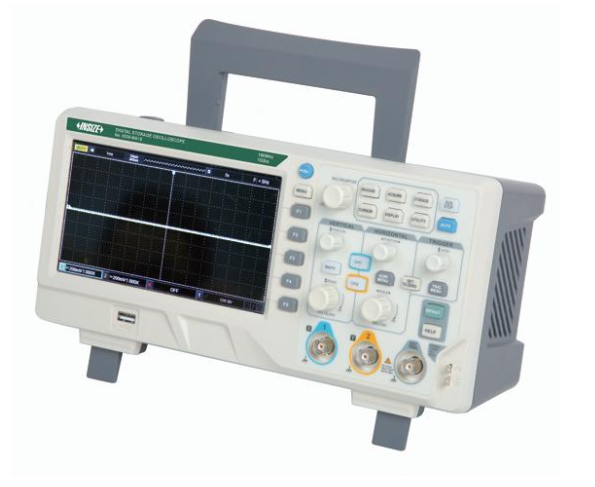

Digital Oscilloscope - 9530

Save 25%

Size: 9530-WA10
Price:
Rs. 39,820 Rs. 52,959

Tax included Shipping calculated at checkout

Description

Specification:-

  • Analogue bandwidth: 100MHz
  • Memory depth: 64kpts
  • Sampling rate per channel: 1GSars (non-interleaved mode)
  • Waveform capture rate: 5,000wfms/s
  • Automatic measurement of multiple waveform parameters
  • Multiple frequency standard square waves can be output: 10Hz, 100Hz, 1kHz, 10kHz
  • Sampling mode: real-time sampling and equivalent sampling
  • Lissajous method: measuring the phase of a waveform

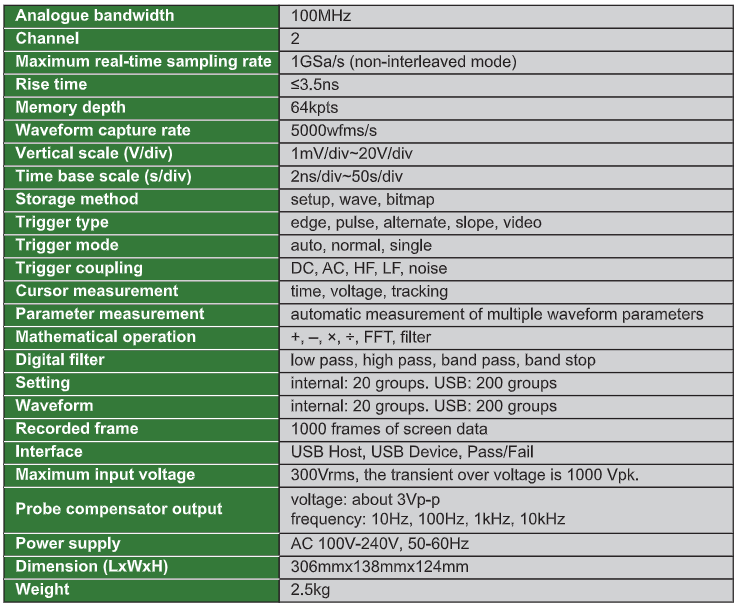

Analogue bandwidth 100MHz
Channel 2
Maximum real-time sampling rate 1GSa/s (non-interleaved mode)
Rise time ≤3.5ns
Memory depth 64kpts
Waveform capture rate 5000wfms/s
Vertical scale (V/div) 1mV/div~20V/div
Time base scale (s/div) 2ns/div~50s/div
Storage method setup wave bitmap
Trigger type edge pulse alternate slope video
Trigger mode auto normal single
Trigger coupling DC AC HF LF noise
Cursor measurement time voltage tracking
Parameter measurement automatic measurement of multiple waveform parameters
Mathematical operation + - x ÷ FFT filter
Digital filter low pass high pass band pass band stop
Setting internal 20 groups USB 200 groups
Waveform internal 20 groups USB 200 groups
Recorded frame 1000 frames of screen data
Interface USB Host USB Device Pass/Fail
Maximum input voltage 300Vrms the transient over voltage is 1000 Vpk
Probe compensator output voltage about 3Vp-p frequency 10Hz 100Hz 1kHz 10kHz
Power supply AC 100V-240V 50-60Hz
Dimension (LxWxH) 306mmx138mmx124mm
Weight 2.5kg
