Digital Multimeter (With Jack Indicator) - 9246-180

Save 25%

Size: 9246-180
Price:
Rs. 3,099 Rs. 4,120

Tax included Shipping calculated at checkout

Description

Features:-

  • Automatically identify test mode for AC voltage/DC voltage/resistance/continuity
  • Non-connection AC voltage detection, and judge the strength by light and buzzer
  • Self-calibration when power on to ensure accuracy
  • LIVE firewire recognition
  • Display with backlight
  • True RMS measurement
  • Data hold
  • Low battery indication Auto power off
  • Safety rating: CAT III 600V
    Code 9246-180

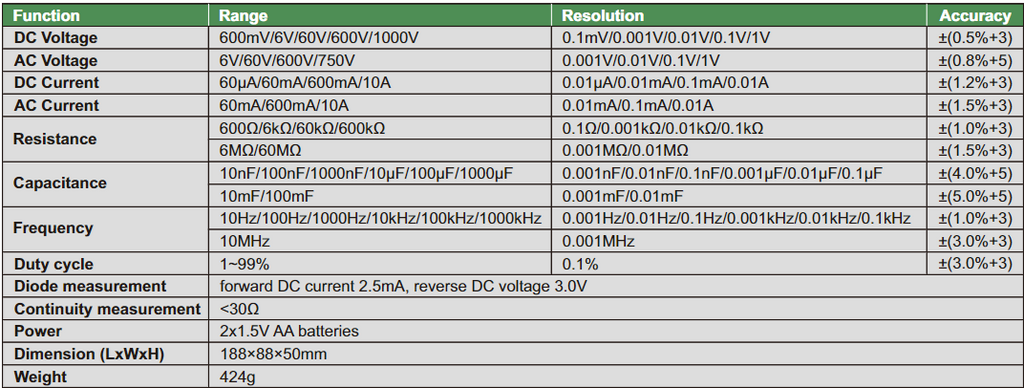

    Function Range Resolution Accuracy
    DC voltage 600mv/6V/60V/600V/1000V 0.1mV/0.001V/0.01V/0.1V/1V (0.5%+3)
    AC voltage 6V/60V/600V/750V 0.001V/0.01V/0.1V/1V (0.8%+5)
    DC Current 60μA/60mA/600mA/10A 0.01μA/0.01mA/0.1mA/0.01A (1.2%+3)
    AC current 60mA/600mA/10A 0.01mA/0.1mA/0.01A (1.5%+3)
    Resistance 600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.01kΩ/0.01kΩ/0.1kΩ (1.0%+3)
    6MΩ/60MΩ 0.001MΩ/0.01MΩ (1.5%+3)
    Capacitance 10nF/100nF/1000nF/10μF/100μF/1000μF 0.001nF/0.01nF/0.1nF/0.001μF/0.01μF/0.1μF (4.0%+5)
    10mF/100mF 0.001mF/0.01mF (5.0%+5)
    Frequency 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz 0.001Hz/0.01Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz (1.0%+3)
    10MHz 0.0001MHz (3.0%+3)
    Duty cycle 1~99% 0.10% (3.0%+3)
    Diode Measurement forward DC current 2.5mA, reverse DC voltage 3.0V
    Continuity Duty <30Ω
    Power 2x1.5V AA batteries
    Dimension (LxWxH) 188x88x50mm
    Weight 424g
