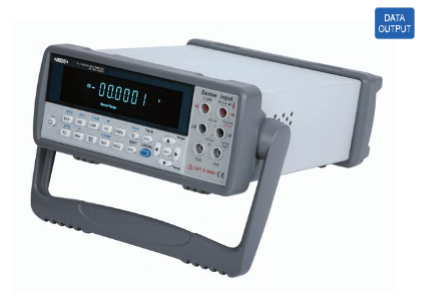

Digital Multimeter (Basic Type) - 9231

Save 25%

Size: 9231-H610
Price:
Rs. 97,740 Rs. 129,995

Tax included Shipping calculated at checkout

Description

Specification:-

  • 6½ digits resolution
  • Minimum integral time: 0.125PLC
  • Upper and lower limit alarm
  • Can store 10000 sets of data

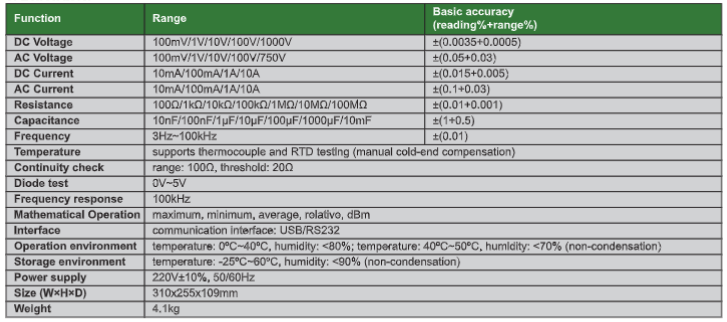

Function Range Basic accuracy (reading%+range%)
DC Voltage 100mV/1V/10V/100V/1000V ±(0.0035+0.0005)
AC Voltage 100mV/1V/10V/100V/750V ±(0.05+0.03)
DC Current 10mA/100mA/1A/10A ±(0.015+0.005)
AC Current 10mA/100mA/1A/10A ±(0.1+0.03)
Resistance 100Ω/1kΩ/10kΩ/100kΩ/1MΩ/10MΩ/100MΩ ±(0.01+0.001)
Capacitance 10nF/100nF/1µF/10µF/100µF/1000µF/10mF ±(1+0.5)
Frequency 3Hz~100kHz ±(0.01)
Temperature supports thermocouple and RTD testing (manual cold-end compensation)
Continuity check range: 100Ω, threshold: 20Ω
Diode test 0V-5V
Frequency response 100kHz
Mathematical Operation maximum, minimum, average, relative, dBm
Interface communication interface: USB/RS232
Operation environment temperature: 0°C~40°C, humidity: <80%; temperature: 40°C~50°C, humidity: <70% (non-condensation)
Storage environment temperature: -25°C~60°C, humidity: <90% (non-condensation)
Power supply 220V±10%, 50/60Hz
Size (W×H×D) 310x255x109mm
Weight 4.1kg
