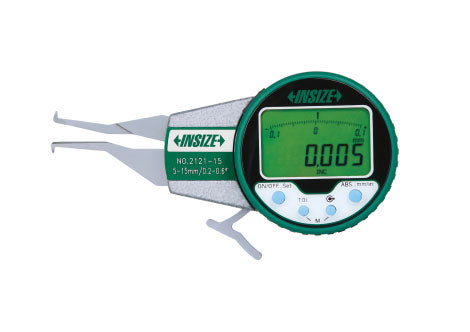

Digital Internal Caliper Gages- 2121

Save 25%

Size: 2121-15 (5-15mm)
Price:
Rs. 11,120 Rs. 14,789

Tax included Shipping calculated at checkout

Description

Features:-

  • Resolution: 0.005mm/0.0002"
  • Reading in digit and analog
  • Display can be rotated by 170°
  • Button function: tolerance Go and No-Go display, data preset, max./min. measurement, data holding, inch/metric conversion, absolute/incremental measurement
  • CR2032 battery, automatic power off
  • Data output

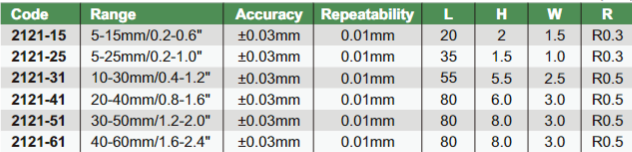

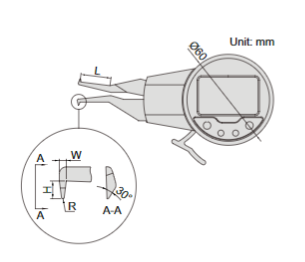

Code Range Accuracy Repeatability L H W R
2121-15 5-15mm/0.2-0.6" +0.03mm 0.01mm 20 2 1.5 R0.3
2121-25 5-25mm/0.2-1.0" +0.03mm 0.01mm 35 1.5 1 R0.4
2121-31 10-30mm/0.4-1.2" +0.03mm 0.01mm 55 5.5 2.5 R0.5mm
2121-41 20-40mm/0.8-1.6" +0.03mm 0.01mm 80 6.0 3 R0.5mm
2121-51 30-50mm/1.2-2.0" +0.03mm 0.01mm 80 8.0 3 R0.5mm
2121-61 40-60mm/1.6-2.4" +0.03mm 0.01mm 80 8.0 3 R0.5mm
